| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Neutral or Local |
| Model Number: | LB13145/3 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Neutral Packaging / Customized |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T |
| Compressor Type: | Screw Compressors | Category: | Spin On |
|---|---|---|---|
| Filtration Type: | Coalescing Filter | Material: | H&V Fiberglass |
| Residual Oil: | 1-3mg/m3 | Working Temperature: | <120℃ |
| Pressure Drop: | 0.2-0.25bar | Nominal Flow: | 2m3/min |
| Service Life: | 3000-4000h | Compatibility: | Sullair L 45 SR |
| High Light: | 2m3/Min Sullair Oil Separator,Multipurpose Sullair Oil Separator,LB13145 |
||

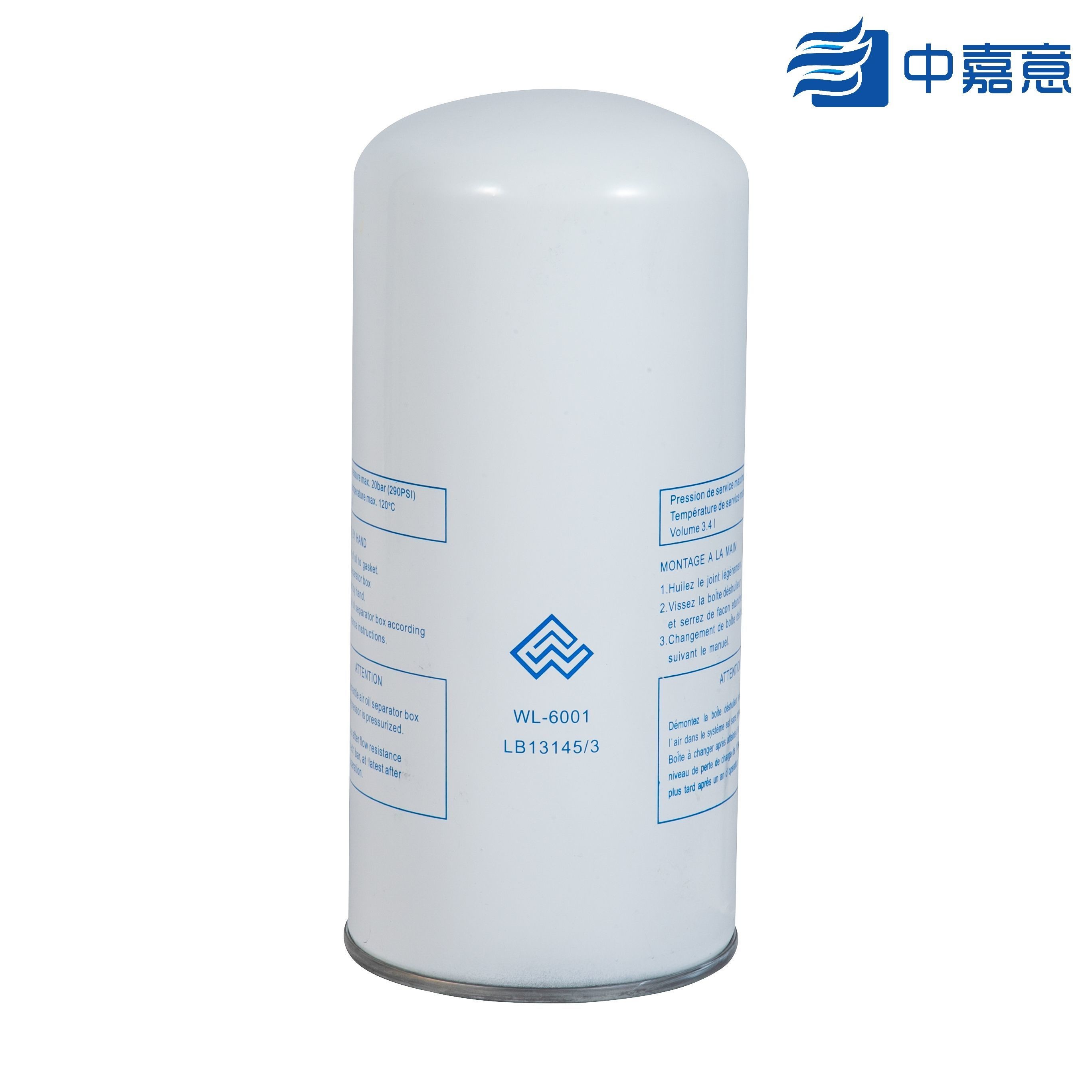

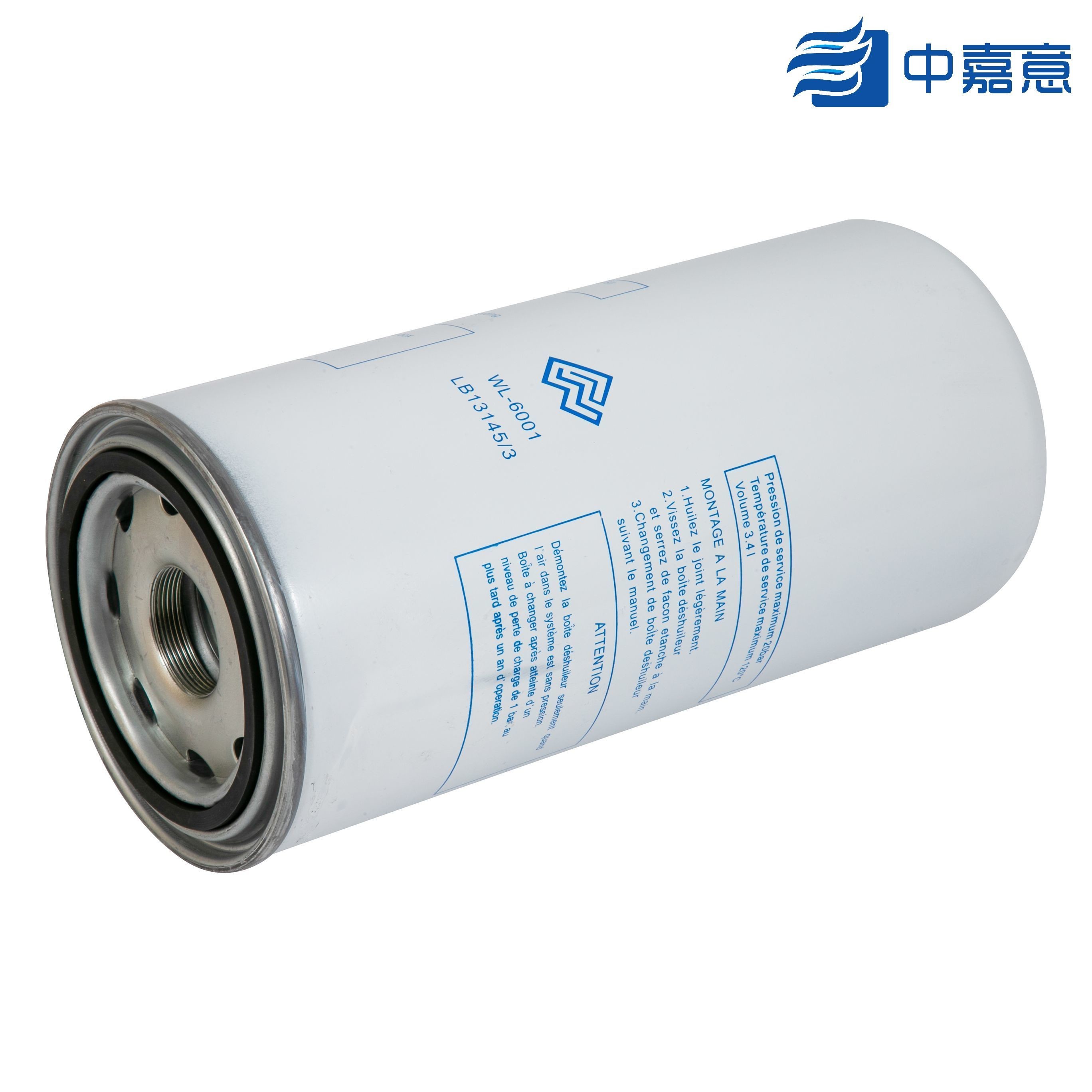

LB13145/3 Air/Oil Separator for Sullair L45 SR Rotary Screw Compressor
The Air/Oil Gas Separator is a critical part of the Air Screw Compressor to ensure accurate performance of both the machine tool and production output.
Our direct replacement of the LB13145/3 Spin-on oil gas separator is manufactured with high-quality H&V fiberglass media and specific engineering processes, all parts undergo stringent quality control by experienced technicians and engineers.
This extends the service life and lowers your maintenance frequency and labor costs.
| Flow Rate (m3/min) |
D (mm) |
D1 (mm) |
D2 (mm) |
H (mm) |
Thread |
| 5.5 | 136 | 111 | 100 | 302 |
M39 x 1.75 |
| OE Brand | MANN |
| OE No. | LB13145/3 |
| Compatibility | QUINCY RVK 25; MAHLE MSKG 45, CSC 90 |
