| Place of Origin: | China |
|---|---|
| Brand Name: | Local Brand |
| Certification: | ISO9001 |
| Model Number: | Pleated Filter Element |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | carton and bubble pack |
| Delivery Time: | 10 working days |
| Supply Ability: | 100000pcs |
| Model NO.: | Pleated Filter Element | Frame: | Aluminum Sheet, Galvanized Steel Sheet, ABS |
|---|---|---|---|
| Separator: | Hot Melt | Media: | Glass Fiber |
| Efficiency: | H13,H14,U15 | Recommended Final Pressure: | 600Pa |
| Filtration Grade: | HEPA Filter | Type: | Panel Filter |
| High Light: | MDF Pleated Filter Element,Lightweight Pleated Filter Element,Aluminum Glass Fiber HEPA Filter |
||

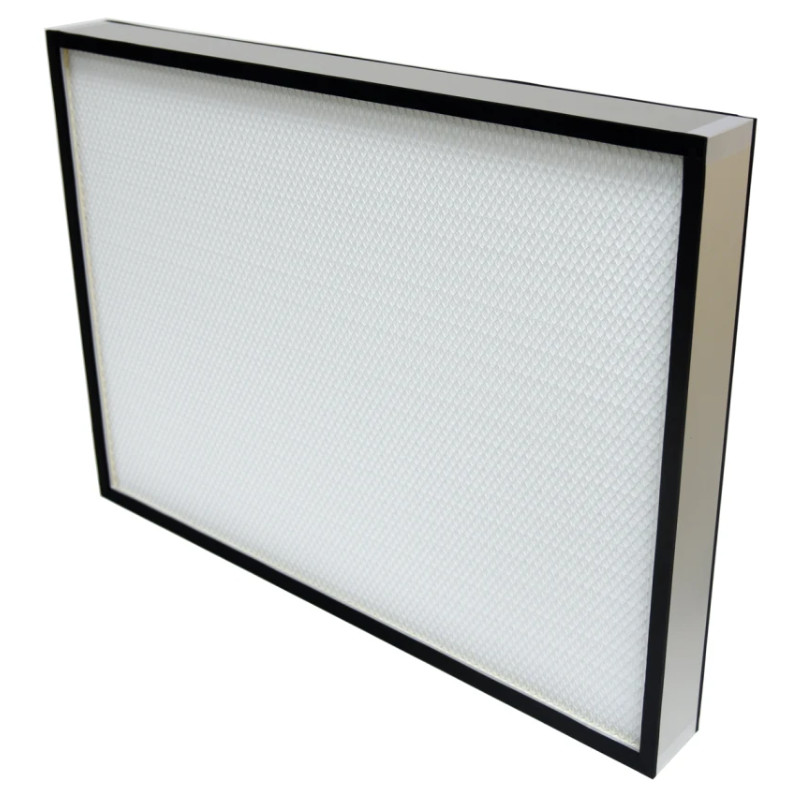

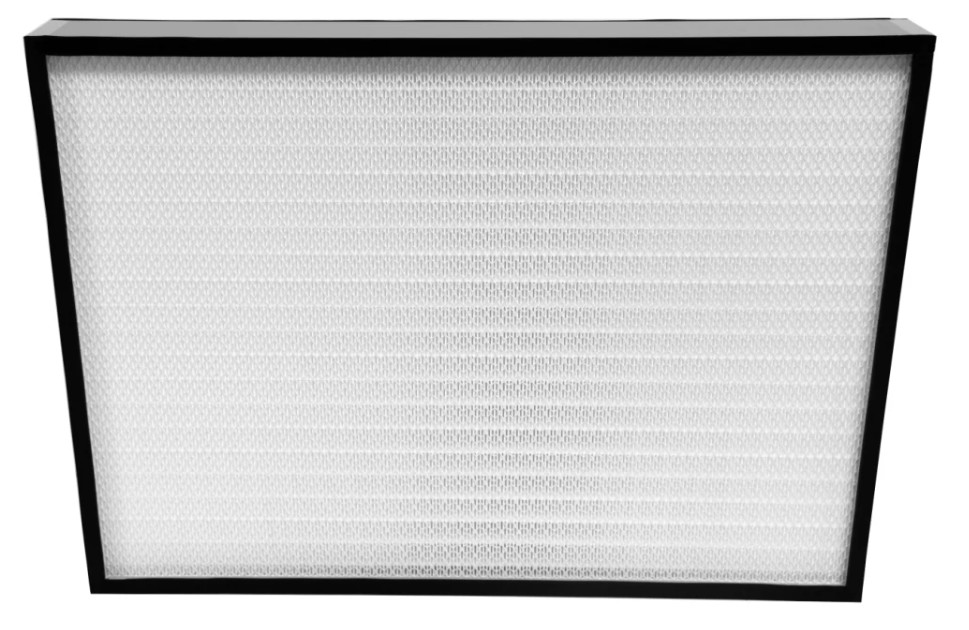

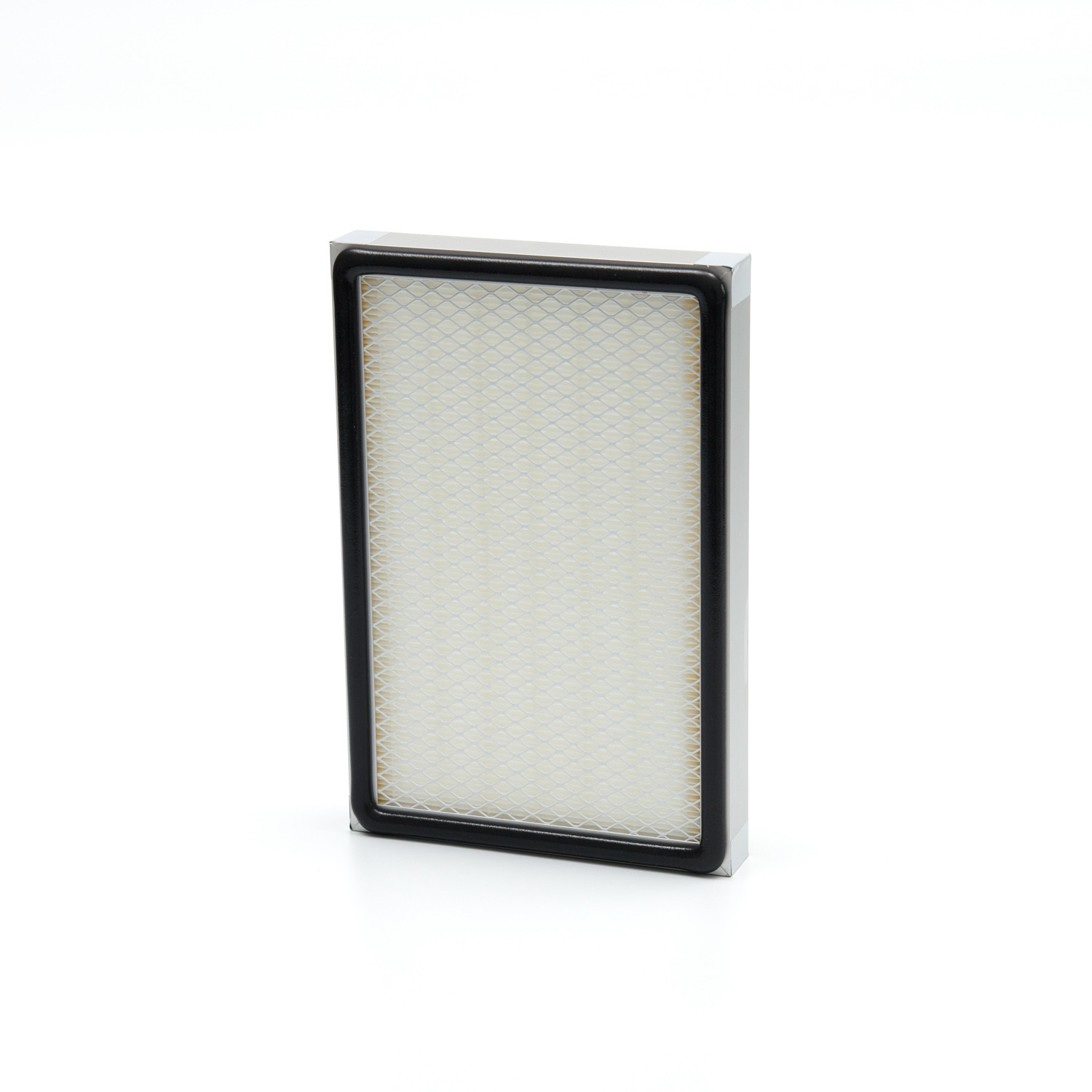

Pleated Filter Element with Media Support Grid for Clean Room and Operating Room Filters Glass Fiber FFU Air Filter
Description:
HEPA filter is designed to meet the required air flow and particle control requirements in the clean room, providing a knife edge suitable for any ceiling type or gasket type frame, all non-partition filter can be customized to meet the requirements of a variety of applications to the maximum. No partition filter for a variety of clean room, clean bench, clean pharmaceutical factory, biological plant, food processing plant and any other need to strictly control the air pollution.
| Frame | Anodized aluminum; Stainless steel; MDF |
| Medium | Micro glass-fiber |
| Gasket | Dove-tailed EPDM; Endless PU foam |
| Max.working temperature | 80ºC |
Standard specifications:
| Size | Efficiency | Airflow/Initial Pressure | Area |
| (W*H*D)mm | EN1822 | m³/h/Pa(±15%) | m² |
| 610*610*50 | H13 | 603/130 | 8.11 |
| 1170*1170*50 | H13 | 2218/125 | 29.72 |
| 1170*570*50 | H13 | 1080/130 | 14.83 |
| 610*610*70 | H13 | 603/110 | 10.97 |
| 1170*1170*70 | H13 | 2218/105 | 41.78 |
| 1170*570*70 | H13 | 1080*110 | 20.08 |
| 610*610*90 | H13 | 603/85 | 13.48 |
| 1170*1170*90 | H13 | 2218/80 | 50.12 |
| 1170*570*90 | H13 | 1080/85 | 25.92 |
| 610*610*50 | H14 | 603/140 | 8.11 |
| 1170*1170*50 | H14 | 2218/135 | 29.72 |
| 1170*570*50 | H14 | 1080/140 | 14.83 |
| 610*610*70 | H14 | 603/120 | 10.97 |
| 1170*1170*70 | H14 | 2218/115 | 41.78 |
| 1170*570*70 | H14 | 1080/120 | 20.08 |
| 610*610*90 | H14 | 603/95 | 13.48 |
| 1170*1170*90 | H14 | 2218/90 | 50.12 |
| 1170*570*90 | H14 | 1080/95 | 25.92 |
Features:·
1. Unique seamless sealing technology, better sealing effect, more durable, not easy to leak.
2. Small size, light weight. Anodized aluminum alloy frame material is used to facilitate handling and installation.
3. Can provide 50mm 70mm 90mm and other various thickness.
4. The maximum efficiency of capturing 0.3 micron particles of MPPS by the laser scanning count is up to 99.995% (EN1822).
Application
Transportation
