Anticorrosive YT-36Z-31 Wire Cut EDM Filter , Fanuc H341390 EDM Oil Filter

Basic Information
Place of Origin: CHINA
Brand Name: TAGUTI
Model Number: YT-36Z-31 or YT-36Z-G3/4
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 2pcs per carton
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Detail Information
Type: EDM Water Filter Material: Local Or H&V Paper

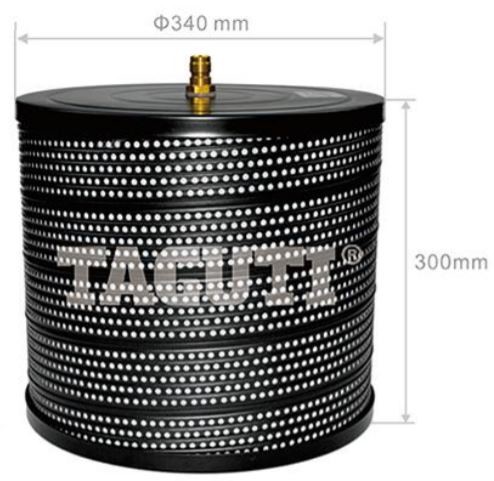

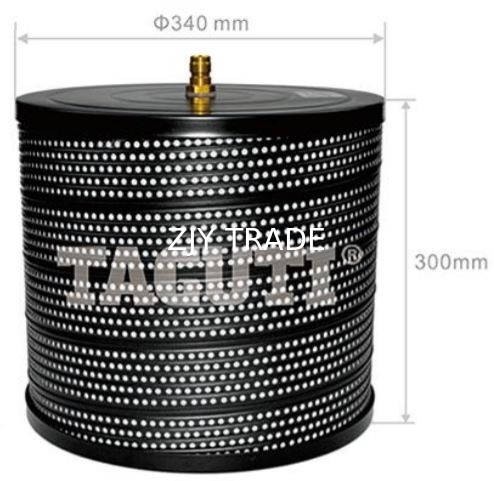

Dimension: φ340*300mm Connection System: φ31mm Central Nipple
Flow Direction: Inside To Outside Filter Fineness: 3-5μm Or 5-7μm
Pleats Way: Macro Pleats Net Weight: 6.70kg
Recommended Max Pressure: 198kpa (2.0kgf/cm2) Instant Limit Working Pressure: 296kpa (3.0kgf/cm2)
High Light:

Anticorrosive Wire Cut EDM Filter


YT-36Z-31 Wire Cut EDM Filter


H341390 EDM Oil Filter

Product Description

 YT-36Z-31 EDM Water Filter for Fanuc H341390 Slow Wire Cutting


Product Description:


During the electrical discharge machining process, it is fundamental to have clean dielectric fluid in order to maintain the metal removal rate as well as the machined part quality.

Without proper filtration, overtime particulates can deposit themselves and accumulate onto other important parts of the machine, long term maintenance problems will be requested.



Cross Reference:


Reference Number
  • 04.01.652, 04.01.720, 04.01.728, 04.04.005
  • S642D854P13
  • H 341390,H 341380
  • 951100062, 951100066
  • Z476L0010020
  • A99L-0107-0007/6-A, A99L-0107-0007#6-A
Applicable Machine Fanuc α-0iB with AWF, Fanuc α-0iB without AWF, Fanuc α-0iC with AWF, Fanuc α-0iC without AWF, Fanuc α-0iD with AWF, Fanuc α-0iD without AWF, Fanuc α-0iE with AWF, Fanuc α-1iB with AWF, Fanuc α-1iB without AWF, Fanuc α-1iC with AWF, Fanuc α-1iC without AWF, Fanuc α-1iD P, Fanuc α-1iD with AWF, Fanuc α-1iD without AWF, Fanuc α-1iE with AWF, Fanuc α-C400iA with AWF, Fanuc α-C400iA without AWF, Fanuc α-C600iA with AWF, Fanuc α-C600iA without AWF


Detailed Pictures:

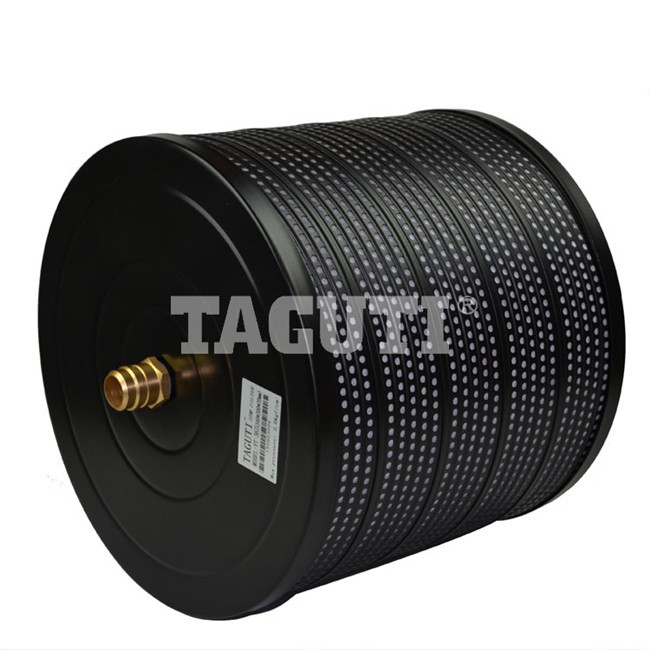

 Anticorrosive YT-36Z-31 Wire Cut EDM Filter , Fanuc H341390 EDM Oil Filter 0Anticorrosive YT-36Z-31 Wire Cut EDM Filter , Fanuc H341390 EDM Oil Filter 1
