Single Bellow EDM Water Filter YT-25N For Agie Charmilles Fanuc Sodick DHF-25A DW-25N

Basic Information
Place of Origin: CHINA
Brand Name: TAGUTI
Model Number: YT-25N
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 2pcs per carton
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Detail Information
Type: EDM Water Filter Material: Local Or H&V Paper

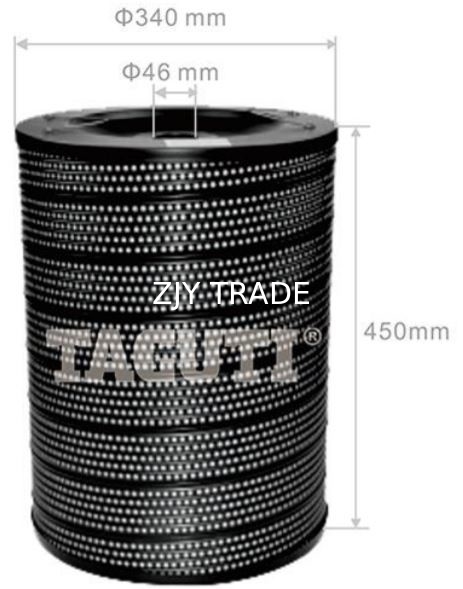

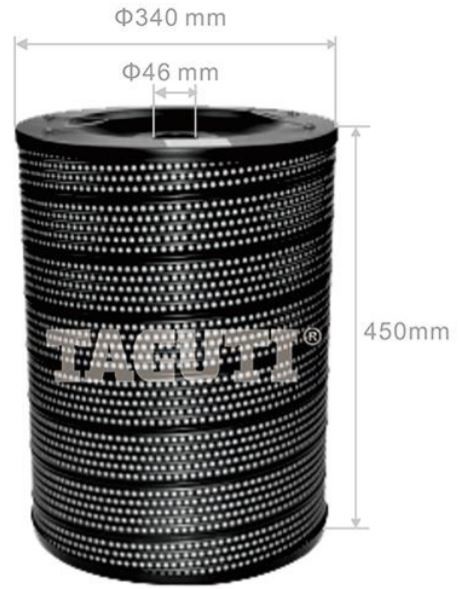

Dimensions: φ340*46*450mm Connection System: Without Connection Nipple
Flow Direction: Inside To Outside Filter Fineness: 3-5μm Or 5-7μm
Pleats Way: Single Bellow Net Weight: 6.30kg
Recommended Max Pressure: 198kpa (2.0kgf/cm2) Instant Limit Working Pressure: 296kpa (3.0kgf/cm2)
High Light:

Single Bellow EDM Water Filter


YT-25N EDM Water Filter


DHF-25A Filter EDM

Product Description

YT-25N EDM Water Filter for Agie Charmilles Fanuc Sodick DHF-25A DW-25N​


Product Description:


During the electrical discharge machining process, it is fundamental to have clean dielectric fluid in order to maintain the metal removal rate as well as the machined part quality.

Without proper filtration, overtime particulates can deposit themselves and accumulate onto other important parts of the machine, long term maintenance problems will be requested.



Cross Reference:


Reference Number

04.01.210, 04.01.211, 04.01.215, 04.01.486, 04.01.487, 04.01.712, 04.04.001


H34 1158/2, H34 1158/3, H34 1158/5, H34 1158/8, H34 1158/20, H34 1790, H341790/2, H341790/3


2060136, 2063284, 2060554, 2064736



Applicable Machine

For Agie Charmilles

AGIE CUT (100D, 150, 200D, 250, 300D)
Evolution(2, 3), DEM(215, 250, 315, 700)

Charmilles FI 230 F, Charmilles FI 240, Charmilles FI 240 CC, Charmilles FI 240 CCS, Charmilles FI 390, Charmilles FI 440, Charmilles FI 440 CC, Charmilles FI 440 CCS, Charmilles FI 640 CC, Charmilles FI 640 CCS, Charmilles FI 690,

Applicable Machine

For Fanuc

Fanuc O, Fanuc P, Fanuc Q, Fanuc R, Fanuc S, Fanuc T, Fanuc V, Fanuc W0, Fanuc W1 with AWF, Fanuc W1 without AWF, Fanuc W2 with AWF, Fanuc W2 without AWF, Fanuc W3 with AWF, Fanuc W3 without AWF, Fanuc W4 with AWF, Fanuc W4 without AWF, Fanuc α-0A with AWF, Fanuc α-0A without AWF, Fanuc α-0B with AWF, Fanuc α-0B without AWF, Fanuc α-0C with AWF, Fanuc α-0C without AWF, Fanuc α-0iA with AWF, Fanuc α-1A with AWF, Fanuc α-1A without AWF, Fanuc α-1B with AWF, Fanuc α-1B without AWF, Fanuc α-1C with AWF, Fanuc α-1C without AWF, Fanuc α-1iA with AWF


Applicable Machine

For Sodick

Sodick A300, Sodick A300W, Sodick A320, Sodick A350, Sodick A350W, Sodick A500, Sodick A500W, Sodick A530D, Sodick A600, Sodick A600W, Sodick A750, Sodick A750W, Sodick AQ325L, Sodick AQ327L, Sodick AQ535L, Sodick AQ550L, Sodick AQ600, Sodick AQ750L, Sodick AQ900L, Sodick BF250, Sodick BF275, Sodick BF280, Sodick BF280L

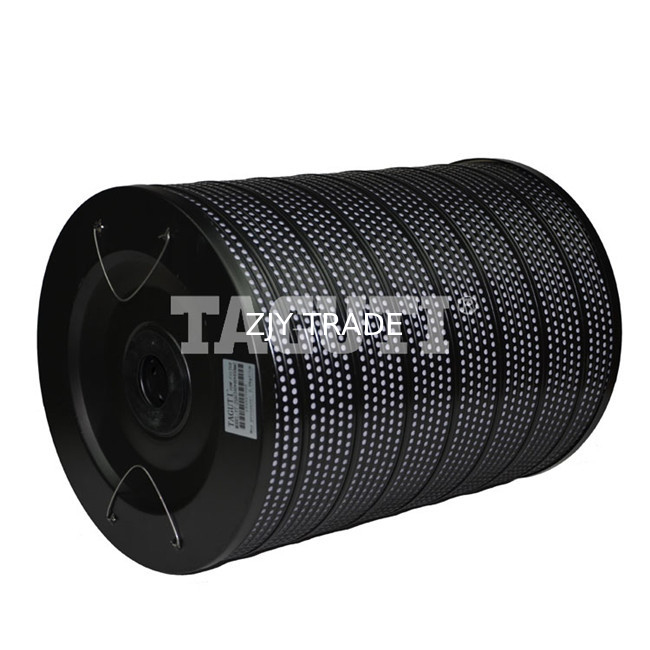

Detailed Pictures:


Single Bellow EDM Water Filter YT-25N For Agie Charmilles Fanuc Sodick DHF-25A DW-25N 0Single Bellow EDM Water Filter YT-25N For Agie Charmilles Fanuc Sodick DHF-25A DW-25N 1
