| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TAGUTI |
| Model Number: | YT-38 |
| Minimum Order Quantity: | Negotiable |
| Payment Terms: | L/C, T/T |

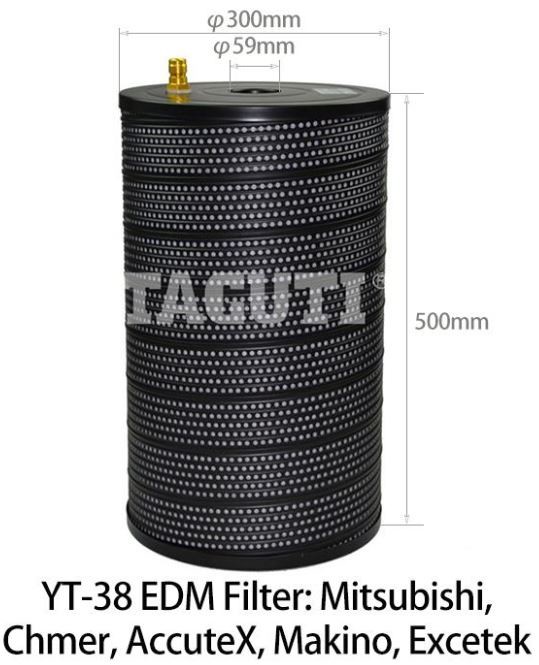

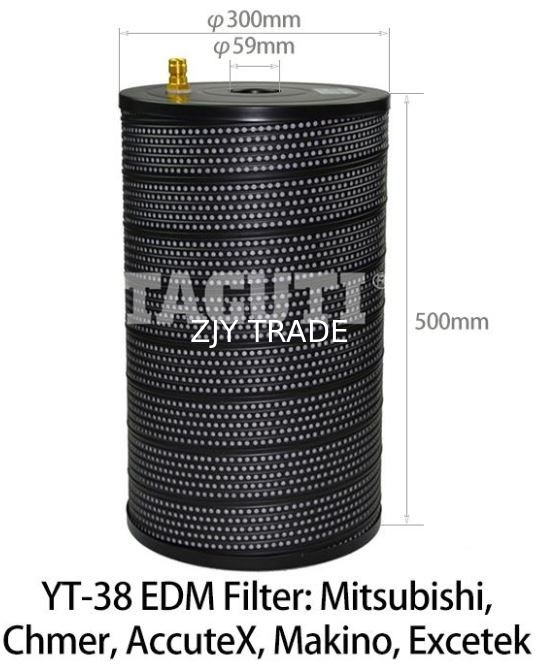

| Reference: | SW-40 | Dimension: | φ300*φ59*500mm |
|---|---|---|---|
| Connection System: | φ20mm Side Nipple | Flow Direction: | Dual Flow |
| Filter Fineness: | 3-5μm Or 5-7μm | Filter Medium: | H&V Cellulose |
| Pleats Way: | Double Bellow | Weight: | 6.80kg |
| Recommended Max Pressure: | 198kpa (2.0kgf/cm2) | Instant Limit Working Pressure: | 296kpa (3.0kgf/cm2) |
| High Light: | Side Nipple Wire EDM Filters,Fiberglass Wire EDM Filters,TW-40 EDM Filter Replacement |
||

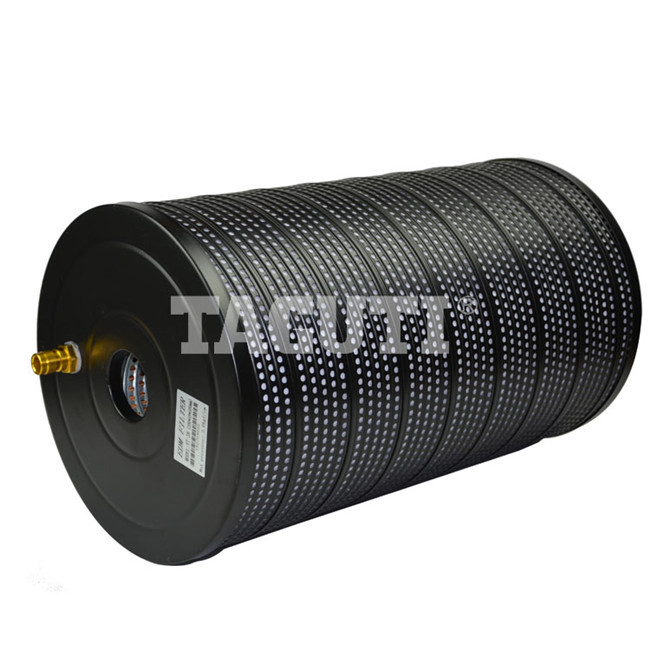

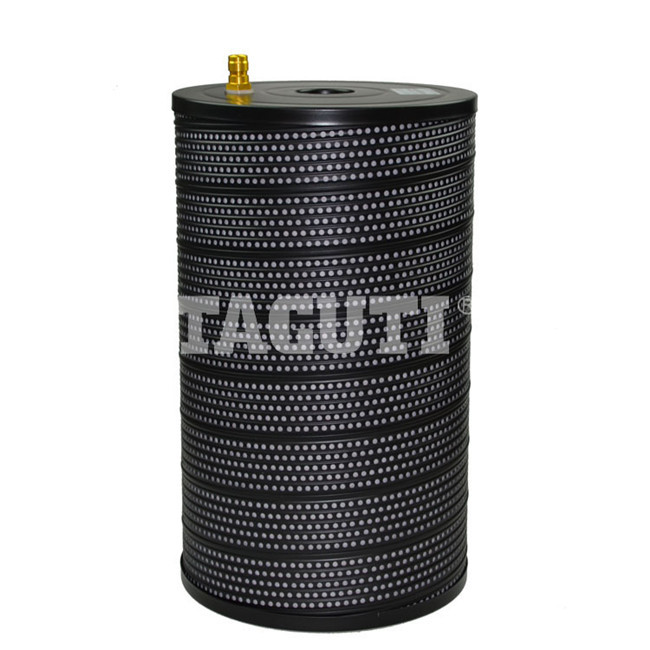

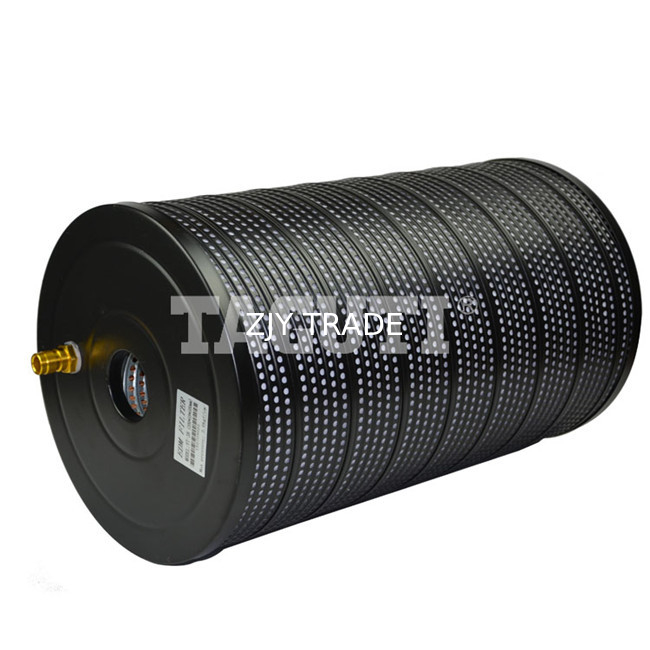

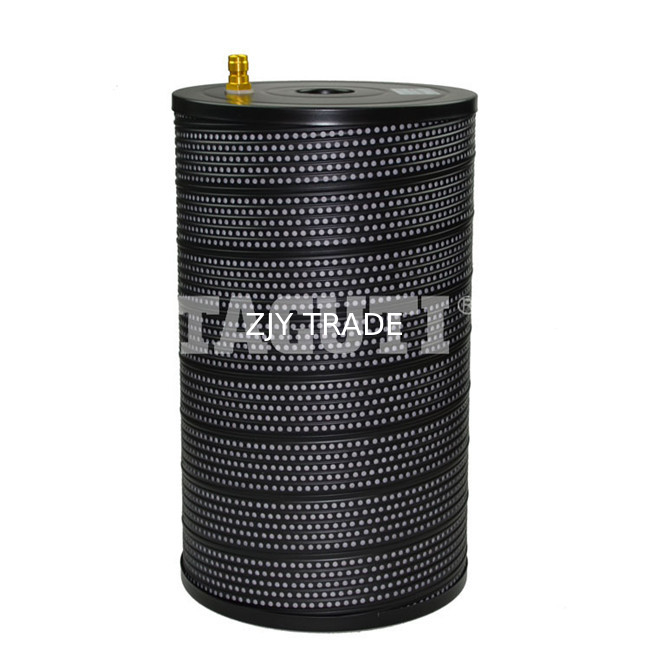

YT-38 / TW-40 Side Nipple EDM Water Filter Replacement for Low-Speed Wire Cutting
Replacement Applicable for Mitsubishi Makino Seibu Chmer Accutex
| Reference Number |
|
|
Applicable Machine For Mitsubishi |
Mitsubishi DWCXXX-SA, Mitsubishi DWCXXX-SB, Mitsubishi DWCXXX-SZ, Mitsubishi DWCXXX-Z, Mitsubishi PA20 |
|
Applicable Machine For Makino |
Makino EC32, Makino EC64, Makino ECQ53, Makino EE3, Makino EE6, Makino EE6L, Makino EE8, Makino EH3, Makino EH6, Makino EQ5, Makino EQF5, Makino EQH5, Makino MU43, Makino MUQ32 |
|
Applicable Machine For Seibu |
Seibu A Series EW(A5,A5S,A7S), Seibu EW-C3, Seibu EWP-B3S / K2 Series Seibu EW-300K2, Seibu EW-450K2, Seibu EW-600K2, Seibu EW-700K2, Seibu EW-1000K2 |
|
Applicable Machine For Chmer Accutex |
Chmer series ACCutex series |
