| Place of Origin: | CHINA |
|---|---|
| Certification: | ISO |
| Model Number: | DD17 |
| Filtration Fineness: | 1 Micron | Residual Oil: | 0.01 Ppm |
|---|---|---|---|
| Flow Rate: | 1 NM3/min | Material: | H&V Fiberglass |
| High Light: | 1 Micron Compressed Air Coalescing Filter,0.1ppm Compressed Air Coalescing Filter,Atlas Copco Coalescing Filter Element |
||

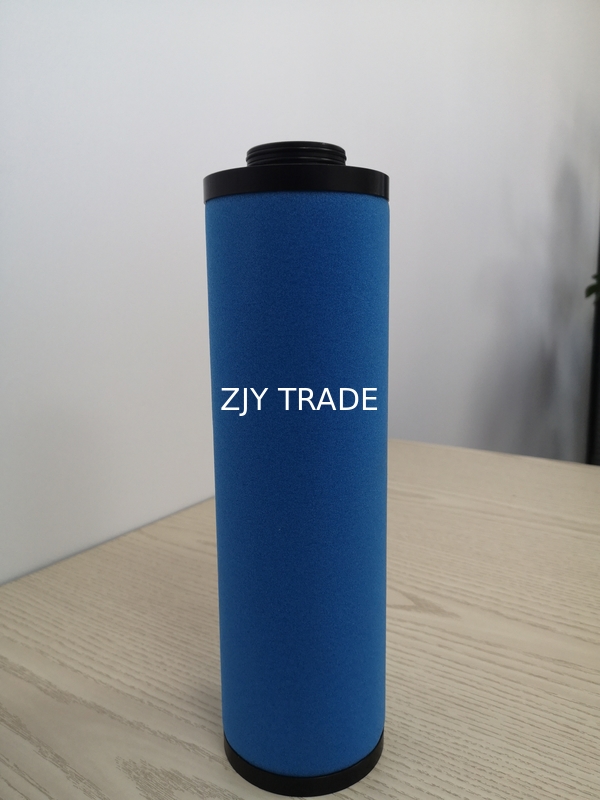

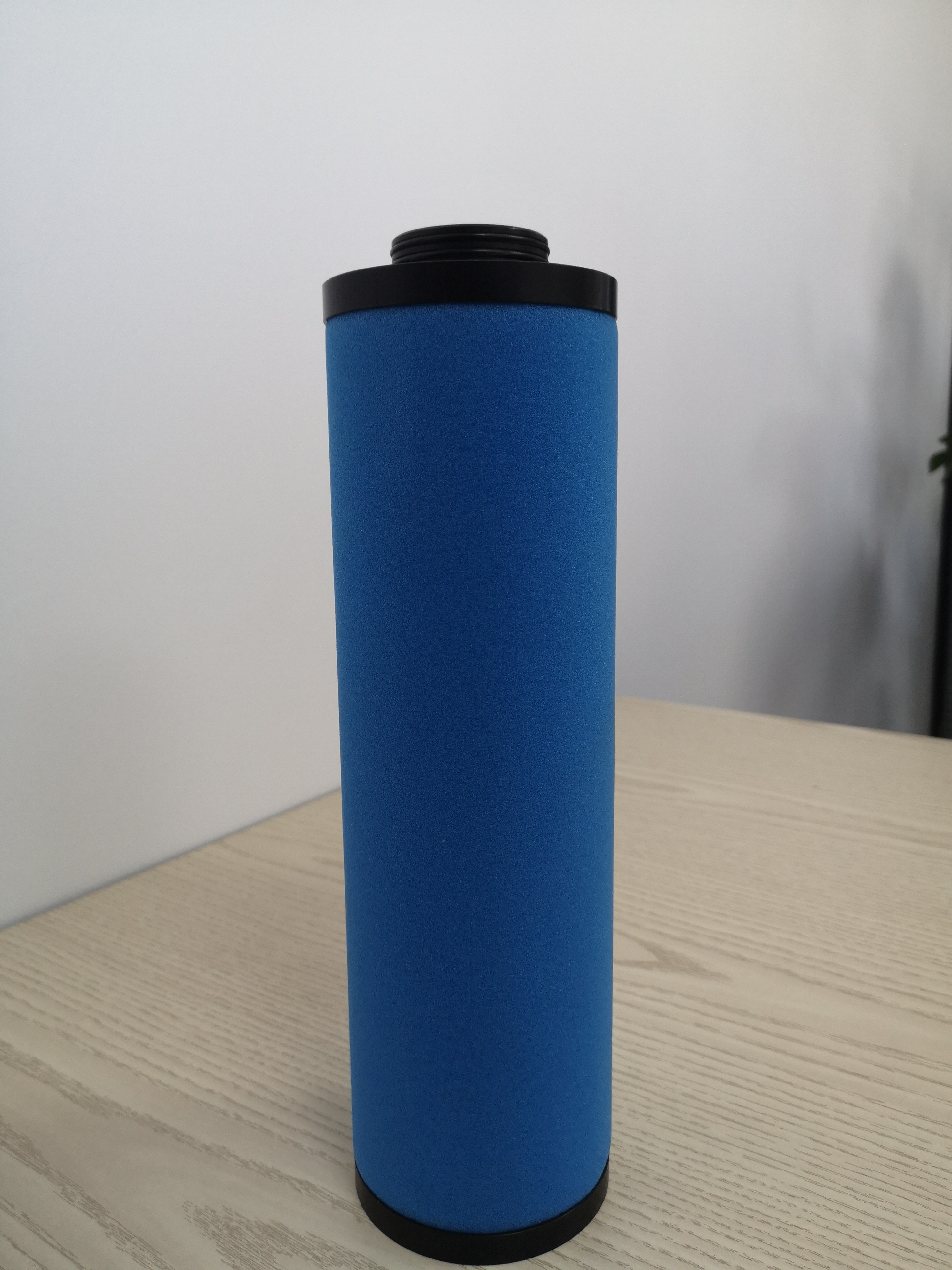

DD17 Atlas Copco 1micron 0.10ppm replacement coalescing inline filter element
Related Models
| Model |
Flow Rate NM3/min |
| 9 | 0.5 |
| 17 | 1 |
| 32 | 2 |
| 44 | 2.6 |
| 60 | 3.6 |
| 120 | 7.2 |
| 150 | 9 |
| 175 | 10.5 |
| 260 | 15.6 |
| 390 | 23.4 |
| 520 | 31.2 |
DD FILTER RANGE
Coalescing filters for general purpose protection, removing liquid water and oil aerosol to 0.1 mg/m3 (0.1 ppm) and particles down to 1 micron.
DDp FILTER RANGE
Particulate filters for dust protection, removing particles down to 1 micron.
PD FILTER RANGE
High efficiency coalescing filters, removing liquid water and oil aerosol to 0.01 mg/m3 (0.01ppm) and particles down to 0.01 micron.
▶ For optimum filtration, a PD filter should be preceded by a DD filter at all times.
PDp FILTER RANGE
Particulate filters for dust protection, removing particles down to 0.01 micron.
QD FILTER RANGE
Active carbon filter for removal of oil vapor and hydrocarbon odors with a maximum remaining oil content of 0.003 mg/m3(0.003 ppm).
▶ For optimum filtration, a QD filter should be protected by the right pre-filtration including a DD and PD filter at all times.
All grades are also available for silicon-free applications (e.g. painting).
