2.5-3.6NM3/Min Air Dryer Water Separator Filter Non Corroding

Basic Information
Place of Origin: CHINA
Brand Name: Neutral or Local
Certification: ISO9001
Model Number: AWS16-15
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Neutral Packaging / Customized
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Supply Ability: 5000 Pieces Per Month
Detail Information
Application: Compressed Air Type: Gas Water Separator
Max Working Pressure: 1.3MPa Separation Efficiency%: ≥99%
Max Working Temperature: 66℃ Connector: G3/4''
High Light:

2.5NM3/Min Air Dryer Water Separator


3.6NM3/Min Air Dryer Water Separator


Non Corroding Air Dryer Filter

Product Description

Dryer Precision Filter G1/2'' Gas Water Separator For Oil Compressed Air Filtration




Our gas water separator used for screw air compressor, using mechanical separation techniques for the efficient removal of bulk liquid from the compressed as it leaves the air compressor and before it gets to refrigerated air dryer, protecting coalescing air filters against bulk liquid contamination where excessive cooling takes place in air receivers and distribution piping . Inside designed without air filter element, so with the advantages of longer service life and very lower pressure loss. So cyclone water separator is one of most important purification products in compressed air system


Compressed air is the second-largest power source after electricity, and it has a multi-purpose process gas source. The unfiltered and separated compressed air contains a considerable amount of water, solid particles, dust, oil mist, bacteria and other pollutants. These pollutants have a certain impact on the profitability and production costs of the factory. In order to maintain the competitive advantage of the factory, It is necessary to implement sustainable measures and apply quality-assured purification equipment.


Specifications of Gas Water Separator
Model Connector Flow Rate(NM3/min) Dim. A Dim. B Dim. C
AWS16-15 G1/2'' 1.5~2.4 92 240 263
AWS16-20 G3/4'' 2.5~3.6 92 240 263
AWS16-25 G1'' 3.7~5.4 92 240 263
AWS24-40 G1 1/2'' 5.5~13.0 120 340 372
AWS36-50 G2'' 14.0~29.0 152 584 624



- Pre-treatment for refrigerant or desiccant

- Robust structure

- 99% filtration efficiency




2.5-3.6NM3/Min Air Dryer Water Separator Filter Non Corroding 0

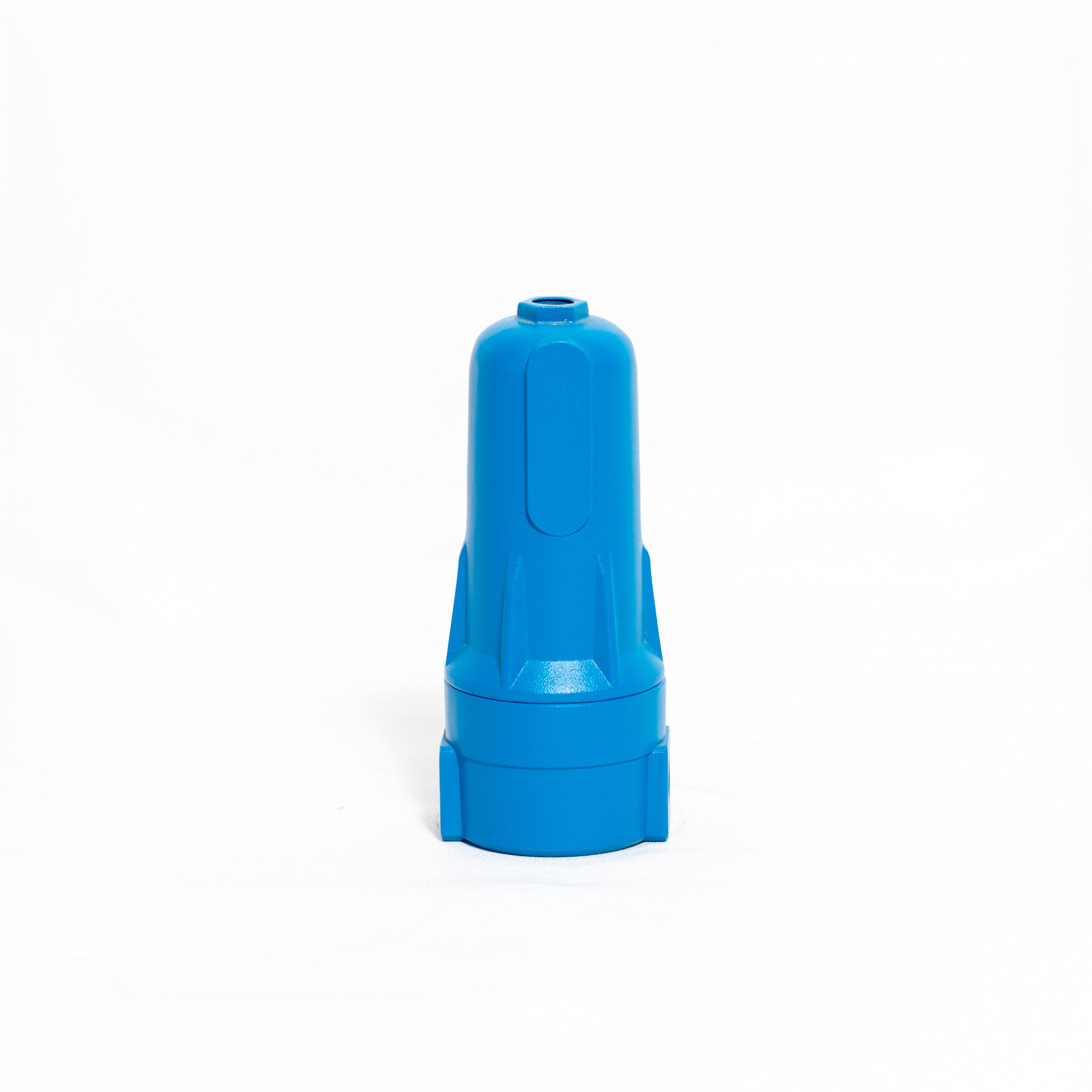

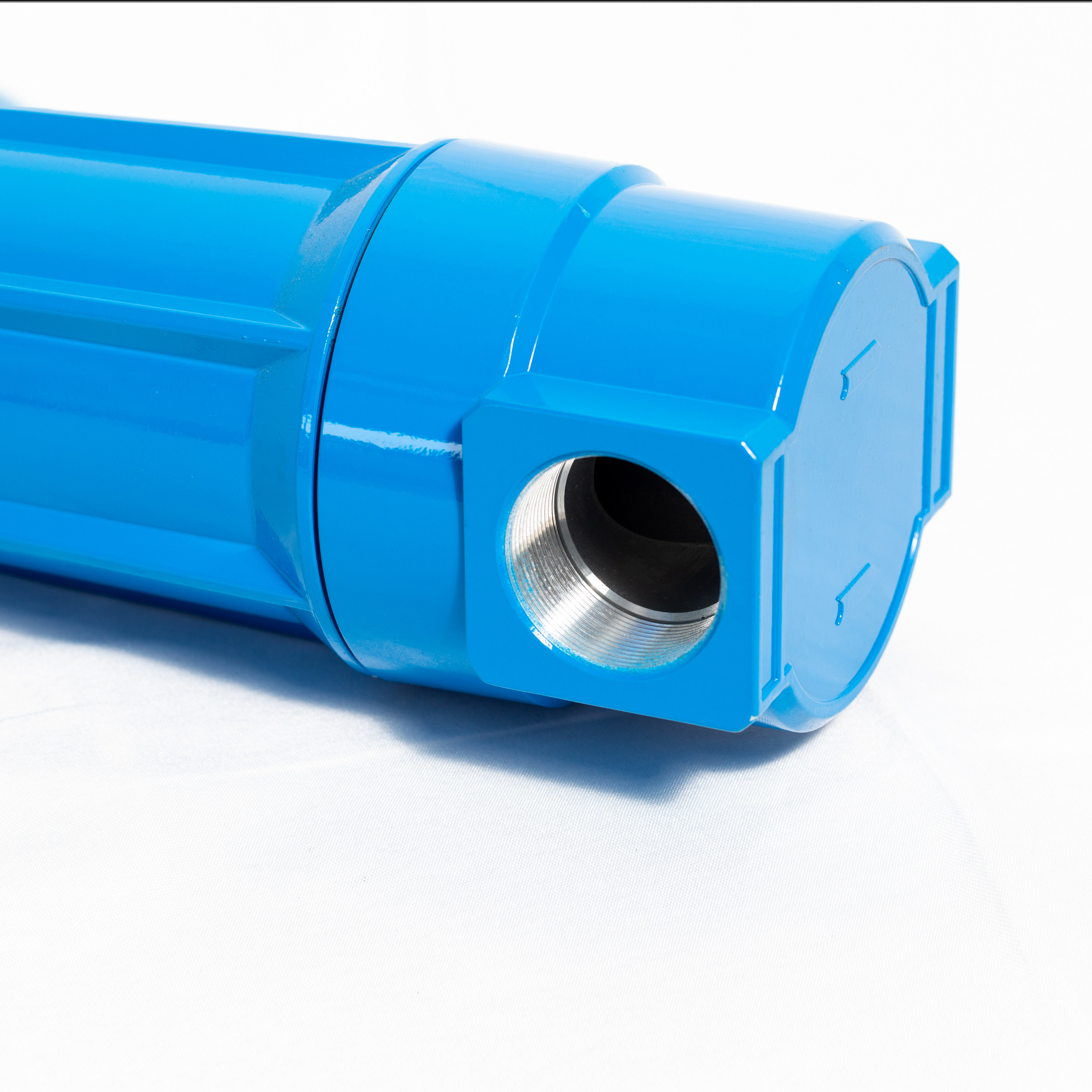

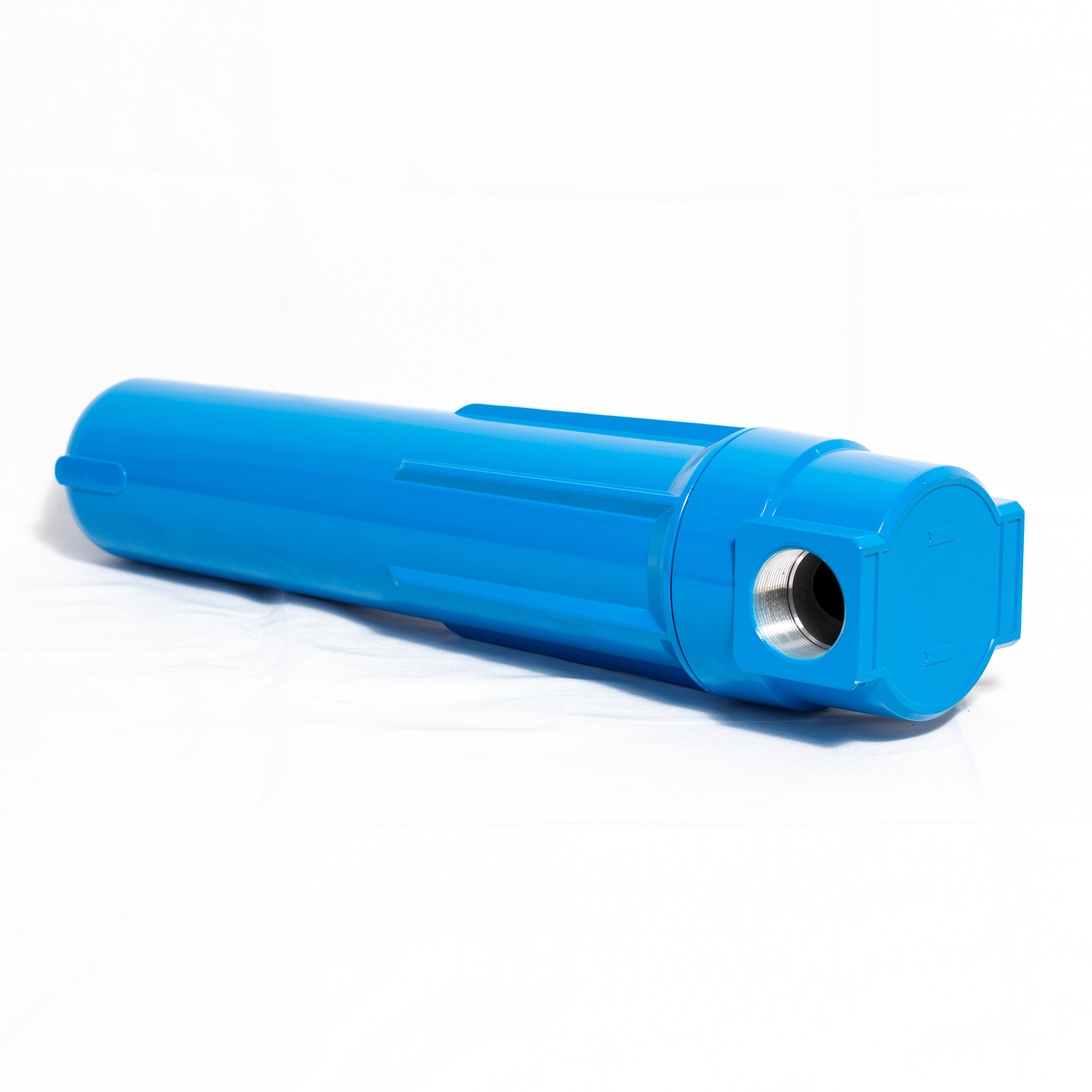

Details Pictures:


2.5-3.6NM3/Min Air Dryer Water Separator Filter Non Corroding 12.5-3.6NM3/Min Air Dryer Water Separator Filter Non Corroding 2

2.5-3.6NM3/Min Air Dryer Water Separator Filter Non Corroding 32.5-3.6NM3/Min Air Dryer Water Separator Filter Non Corroding 4
