| Place of Origin: | CHINA |
|---|---|
| Certification: | ISO |
| Model Number: | DDp17 |
| Payment Terms: | L/C, T/T |
| Filtration Fineness: | 1 Micron | Flow Rate: | 1 NM3/min |
|---|---|---|---|
| Material: | H&V Fiberglass | ||
| High Light: | 1NM3/Min Compressor Air Filter,DDp17 Compressor Air Filter,Atlas Copco Inline Particulate Filter |
||

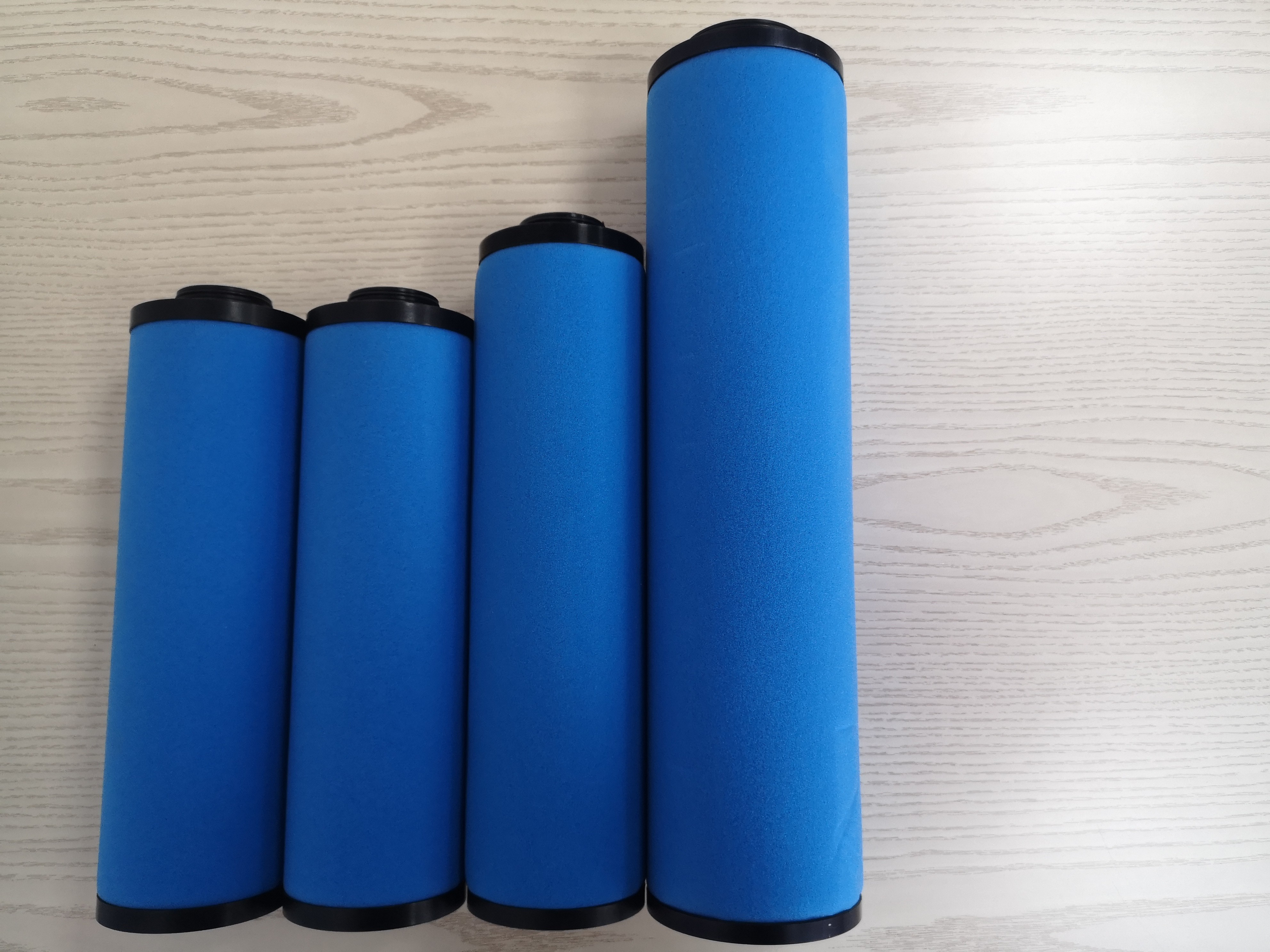

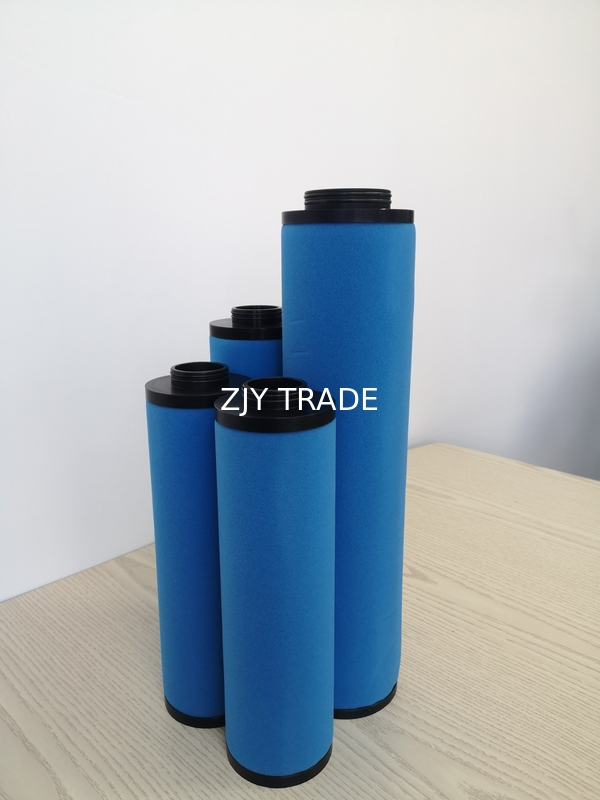

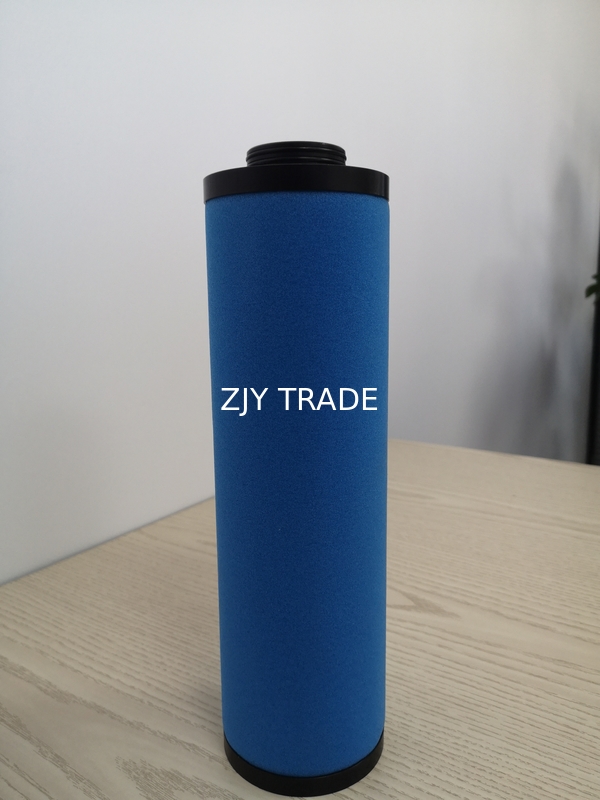

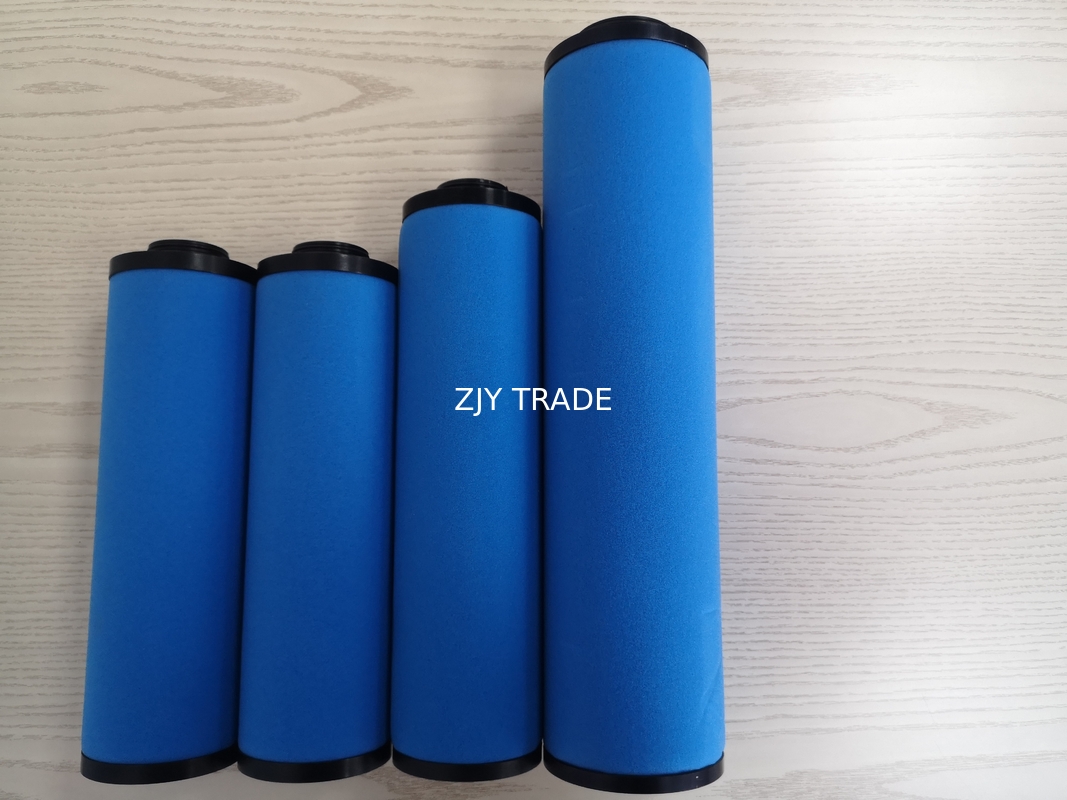

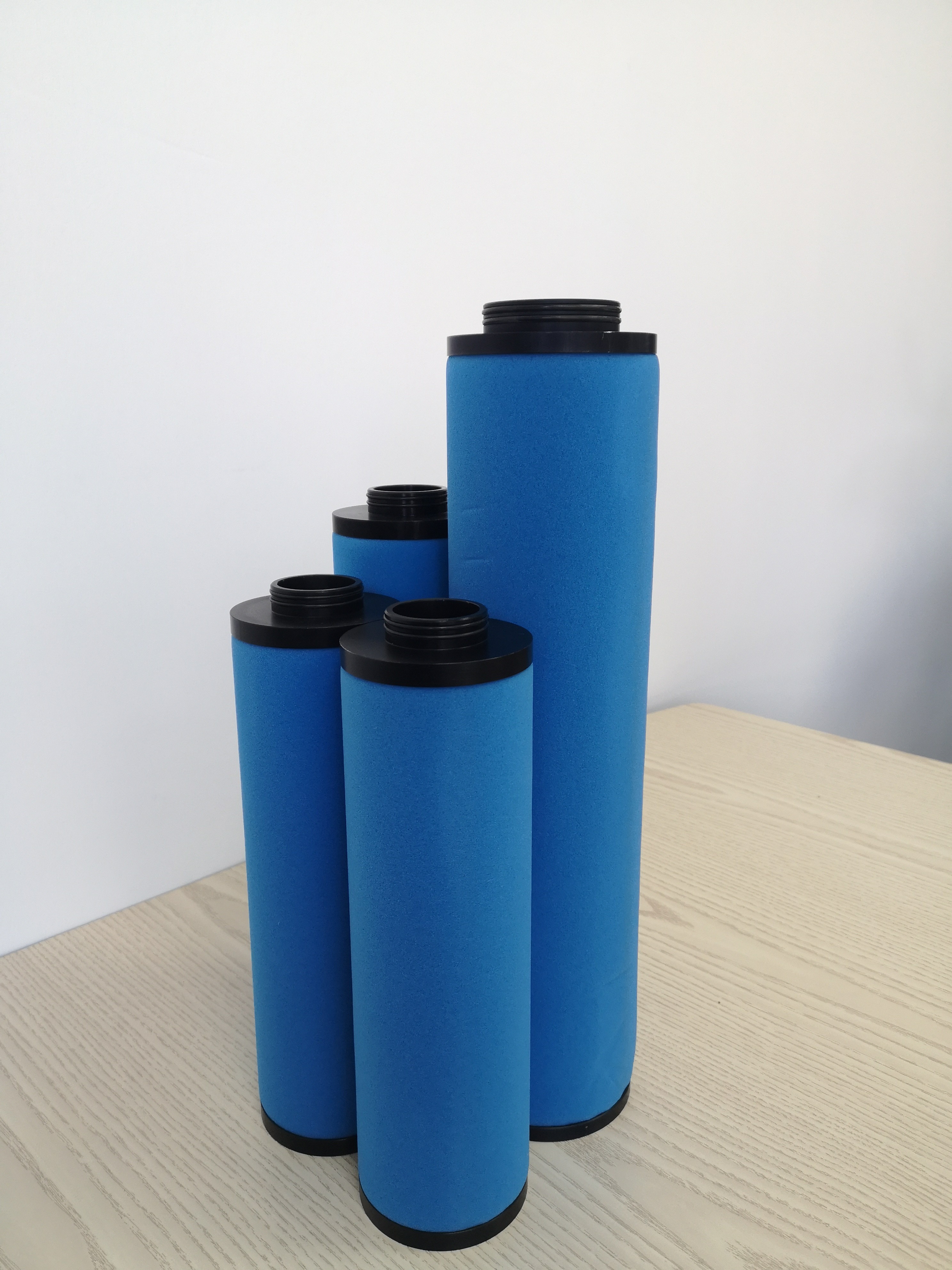

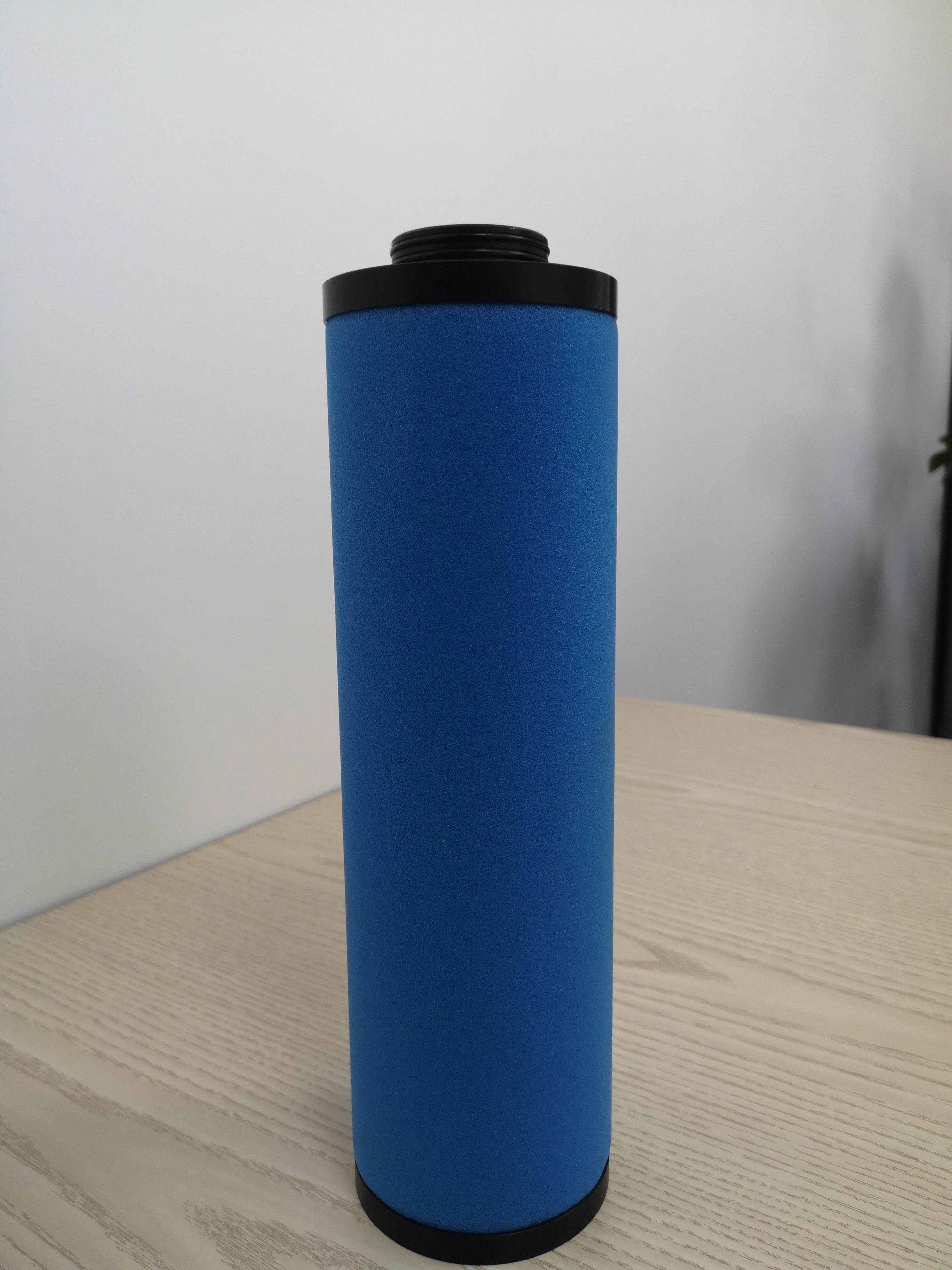

DDp17 Atlas Copco 1micron of inline particulate filters replacement filter element
Related Models
| Model |
Flow Rate NM3/min |
| 9 | 0.5 |
| 17 | 1 |
| 32 | 2 |
| 44 | 2.6 |
| 60 | 3.6 |
| 120 | 7.2 |
| 150 | 9 |
| 175 | 10.5 |
| 260 | 15.6 |
| 390 | 23.4 |
| 520 | 31.2 |
DD FILTER RANGE
Coalescing filters for general purpose protection, removing liquid water and oil aerosol to 0.1 mg/m3 (0.1 ppm) and particles down to 1 micron.
DDp FILTER RANGE
Particulate filters for dust protection, removing particles down to 1 micron.
PD FILTER RANGE
High efficiency coalescing filters, removing liquid water and oil aerosol to 0.01 mg/m3 (0.01ppm) and particles down to 0.01 micron.
▶ For optimum filtration, a PD filter should be preceded by a DD filter at all times.
PDp FILTER RANGE
Particulate filters for dust protection, removing particles down to 0.01 micron.
QD FILTER RANGE
Active carbon filter for removal of oil vapor and hydrocarbon odors with a maximum remaining oil content of 0.003 mg/m3(0.003 ppm).
▶ For optimum filtration, a QD filter should be protected by the right pre-filtration including a DD and PD filter at all times.
All grades are also available for silicon-free applications (e.g. painting).
