| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Neutral or Local |
| Certification: | ISO9001 |
| Model Number: | AWS16-16 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Neutral Packaging / Customized |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T |
| Max Working Pressure: | 1.3MPa | Separation Efficiency%: | ≥99% |
|---|---|---|---|
| Max Working Temperature: | 66℃ | Connector: | G1/2'' |
| High Light: | ISO9001 Compressed Air Filter Element,Separator Compressed Air Filter Element,1.3MPa Compressed Air Oil Water Separator |
||

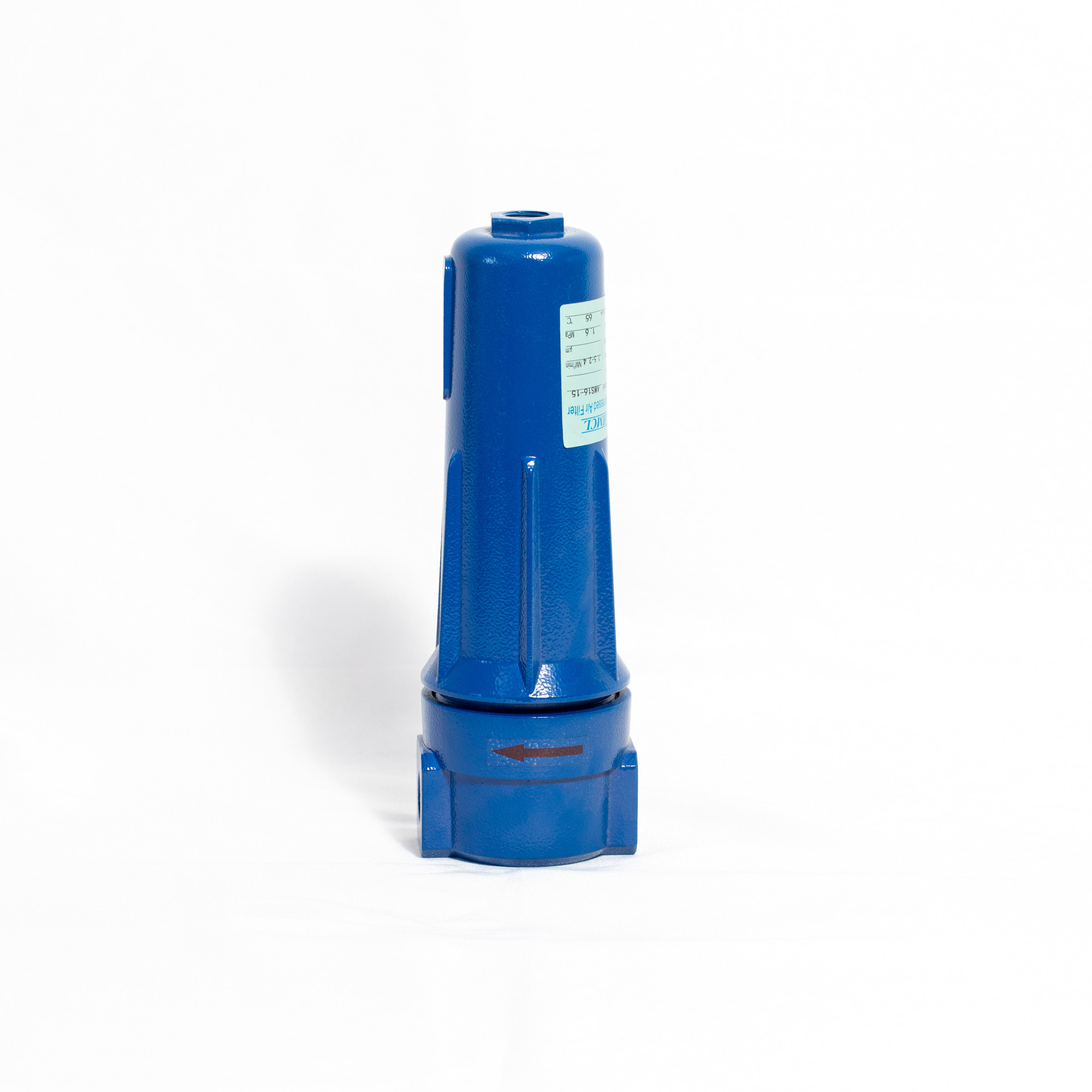

High Quality Compressed Air Gas Water Separator for Air Compressors
Product Description:
Removing water/vapor in compressed air is the primary task of compressed air purification treatment, the water entrained impurities in compressed air will corrode pipes, valves, instruments, and equipment, resulting in increased production costs.

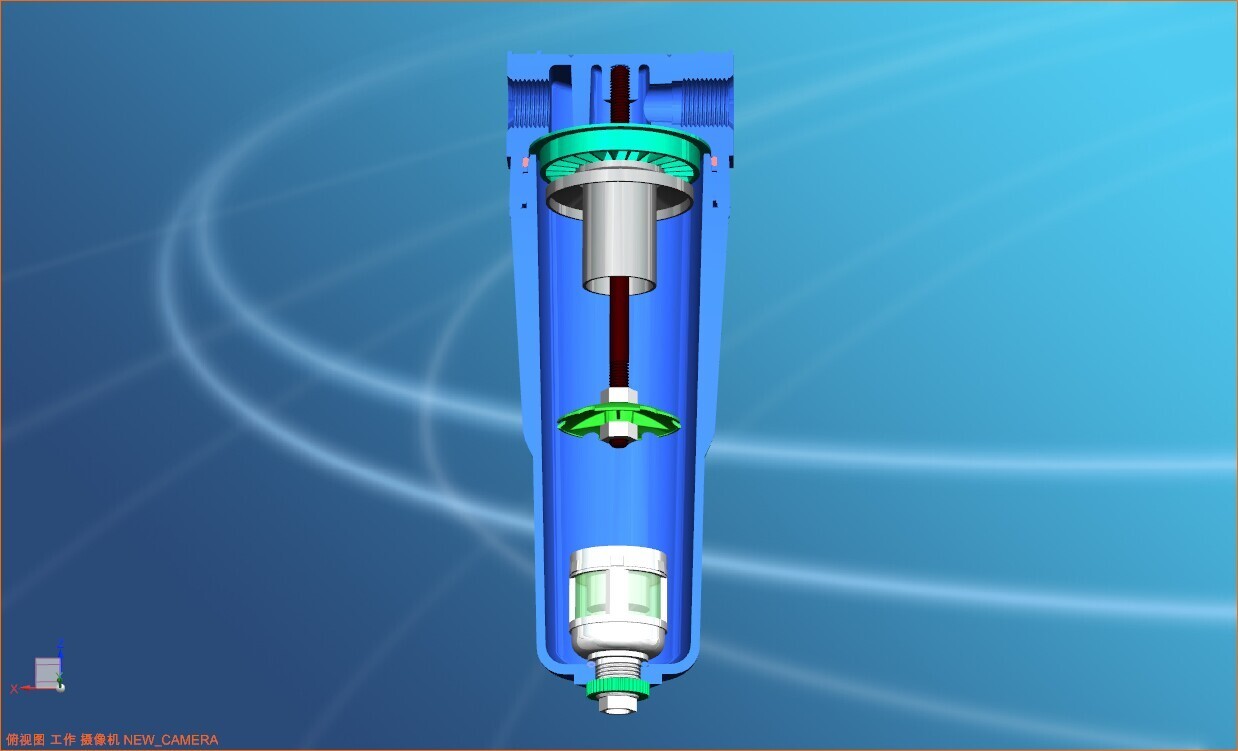

The gas-water separator is a perfect combination of the principle of centrifugation and flow collection, gravity, and collision mechanism, which can effectively remove the liquid water mist of compressed air. It is a critical pre-treatment device for high-efficiency compressed air filters and refrigerated and adsorbed compressed air dryers.
| Model | Connector | Flow Rate(NM3/min) | Dim. A | Dim. B | Dim. C |
| AWS16-15 | G1/2'' | 1.5~2.4 | 92 | 240 | 263 |
| AWS16-20 | G3/4'' | 2.5~3.6 | 92 | 240 | 263 |
| AWS16-25 | G1'' | 3.7~5.4 | 92 | 240 | 263 |
| AWS24-40 | G1 1/2'' | 5.5~13.0 | 120 | 340 | 372 |
| AWS36-50 | G2'' | 14.0~29.0 | 152 | 584 | 624 |
Features:
- Pre-treatment for refrigerant or desiccant
- Robust structure
- 99% filtration efficiency
Applications:
Detailed Pictures:
