| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Neutral or Local |
| Certification: | ISO9001 |
| Model Number: | JD 035Q |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Neutral Packaging / Customized |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T |
| Type: | Compressed Air Filter Element | Application: | Industrial |
|---|---|---|---|
| Material: | Multiple Fiberglass Layers | Temperature: | 120°C |
| Filtration Grade: | 3μm | Residual Oil Content: | 5ppm |
| High Light: | 5ppm Compressed Air Filter Element,120Degree Compressed Air Filter Element,Multiscene Replacement Compressed Air Filter Element |
||

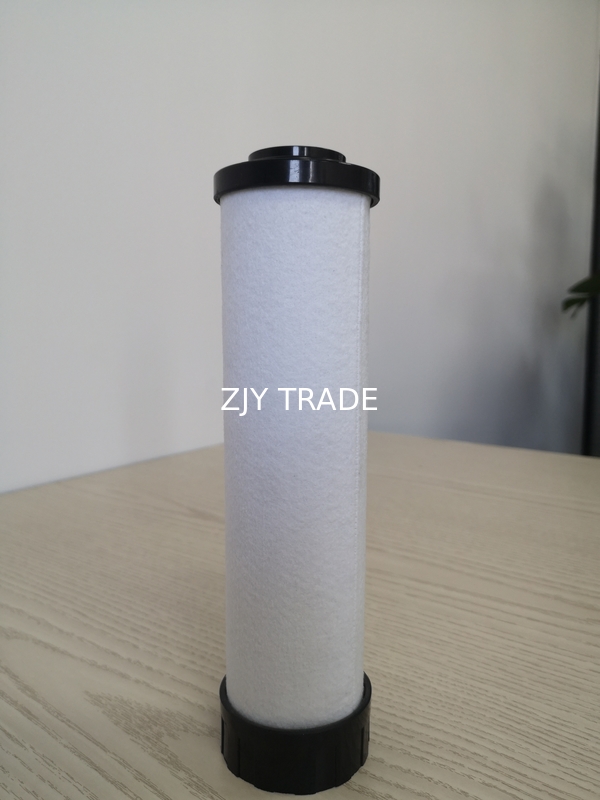

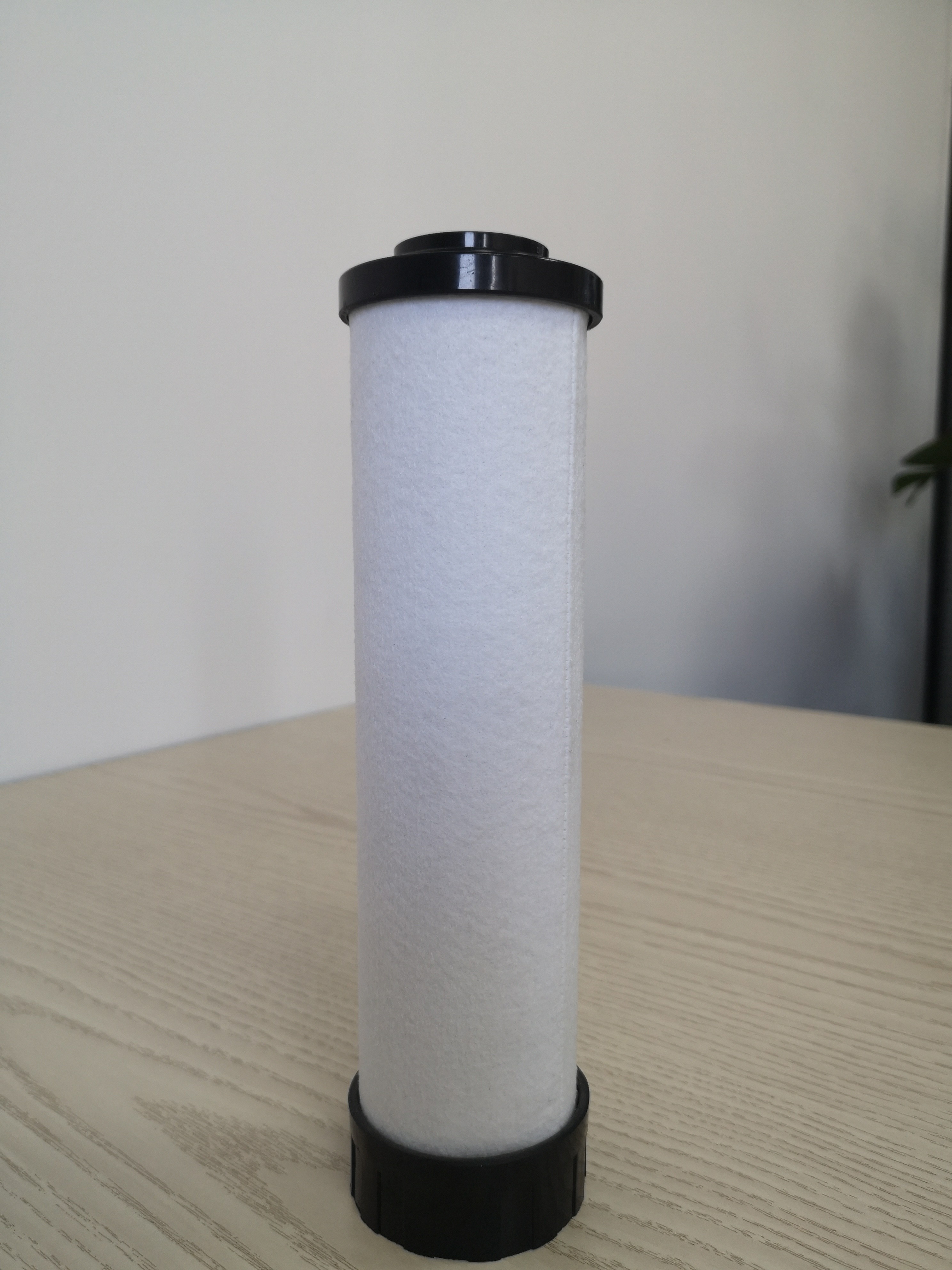

Walker Jeen Dong compressed air filter element replacement JD 035Q
This is a locally manufactured replacement filter element for industrial compressed air.
The 035Q model is to remove the solid particles over 3μm or significant liquid in the main channel, to reach the 5ppm residual oil content level.
It's a pre-treatment protector for the dryer, installed in the post-cooler of the compressor system, before other precision filters.
We are OEM and ODM capable, parts can be produced according to your specific requirement, and bring you the most cost-effective and qualified product for your production and business!
| Filtration grade | Residual Oil Content |
|---|---|
| Q: 3μm | 5ppm |
| P: 1μm | 1ppm |
| S: 0.01μm | 0.01ppm |
| C (activated carbon) : 0.01μm | 0.003ppm |
