1.3MPa Gas Water Separator 4'' Connector Practical For Air Compressor

Basic Information

Place of Origin:	CHINA
Brand Name:	Neutral or Local
Certification:	ISO9001
Model Number:	AWS16-20

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Neutral Packaging / Customized
Delivery Time:	5-8 working days
Payment Terms:	L/C, T/T

Get Best Price Contact Now

Detail Information

Application:	Compressed Air	Type:	Gas Water Separator
Max Working Pressure:	1.3MPa	Separation Efficiency%:	≥99%
Max Working Temperature:	66℃	Connector:	G3/4''
High Light:	1.3MPa Gas Water Separator , 4'' Gas Water Separator , Practical Air Compressor Water Separator

Product Description

G3/4'' High-Quality Compressed Air Gas Water Separator

Product Description:

Dry and clean compressed air to your pneumatic tool is essential to your manufacturing quality.

Our gas-water separator is a perfect combination of the principle of centrifugation and flow collection, gravity, and collision mechanism, which can effectively remove the liquid water mist of compressed air. It is a critical pre-treatment device for high-efficiency compressed air filters and refrigerated and adsorbed compressed air dryers.

**Specifications of Gas Water Separator**
Model	Connector	Flow Rate(NM3/min)	Dim. A	Dim. B	Dim. C
AWS16-15	G1/2''	1.5~2.4	92	240	263
AWS16-20	G3/4''	2.5~3.6	92	240	263
AWS16-25	G1''	3.7~5.4	92	240	263
AWS24-40	G1 1/2''	5.5~13.0	120	340	372
AWS36-50	G2''	14.0~29.0	152	584	624

Features:

- Pre-treatment for refrigerant or desiccant

- Robust structure

- 99% filtration efficiency

Applications:

Detailed Pictures:

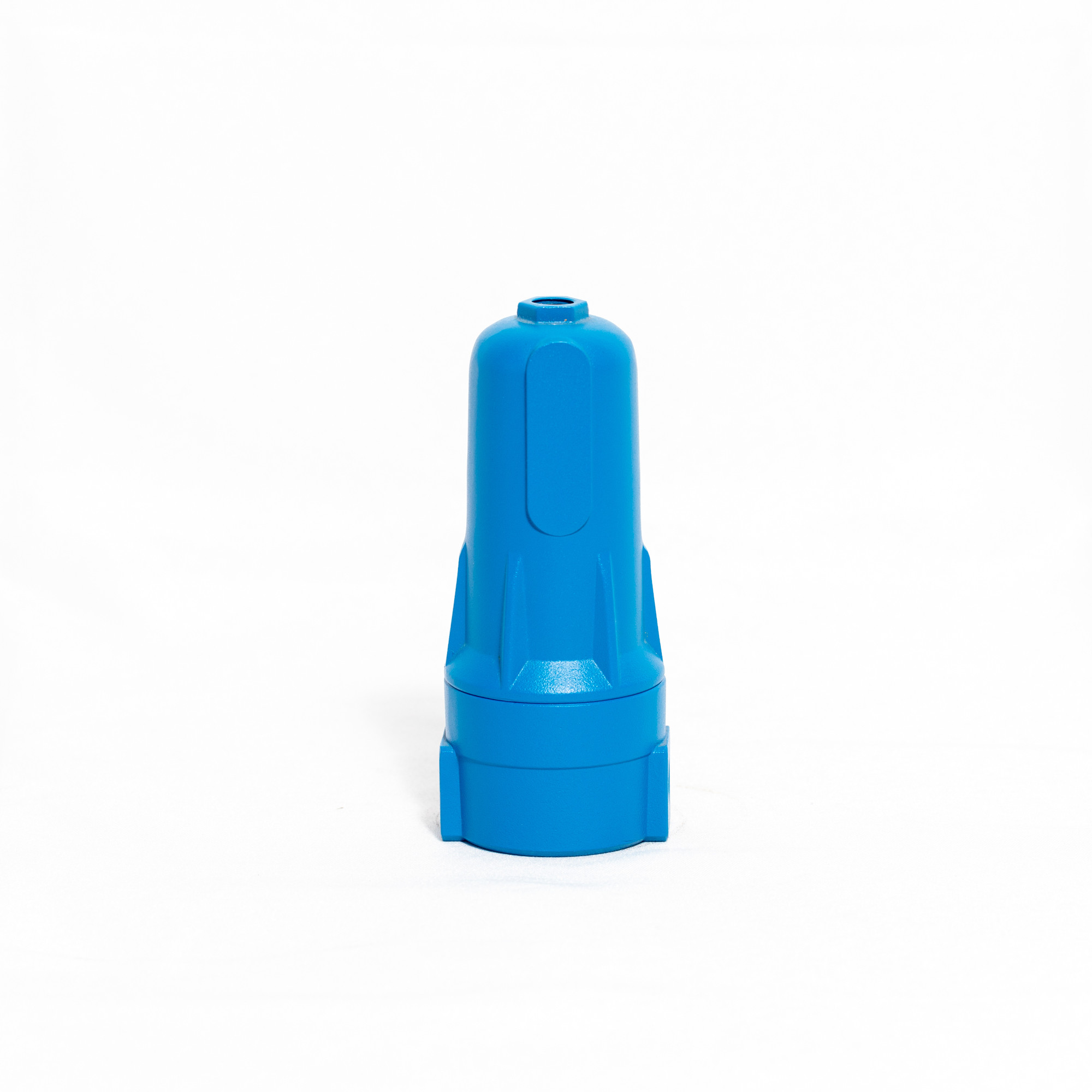

1.3MPa Gas Water Separator 4'' Connector Practical For Air Compressor 1

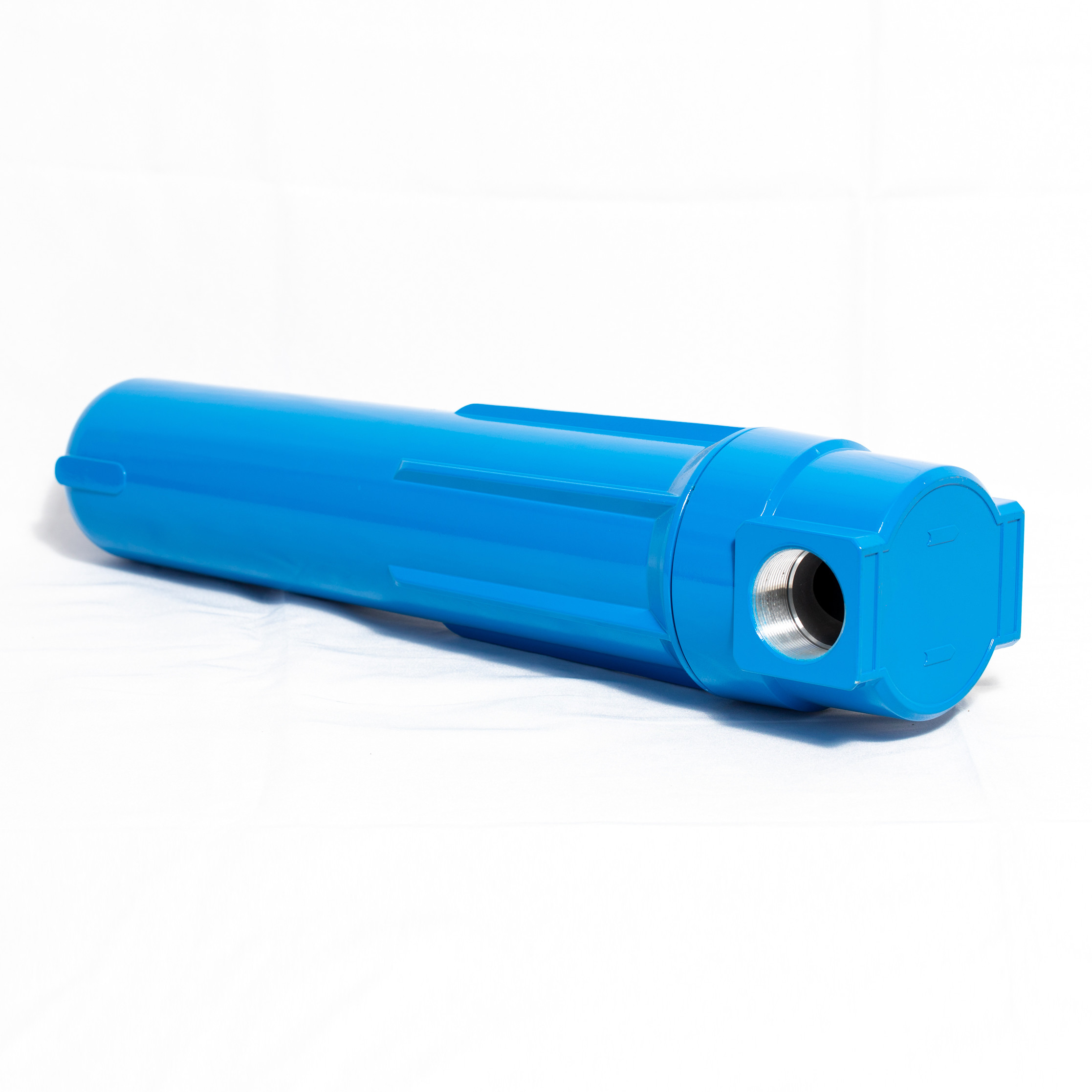

1.3MPa Gas Water Separator 4'' Connector Practical For Air Compressor 3
