| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Neutral or Local |
| Certification: | ISO9001 |
| Model Number: | 10/30 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Neutral Packaging / Customized |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T |
| Type: | Compressed Air Filter | Application: | Industry, Food And Beverage, Medicine, Textile |
|---|---|---|---|
| Filter Medium: | Microfiber With Polyurethane Foam Drainage Layer | Filtration Grade: | PE FF MF AK |
| Packaging: | Neutral | HS Code: | 8421999090 |
| High Light: | Textile Air Filter Cartridge,0.01μm Air Filter Cartridge,Stainless Steel Cartridge Filter Air |
||

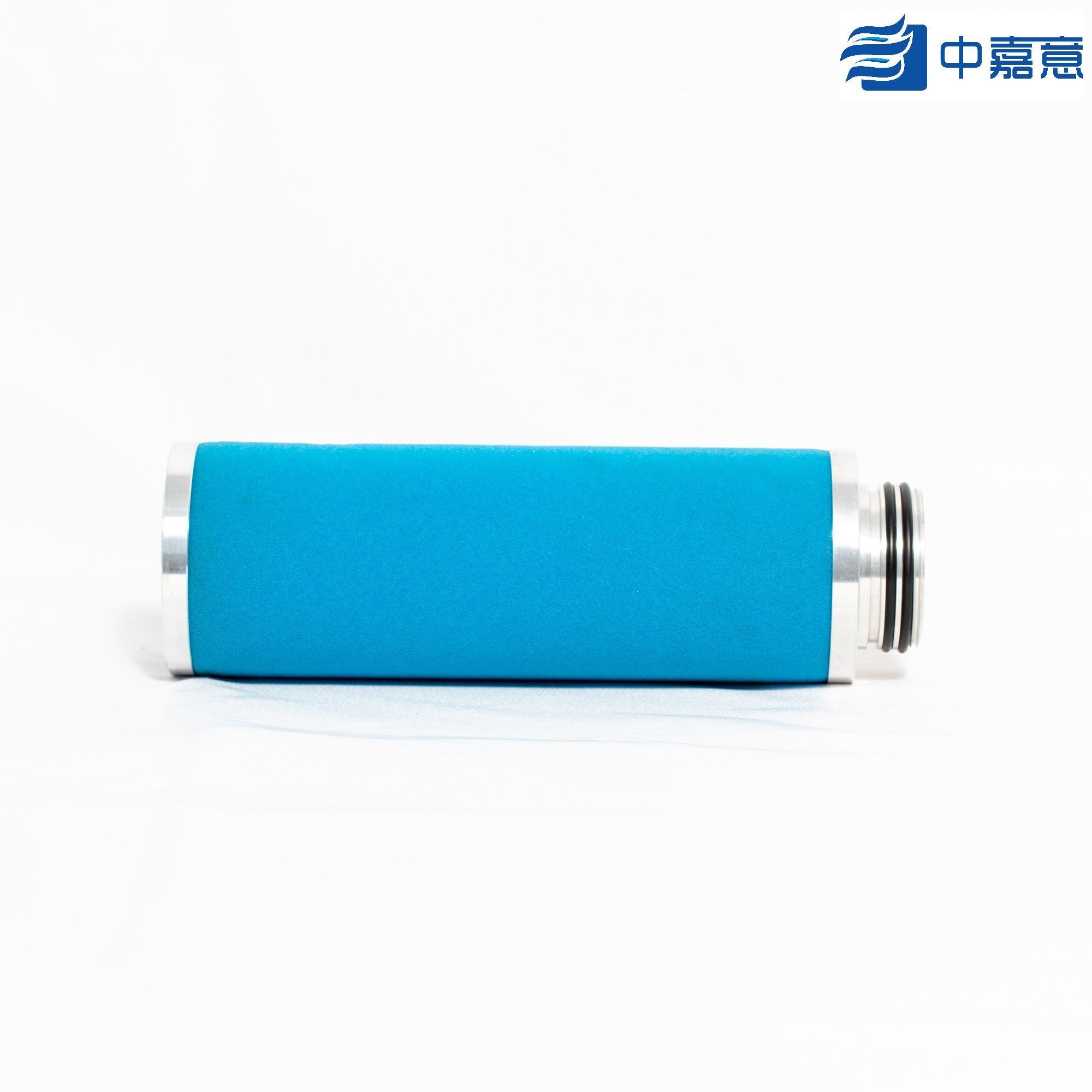

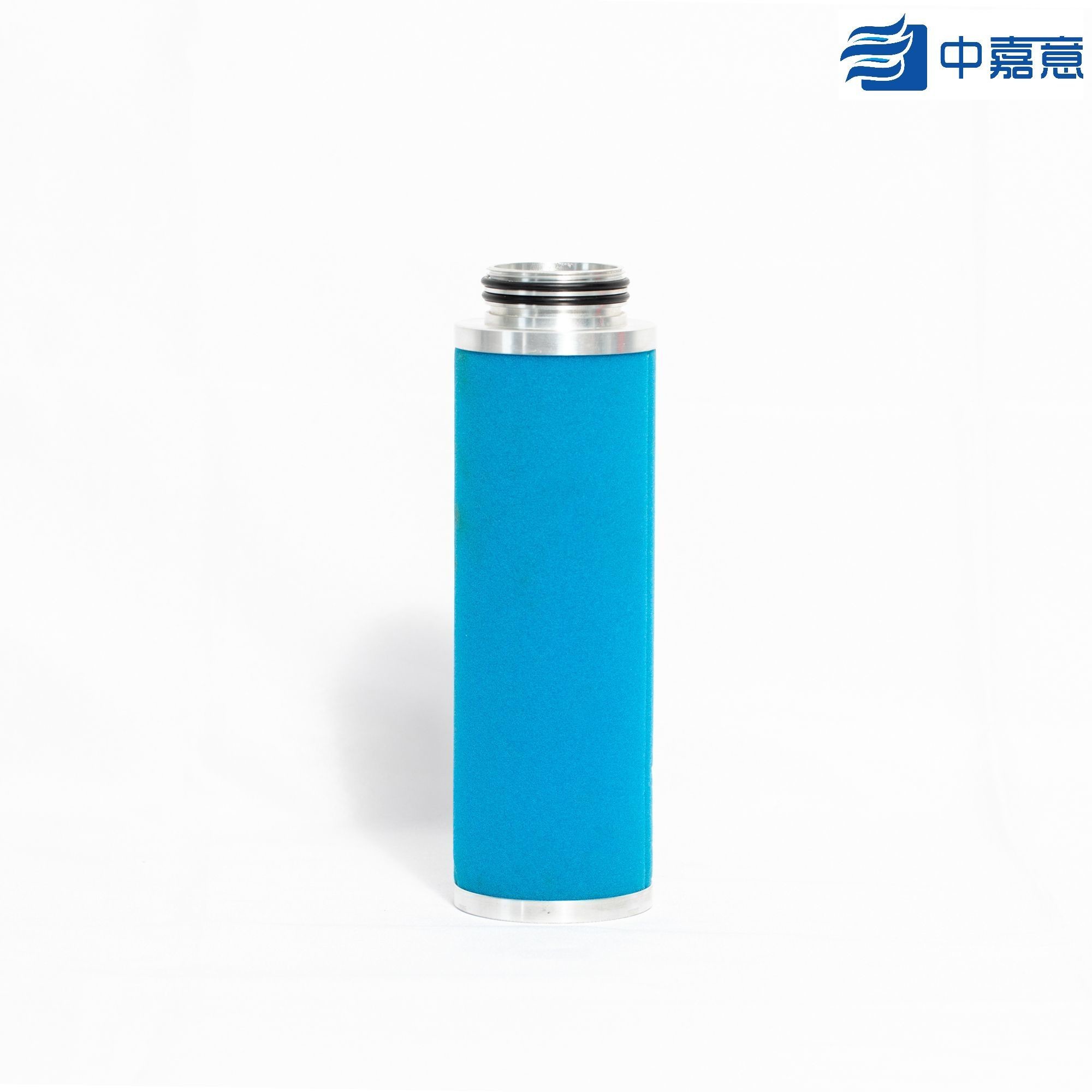

Ultrafilter Air Filter Replacement (10/30 Grade PE MF FF AK)
The coalescing filter uses a 3-dimensional microfiber made out of binder-free glass fiber.
By using various filtration mechanisms such as impaction, diffusion, and sieving, liquid aerosols and solid particles down to the size of 0.01μm are retained in the filter.
| Brand | Model |
Flow Rate (NM3/min) |
|---|---|---|
| ULTRAFILTER |
02/05 |
0.16 |
| 03/05 | 0.50 | |
| 03/10 | 1.00 | |
| 04/10 | 1.50 | |
| 04/20 | 2.00 | |
| 05/20 | 3.00 | |
| 05/25 | 4.50 | |
| 07/25 | 6.00 | |
| 07/30 | 8.00 | |
| 10/30 | 12.00 | |
| 15/30 | 18.00 | |
| 20/30 | 24.00 | |
| 30/30 | 32.00 | |
| 30/50 | 48.00 |
| Grade |
Efficiency (μm) |
Residual Oil Content (ppm) |
|---|---|---|
| PE | 5.00 | |
| FF | 1.00 | 0.100 |
| MF | 0.01 | 0.030 |
| AK | 0.01 (Activated Carbon) | 0.003 |
