| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Neutral or Local |
| Certification: | ISO9001 |
| Model Number: | -004E |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Neutral Packaging / Customized |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T |
| Type: | Compressed Air Filter | Material: | Fiberglass |
|---|---|---|---|
| Grade: | C | Efficiency (μm): | 3μm |
| Residual Oil (ppm): | 5.000 | Flow Rate: | 4Nm3/min |
| High Light: | 3μm Compressed Air Filter Element,4Nm3/min Compressed Air Filter Element,Compatible Air Compressor Air Filter Element |
||

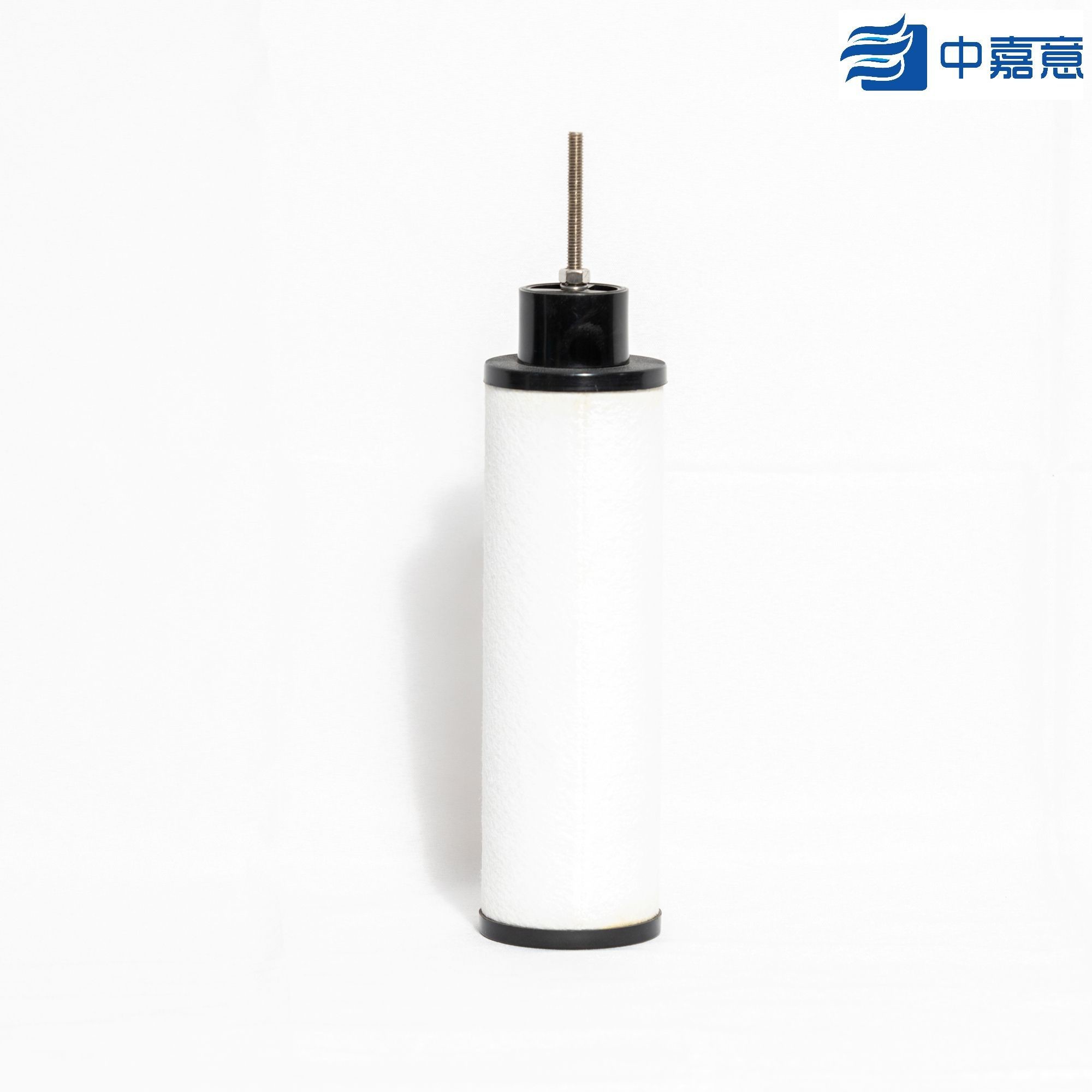

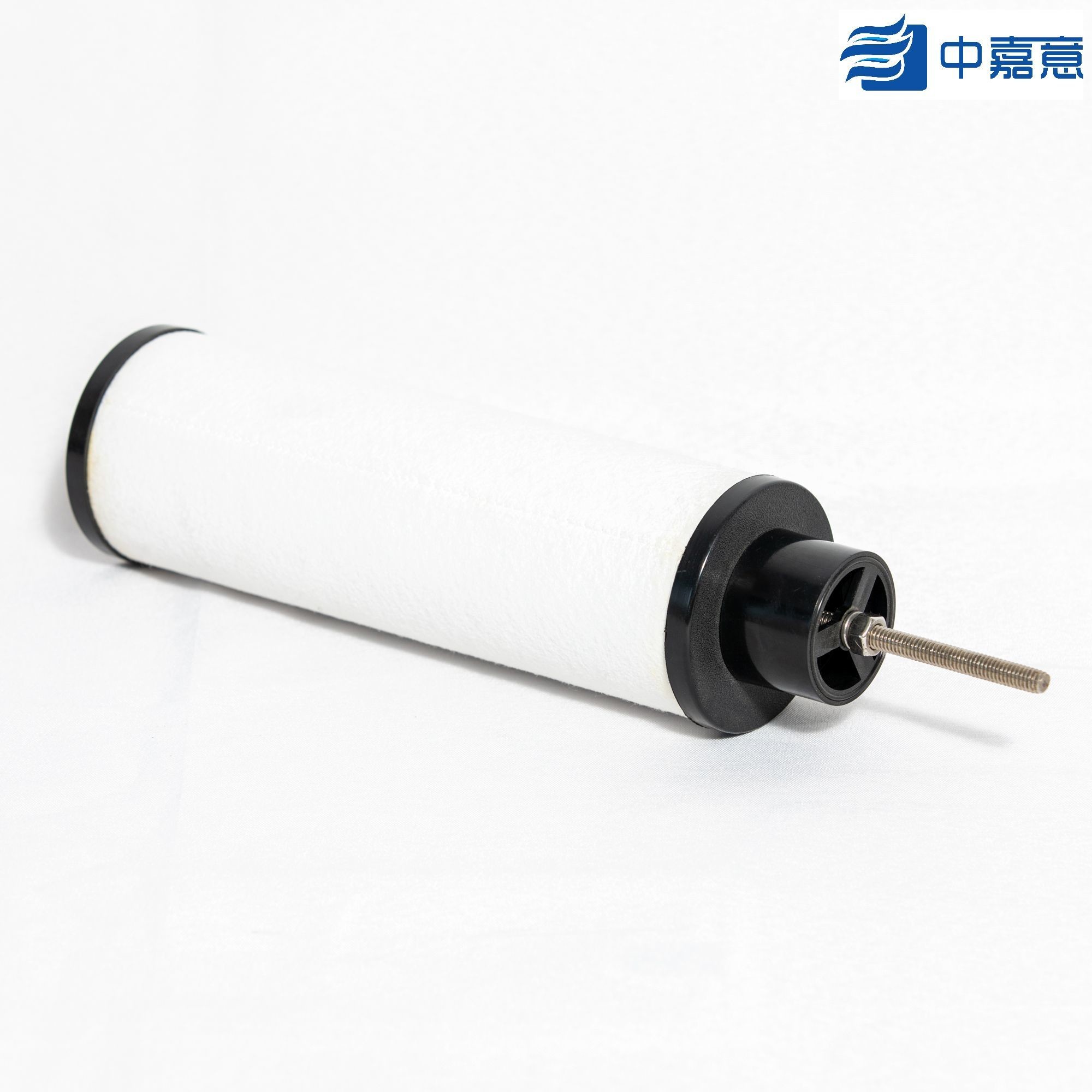

Taiwan JM C-004E Compressed Air Filter Element Compatible Replacement
Parts are built with high-quality material and workmanship.
This coalescing filter element offers equal or better filtration performance based on the original OEM filter specifications.
Coalescing filter elements are used to remove water, oil vapor, and other contaminants from a compressed airline.
We have replaced all major brands of OEM and replacement filters in each kind of application.
|
Model
|
Flow Rate (NM3/min)
|
|---|---|
| *-001ES | 1.00 |
| *-001E | 2.00 |
|
*-002ES |
2.50 |
| *-002E | 3.00 |
| *-004E | 4.00 |
| *-007ES | 7.00 |
| *-007E | 13.00 |
| *-013E | 18.00 |
| *-020E | 20.00 |
| *-030E | 30.00 |
|
Grade
|
Efficiency (μm)
|
Residual Oil (ppm)
|
| C | 3.00 | 5.00 |
| T | 1.00 | 1.00 |
| A | 0.01 | 0.01 |
| H | 0.01 | 0.003 |
* stands for the Filtration Grade
