| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Neutral or Local |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Neutral Packaging / Customized |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, T/T |
| Filtration Grade: | C/T/A/F/H/P-SRF | Efficiency: | 0.01μm~3μm |
|---|---|---|---|
| Shell Material: | SUS 30408 Stainless Steel | Filtration Media: | PTFE Membrane |
| High Light: | PTFE Stainless Steel Filter Element,SUS 30408 Stainless Steel Filter Element,Beverage Industry Sintered SS Filter |
||

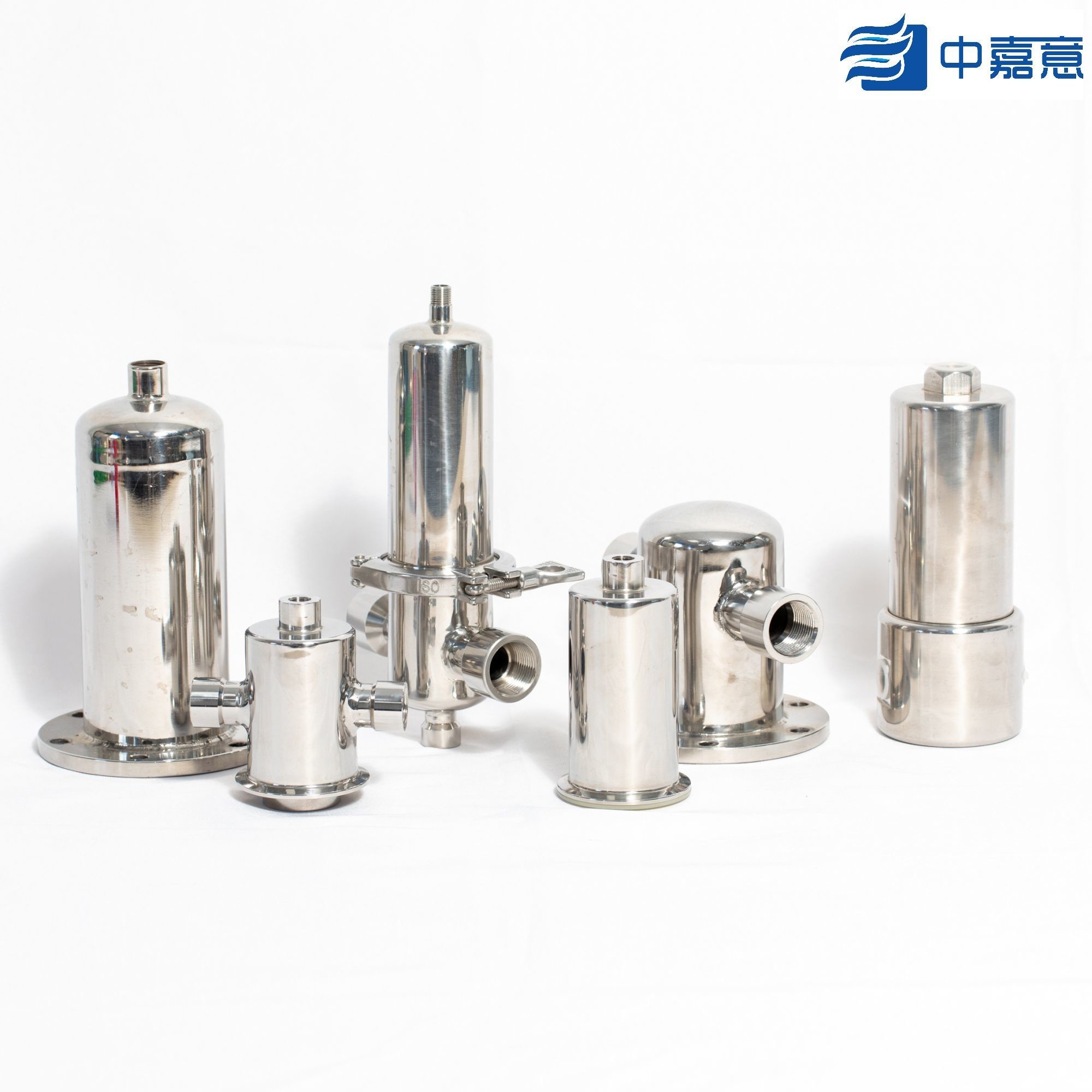

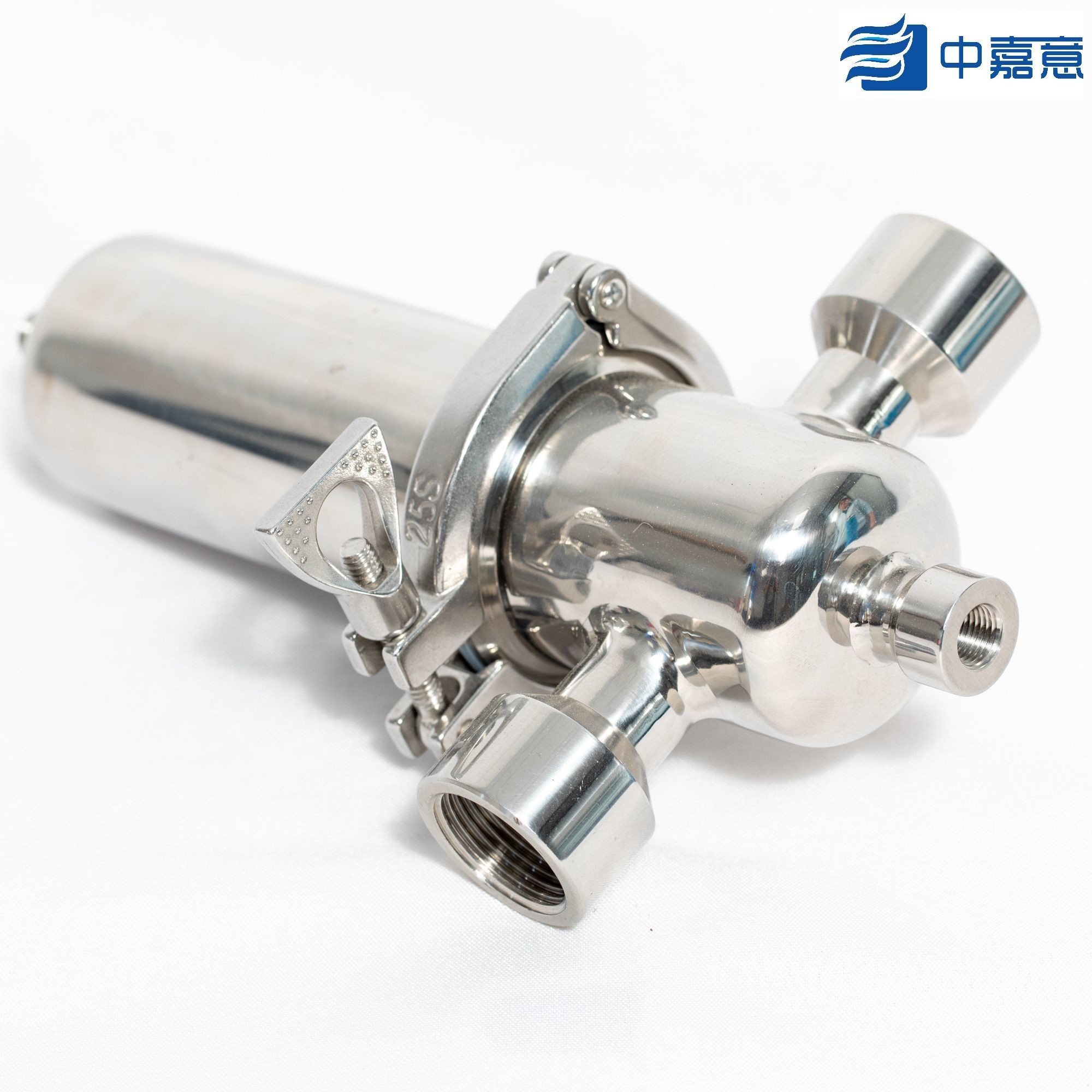

The Stainless Steel (sterilization*) Filter for Food & Beverage Industries
The stainless steel filter is made of SUS30408 raw material, the shell surface is polished with Ra0.8 grade, constructed with a high-efficiency precision filter element.
The sterilization is made with folded hydrophobic sterile membrane PTFE material, and 100% past the DOP integrity tests.
It is widely used in the pharmaceutical, food and beverage, chemical and semiconductor industries.
|
Flow Rate (Nm3/min)
|
Pipe Diameter (DN)
|
SIZE
WxHxD (mm)
|
| 1 | DN25 |
180x335x89 |
| 1.72 | DN25 |
180x335x89 |
| 2.9 | DN25 | 180x370x89 |
| 4.9 | DN40 | 190x380x89 |
| 7.2 | DN40 | 190x580x99 |
| 10.7 | DN50 | 190x750x99 |
| 14.9 | DN50 | 260x710x108 |
| 17.8 | DN65 | 340x1000x108 |
| 22 | DN80 | 360x1150x133 |
| 35 | DN100 | 420x1150x21 |
|
Grade
|
Efficiency / Residual Oil (PPM)
|
Main Function
|
| C | 3μm / 5ppm | Water Separation |
| T | 1μm / 1ppm | Main Pipe Dust/Oil Removal |
| A | 0.01μm / 0.01ppm | High-Efficiency Oil Removal |
| F | 0.01μm / 0.001ppm | Ultra High Efficiency Oilmist Removal |
| H | 0.01μm / 0.003ppm | Activated Carbon Odor Removal |
| P-SRF | / | High-Temperature Sterilization |
