ISO9001 1.3MPa Compressor Air Filter Dryer Water Separator Multipurpose

Basic Information
Place of Origin: CHINA
Brand Name: Neutral or Local
Certification: ISO9001
Model Number: AWS16-25
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Neutral Packaging / Customized
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Supply Ability: 5000 Pieces Per Month
Detail Information
Application: Compressed Air Type: Gas Water Separator
Max Working Pressure: 1.3MPa Separation Efficiency%: ≥99%
Max Working Temperature: 66℃ Connector: G1''
Colour: Blue Filter Material: Glass Fiber
High Light:

ISO9001 Compressor Air Filter


1.3MPa Compressor Air Filter


Multipurpose Air Compressor Dryer Water Separator

Product Description

Air Compressed Precision Filter Gas Water Separator Dryer Precision Filter G1' in-Line Filter for Air Dryer




Compressed air is an important energy in modem industry,because it isflexible,and reliable,however,only when the compressed air is clean,theadvantages can be fully reflecting.Aswe known particles always exists inthe atmosphere,the particles after sucked into the compressor,will beconcentrated 8 times,in addition,according to the compression typesdifferent,more or less oil content in micro mist form into the compressed airnetwork,and in the humid air system generated by the corrosion of unfavor-able factors,will lead to a significant industrial problem,such as,theproduction suspending, the emergence of waste and high maintenancecost,etc.In order to solve these long-time problem in industrial enterprises,with as lttle as possible of filtering processing volume as large as possiblethe air flow is our pursuit,the combination of multilayer filter material foldingform one of the world's most advanced filtration technology used inChinese compressed air purification field.


Specifications of Gas Water Separator
Model Connector Flow Rate(NM3/min) Dim. A Dim. B Dim. C
AWS16-15 G1/2'' 1.5~2.4 92 240 263
AWS16-20 G3/4'' 2.5~3.6 92 240 263
AWS16-25 G1'' 3.7~5.4 92 240 263
AWS24-40 G1 1/2'' 5.5~13.0 120 340 372
AWS36-50 G2'' 14.0~29.0 152 584 624



- Pre-treatment for refrigerant or desiccant

- Robust structure

- 99% filtration efficiency

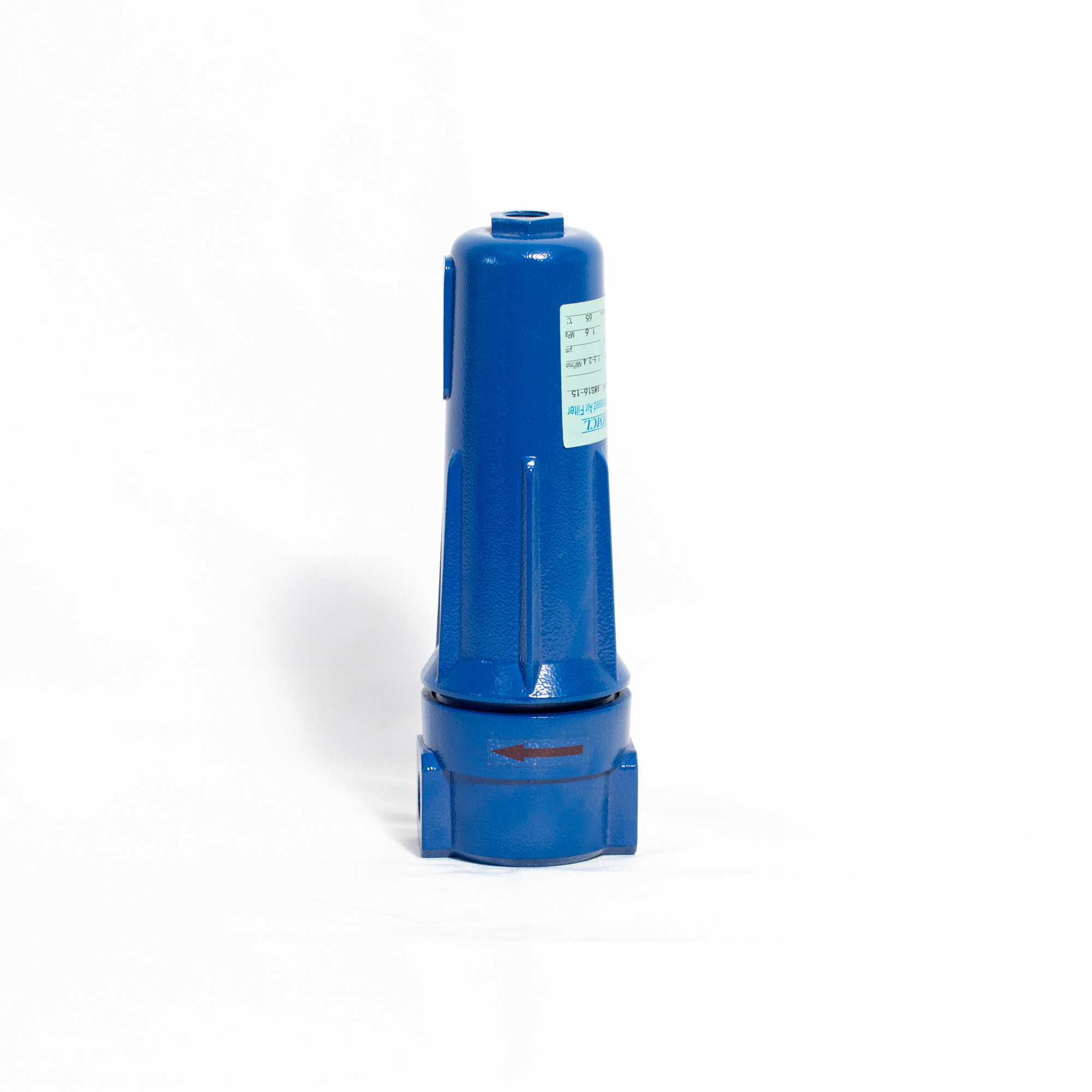

ISO9001 1.3MPa Compressor Air Filter Dryer Water Separator Multipurpose 0

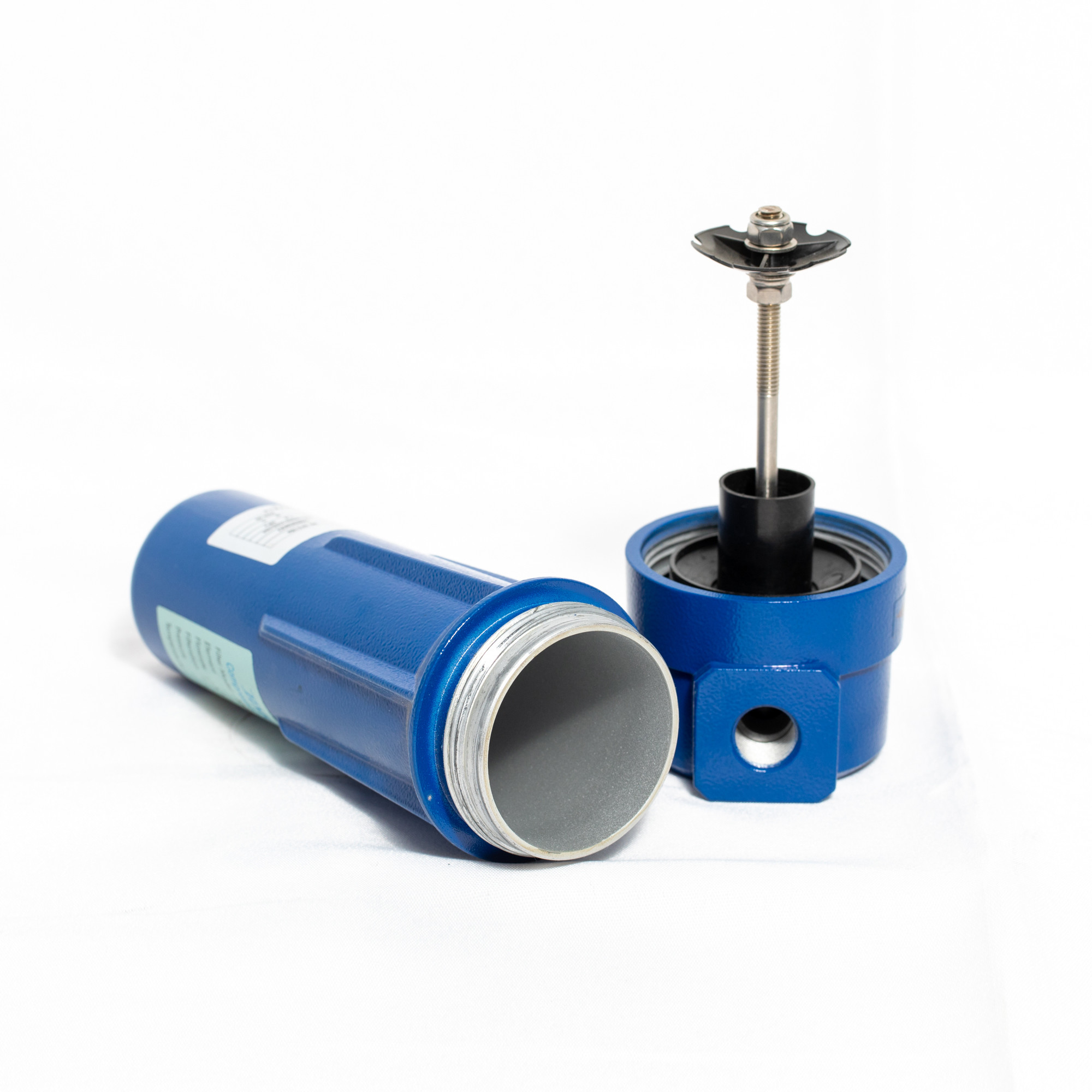

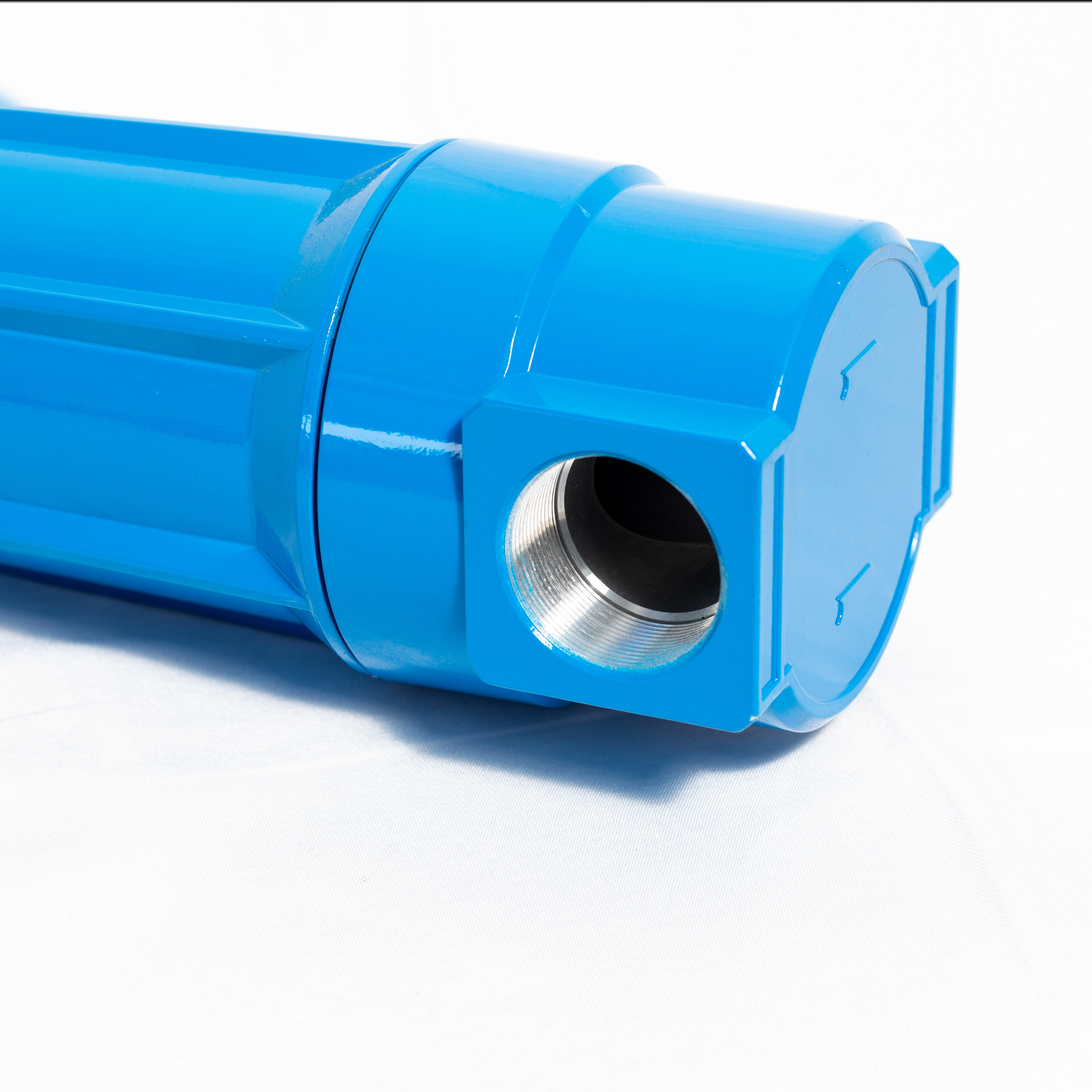

Details Pictures:

ISO9001 1.3MPa Compressor Air Filter Dryer Water Separator Multipurpose 1ISO9001 1.3MPa Compressor Air Filter Dryer Water Separator Multipurpose 2ISO9001 1.3MPa Compressor Air Filter Dryer Water Separator Multipurpose 3
