| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Neutral or Local |
| Certification: | ISO9001 |
| Model Number: | AWS24-40 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Neutral Packaging / Customized |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Pieces Per Month |
| Application: | Compressed Air | Type: | Gas Water Separator |
|---|---|---|---|
| Max Working Pressure: | 1.3MPa | Separation Efficiency%: | ≥99% |
| Max Working Temperature: | 66℃ | Connector: | G1 1/2'' |
| Colour: | Blue | Filter Material: | Glass Fiber |
| High Light: | 1.3MPa Precision Air Filter,Practical Precision Air Filter,Anticorrosive Air Compressed Filter |
||

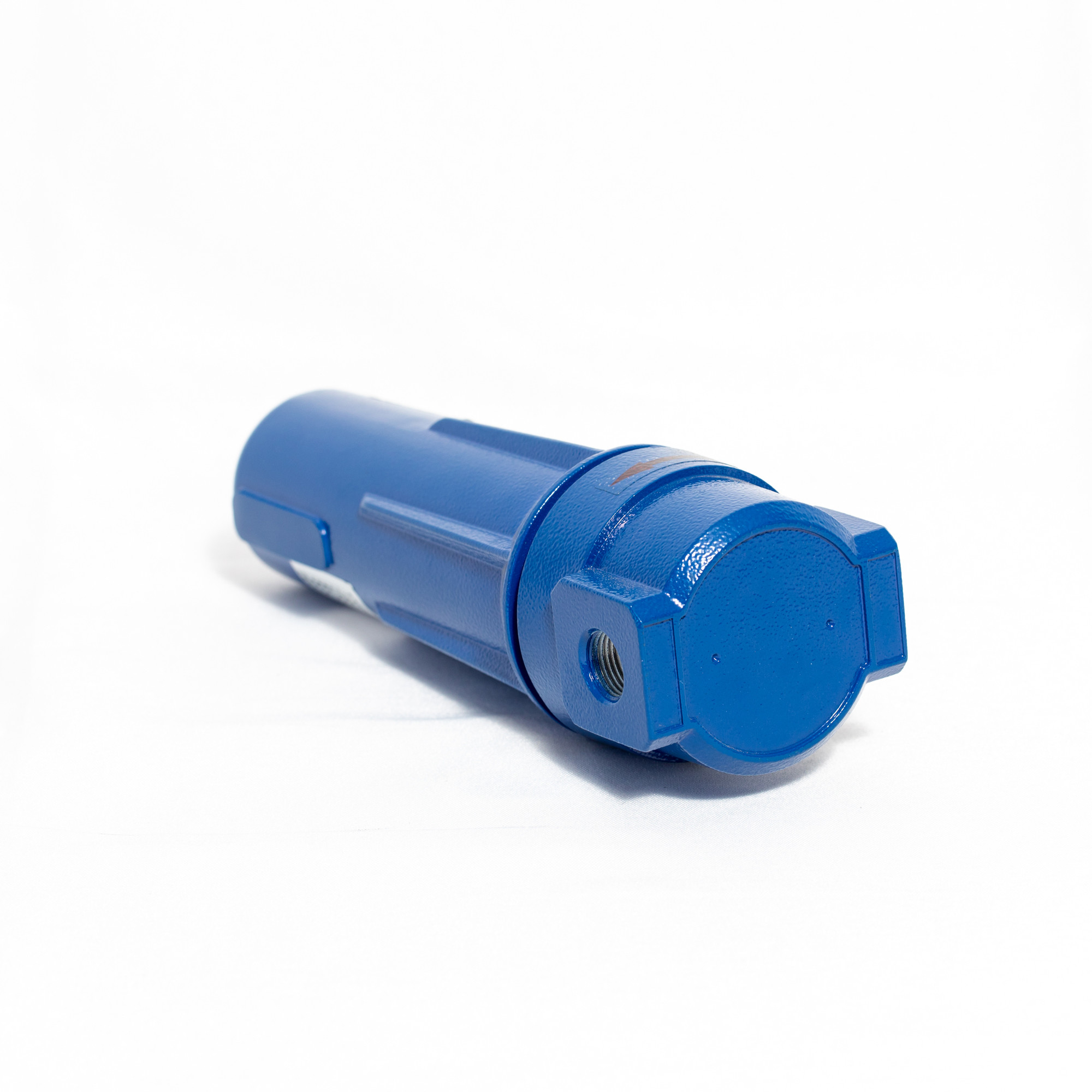

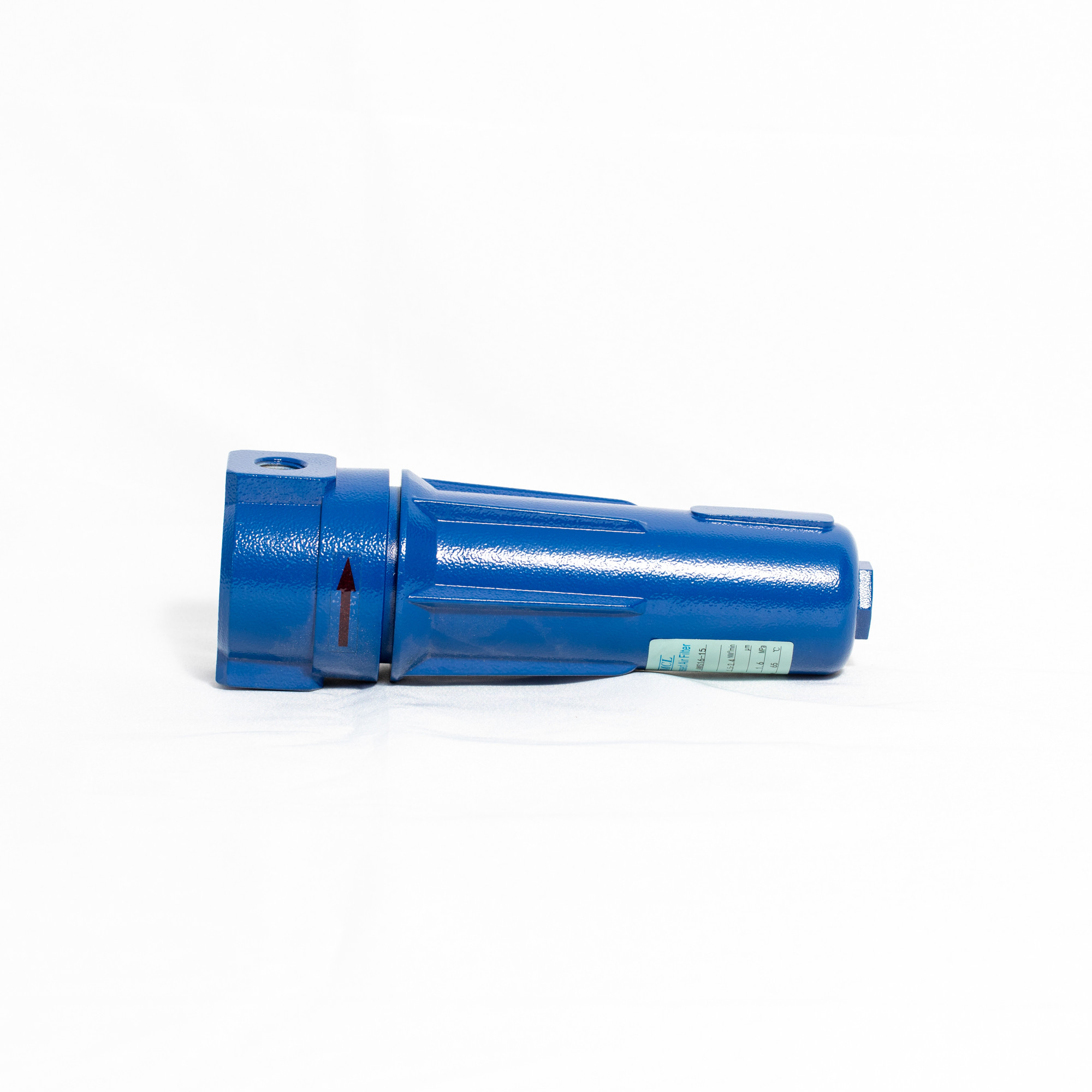

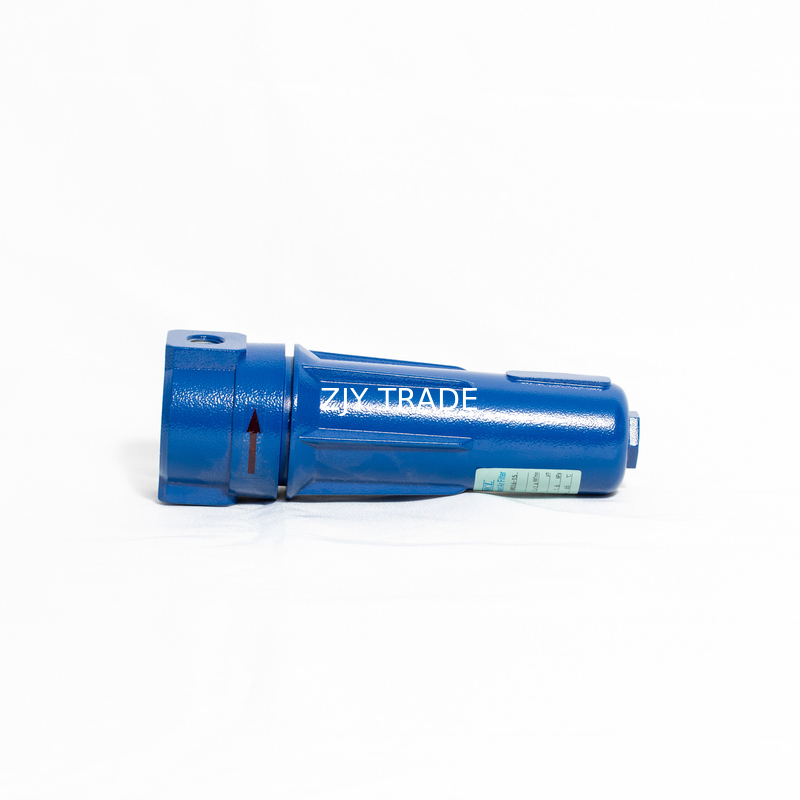

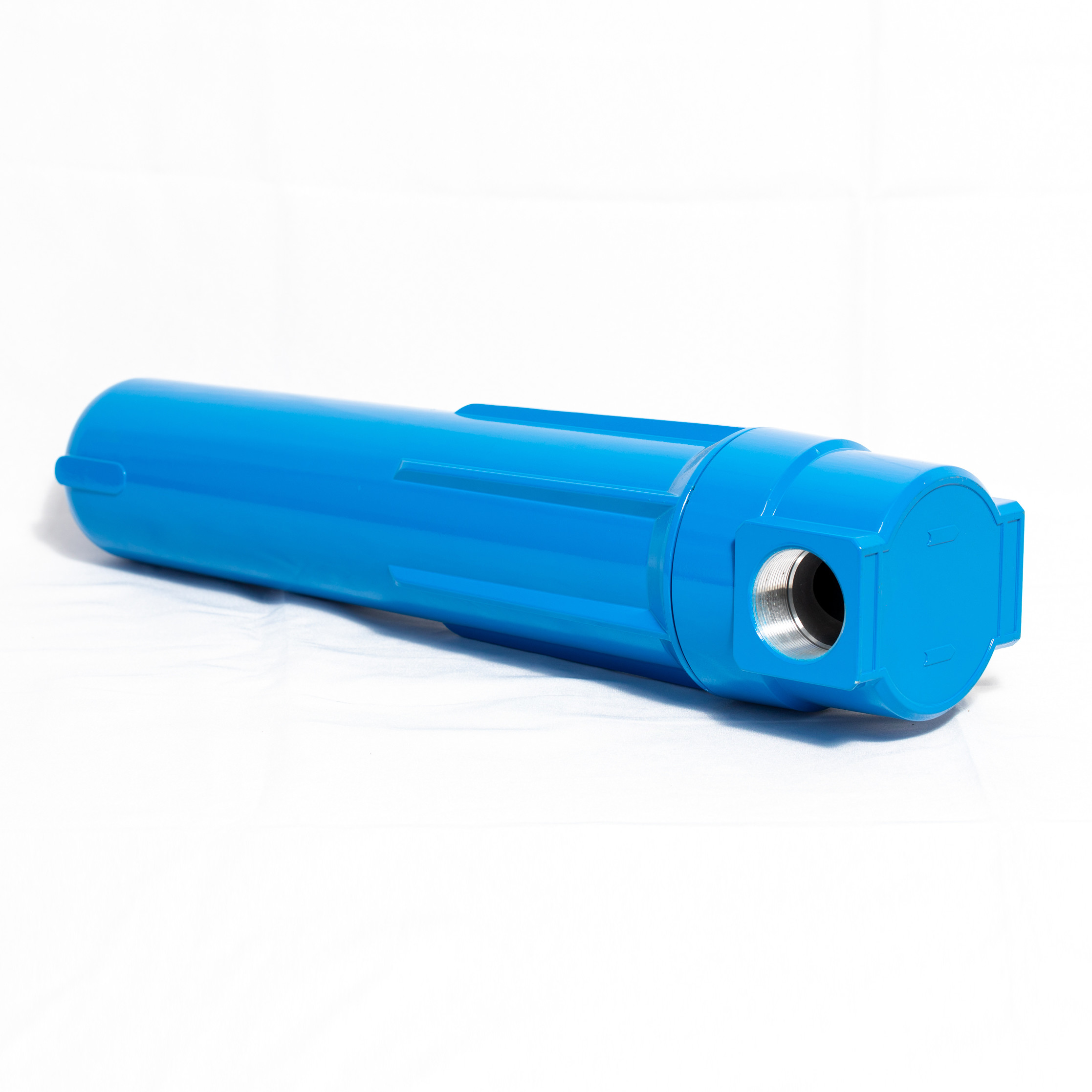

Air Compressed Precision Filter Gas Water Separator G1 1/2''in-Line Filter for Air Dryer
Description:
Compressed air is an important energy in modem industry,because it isflexible,and reliable,however,only when the compressed air is clean,theadvantages can be fully reflecting.Aswe known particles always exists inthe atmosphere,the particles after sucked into the compressor, will beconcentrated 8 times,in addition, according to the compression typesdifferent, more or less oil content in micro mist form into the compressed airnetwork, and in the humid air system generated by the corrosion of unfavor-able factors, will lead to a significant industrial problem, such as, theproduction suspending, the emergence of waste and high maintenancecost,etc. In order to solve these long-time problem in industrial enterprises, with as lttle as possible of filtering processing volume as large as possiblethe air flow is our pursuit, the combination of multilayer filter material foldingform one of the world's most advanced filtration technology used inChinese compressed air purification field.
| Model | Connector | Flow Rate(NM3/min) | Dim. A | Dim. B | Dim. C |
| AWS16-15 | G1/2'' | 1.5~2.4 | 92 | 240 | 263 |
| AWS16-20 | G3/4'' | 2.5~3.6 | 92 | 240 | 263 |
| AWS16-25 | G1'' | 3.7~5.4 | 92 | 240 | 263 |
| AWS24-40 | G1 1/2'' | 5.5~13.0 | 120 | 340 | 372 |
| AWS36-50 | G2'' | 14.0~29.0 | 152 | 584 | 624 |
Features:
- Pre-treatment for refrigerant or desiccant
- Robust structure
- 99% filtration efficiency
Applications:
