H13 H14 HEPA Separator Filter Element Multipurpose For Clean Room

Basic Information
Place of Origin: China
Certification: CAN/ULC S111
Model Number: Separator HEPA filter
Minimum Order Quantity: 100
Price: usd 89-499 pcs
Packaging Details: pallet
Delivery Time: 14 workdays
Payment Terms: T/T
Supply Ability: 100000 pcs/year
Detail Information
Frame: Stainless Steel Separator: Aluminum
Sealant: Ceramic, Glass Fiber Media: Glass Fiber, PTFE
Gasket: Glass Fiber Temperature: 150/250/300
Transport Package: Carton Outside With Plastic Bag Inside Specification: OEM
High Light:

H13 Separator Filter Element


Multipurpose Separator Filter Element


Clean Room H14 HEPA Filter

Product Description

H13 H14 Efficiency Separator HEPA Filter Element For Clean Room


Production instruction:

Pleated HEPA filter are divided into paper separator high-efficiency filters, aluminum foil separator high-efficiency filters, and high-temperature resistant separator filters. It is used for terminal filtration of various clean rooms, various local purification equipment, and air filtration, paint, and air filtration of medium filters, pharmaceuticals, hospitals, cosmetics, semiconductor electronic precision machinery, food and other industries.
1. Pre-filter for high efficiency filter;
2. Intermediate filter of air conditioning system;
3. Main filters for clean room, commercial and industrial ventilation and air conditioning systems, such as high humidity ventilation and air conditioning systems, variable air ventilation and air conditioning systems, ventilation air conditioning systems with tight installation space, high fire protection requirements or high ventilation temperatures Air Conditioning System


Product Features:
1. The filter material is made of high quality ultra-fine glass fiber filter paper or PP filter paper.
2. sturdy frame material, including aluminum profiles, aluminum plates, galvanized iron, stainless steel and wooden frames, sealing strip polyurethane foam sealant, EVA, EPDM, etc., divided into aluminum partitions and paper partitions, can be loaded with blue, single method Lan, double flange, etc., easy to install.
3. large dust holding capacity, large filtration area, large air volume, high efficiency, high humidity resistance up to 100%, long life
4. Efficiency: F5, F6, F7, F8, F9, H10, H13, H14
5. 100% of all products factory inspection

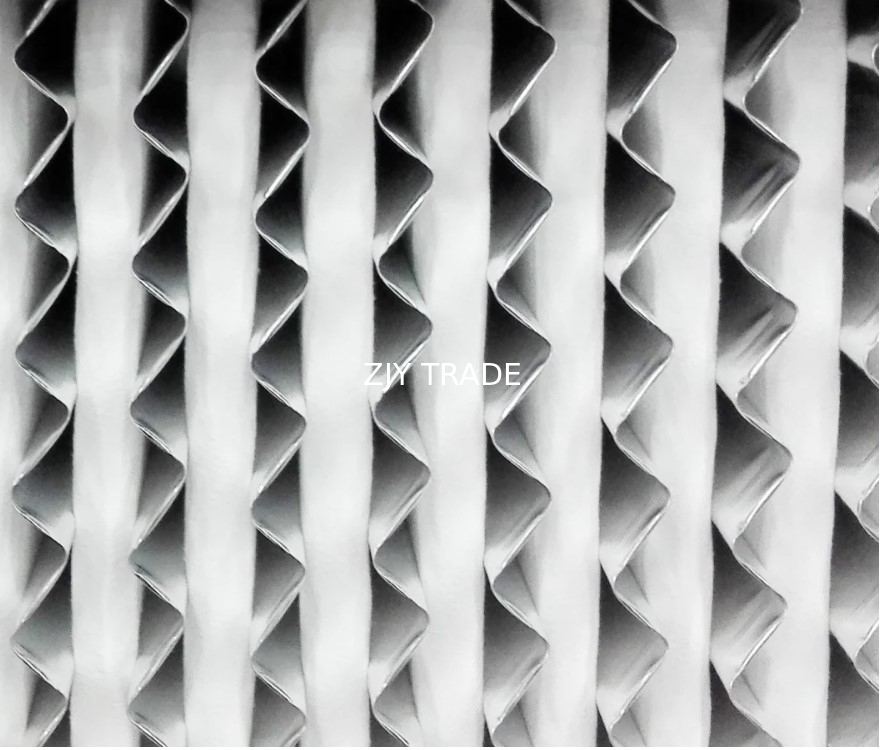

H13 H14 HEPA Separator Filter Element Multipurpose For Clean Room 0


1. Used in High class purifying equipment;
2. Used as the final filter of purification system and as purification equipments and clean room purification equipments.

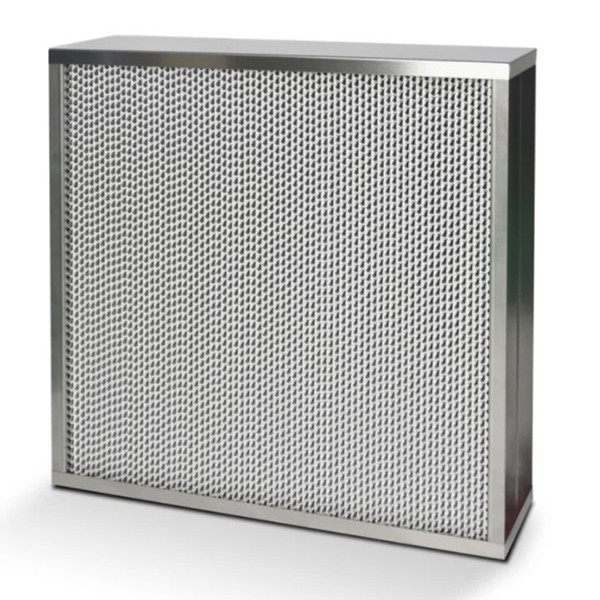

H13 H14 HEPA Separator Filter Element Multipurpose For Clean Room 1


Technical Parameters

size(W*H*D)mm Efficiency EN1822 Airflow/InitiaL Pressure Area
305*610*150 H13 500/220 3.28
610*610*150 H13 1000/220 6.42
305*610*220 H13 670/220 5.31
610*610*220 H13 1370/220 10.56
305*610*292 H13 1000/250 7.27
610*610*292 H13 2000/250 14.24
305*610*150 H14 500/260 3.28
610*610*150 H14 1000*260 6.42
305*610*220 H14 670/260 5.31
610*610*220 H14 1340/260 10.56
305*610*292 H14 1000/280 7.27
610*610*292 H14 2000/280 14.24
