| Place of Origin: | China |
|---|---|
| Brand Name: | Comfort |
| Model Number: | SF-H series |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 100000pcs |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T |
| Structure Type: | Separator Box Filter | Filter Medium: | Fiberglass, PTFE |
|---|---|---|---|
| Efficiency: | H13 H14 | MPPS Efficency: | H13≥99.95%, H14≥99.995% |
| Temperature Resistance: | 70℃ | Recommended Final Pressure: | 600 Pa |
| High Light: | Practical HEPA 14 Filter,Aluminum Foil HEPA 14 Filter,Anticorrosive Mini Pleat HEPA Filter |
||

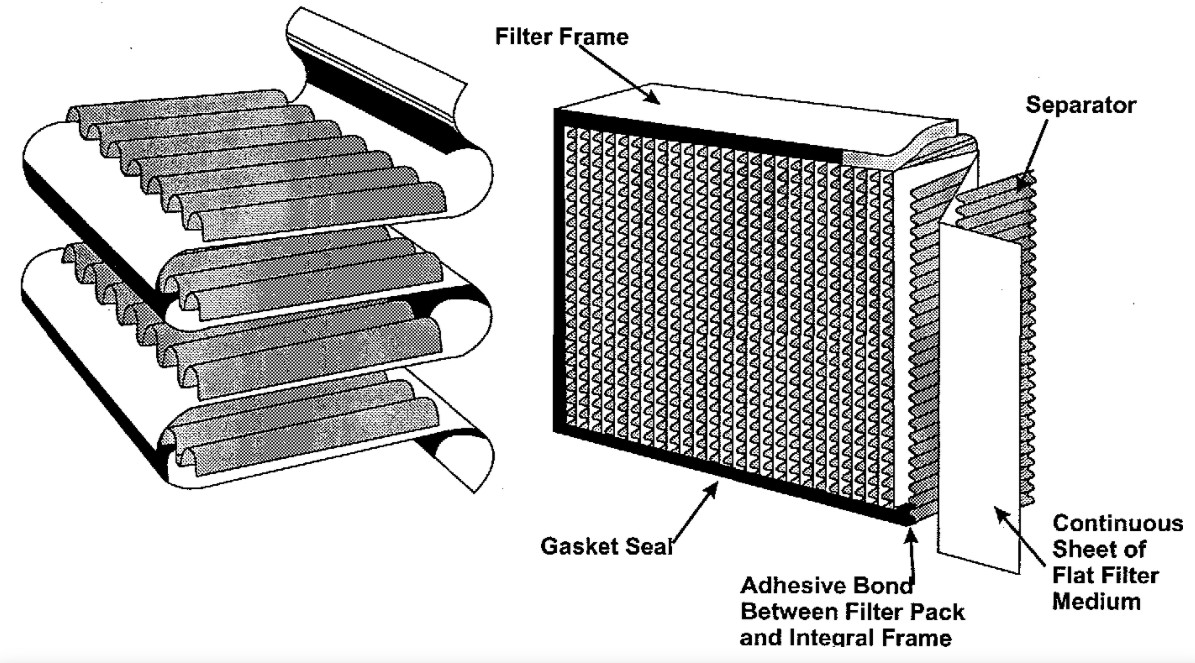

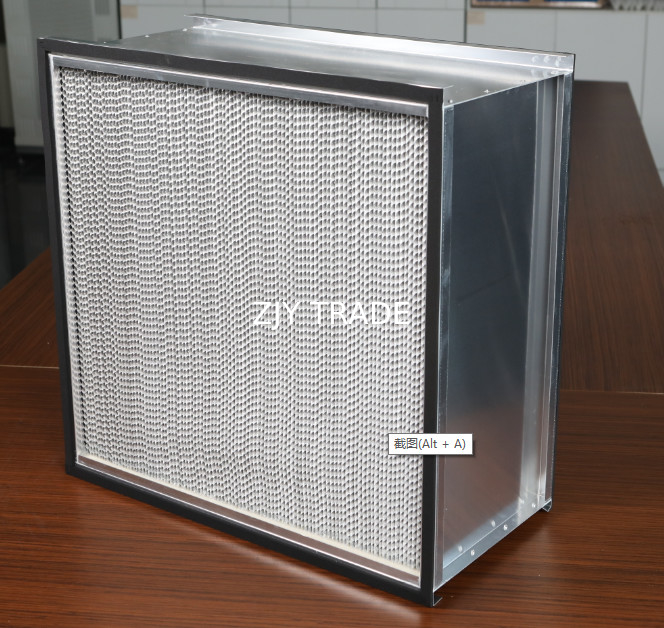

This HEPA filter with Aluminum Separator filter is constructed with galvanized steel frame with a continuous band of media pleated back and forth over corrugated aluminum separators.
The filters contain a two-part polyurethane, which assures a positive seal of the media pack and frame.
The tapered corrugated separators allow almost 2x of the air flow and effectively protect the pleats edge and assure the pleat spacing during operation.
| Model Dimensions (W×H×D) mm |
Filter grade EN 779/EN1822 |
Airflow / pressure drop m³/h / Pa (± 15%) |
Area (m2) |
|---|---|---|---|
| 305x610x150 | H13 | 800/260 | 5.11 |
| 610x610x150 | H13 | 2000/260 | 10.49 |
| 305x610x220 | H13 | 1350/260 | 8.23 |
| 610x610x220 | H13 | 2600/260 | 16.49 |
| 305x610x292 | H13 | 1700/280 | 11.34 |
| 610x610x292 | H13 | 3400/280 | 23.26 |
| 305x610x150 | H14 | 800/280 | 5.11 |
| 610x610x150 | H14 | 2000/280 | 10.49 |
| 305x610x220 | H14 | 1350/280 | 8.23 |
| 610x610x220 | H14 | 2600/280 | 16.49 |
| 305x610x292 | H14 | 1700/300 | 11.34 |
| 610x610x292 | H14 | 3400/300 | 23.26 |
* Customization accepted.
| Frame | Galvanized steel sheet |
| Separator | Aluminum foil |
| Media | Glass Fiber |
| Gasket | CR/EVA/EPDM/PU |
| Sealant | Polyurethane |
