M6 Glassfiber Synthetic Fiber Galvanized Frame Separator Filter 305X610X292

Basic Information
Place of Origin: China
Model Number: SF-F
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Neutral Packaging
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Detail Information
Material: Glassfiber / Synthetic Fiber Efficiency: M6, F7, F8, F9
Structure: Box With Separators Specifications: 305x610x292
Temperature: ≤70℃ Humidity: 100%RH
High Light:

Glassfiber Separator Filter Element


Synthetic Fiber Separator Filter


Galvanized Frame Separator Filter

Product Description

M6 Glassfiber Synthetic Fiber 305X610X292 Galvanized Frame Separator Filter


Product Features:
  • High structural strength
  • Stable efficiency
  • high air handling capacity
  • High dust holding capacity
  • Long service life


Frame Extruded aluminum, Aluminum sheet, Galvanizedsteel sheet, Stainless steel sheet, wooden-frame
Separator Aluminum foil, Paper
Media Glass fiber, Synthetic fiber
Sealant Polyurethane


Technical Parameters:


Type Model Size(W x H x D)
Airflow/Initial Pressure
m3/h/Pa(± 15%)
SF-F S06AG-305610292 305x610x292 M6 1700/77 6.69
SF-F S06AG-610610292 610x610x292 M6 3400/77 13.66
SF-F S07AG-305610292 305x610x292 F7 1700/115 6.69
SF-F S07AG-610610292 610x610x292 F7 3400/115 13.66
SF-F S08AG-305610292 305x610x292 F8 1700/135 6.69
SF-F S08AG-610610292 610x610x292 F8 3400/135 13.66
SF-F S09AG-305610292 305x610x292 F9 1700/150 6.69
SF-F S09AG-610610292 610x610x292 F9 3400/150 13.66
Different sizes and specifications are available


Detailed Photos:

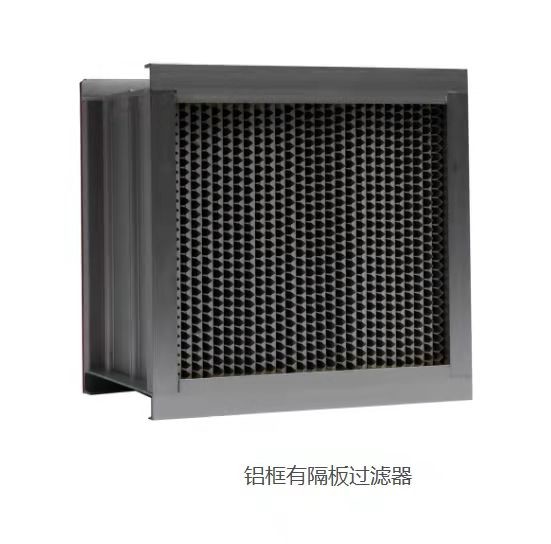

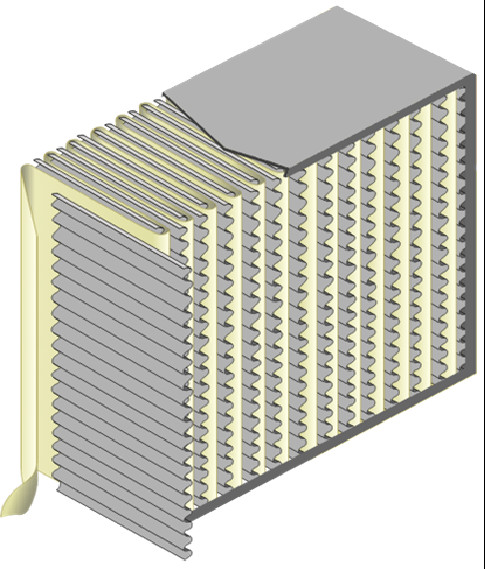

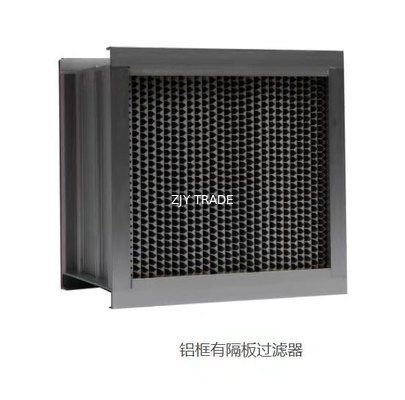

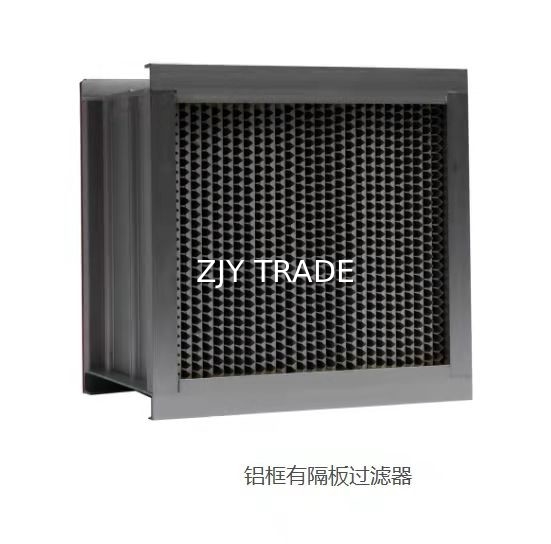

M6 Glassfiber Synthetic Fiber Galvanized Frame Separator Filter 305X610X292 0
