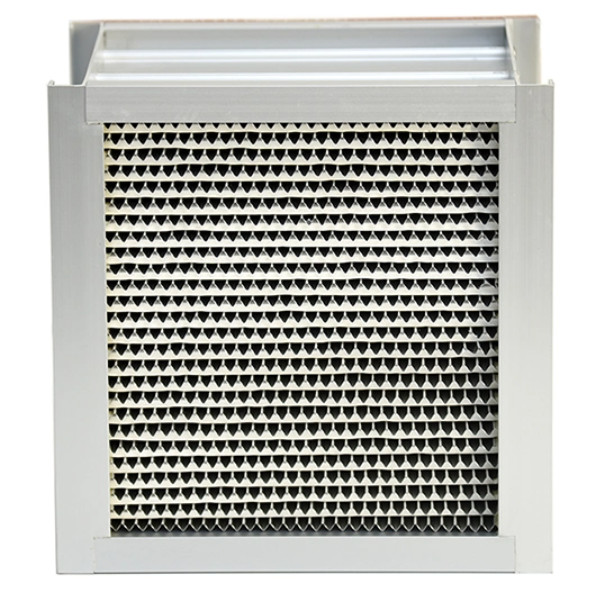

OEM PTFE Pleated Air Separator Filter Element Stainless Steel Frame

Basic Information
Place of Origin: China
Brand Name: Local Brand
Certification: CAN/ULC S111
Model Number: Separator HEPA filter
Minimum Order Quantity: 100
Price: usd 89-499 pcs
Packaging Details: pallet
Delivery Time: 14 workdays
Payment Terms: T/T
Supply Ability: 100000 pcs/year
Detail Information
Frame: Stainless Steel Separator: Aluminum
Sealant: Ceramic, Glass Fiber Media: Glass Fiber, PTFE
Gasket: Glass Fiber Temperature: 150/250/300
Transport Package: Carton Outside With Plastic Bag Inside Specification: OEM
High Light:

OEM Separator Filter Element


PTFE Separator Filter Element


Stainless Steel Pleated Air Filter

Product Description

Stainless Steel High Temperature Resistant Separator Filter Element Pleated Air Filter


Production instruction:

Pleated HEPA filter are divided into paper separator high-efficiency filters, aluminum foil separator high-efficiency filters, and high-temperature resistant separator filters. It is used for terminal filtration of various clean rooms, various local purification equipment, and air filtration, paint, and air filtration of medium filters, pharmaceuticals, hospitals, cosmetics, semiconductor electronic precision machinery, food and other industries.
1. Pre-filter for high efficiency filter;
2. Intermediate filter of air conditioning system;
3. Main filters for clean room, commercial and industrial ventilation and air conditioning systems, such as high humidity ventilation and air conditioning systems, variable air ventilation and air conditioning systems, ventilation air conditioning systems with tight installation space, high fire protection requirements or high ventilation temperatures Air Conditioning System


Product Features:

Filter efficiency ranges from E10 to H14.
Stainless steel frame with special high temperature gasket, operating temperature can reach 250ºC or 350ºC.
Adopt special folding machine for manufacturing.
Use special fiberglass paper as the filter material, good stability of filtration efficiency.
Use special aluminum foil as separator.
Metal meshes as supporter in double sides, effectively protect filter media and make the whole filter in good strength.
Each filter is through rigorous test after anti-evaporation treatment.
Each HEPA filter is tested according to EN1822: 2009.
Passed international UL certification and SGS test report.


Material Instructions:
Media: Special fiberglass paper.
Frame: Stainless steel.
Separator: Special aluminum foil.
Sealant: Special temperature resistant silica gel.
Temperature: 250°C-350°C in continuous service

OEM PTFE Pleated Air Separator Filter Element Stainless Steel Frame 0

OEM PTFE Pleated Air Separator Filter Element Stainless Steel Frame 1


1. Used in High class purifying equipment;
2. Used as the final filter of purification system and as purification equipments and clean room purification equipments.


OEM PTFE Pleated Air Separator Filter Element Stainless Steel Frame 2


Technical Parameters

size(W*H*D)mm Efficiency EN1822 Airflow/InitiaL Pressure Area
305*610*150 H13 500/220 3.28
610*610*150 H13 1000/220 6.42
305*610*220 H13 670/220 5.31
610*610*220 H13 1370/220 10.56
305*610*292 H13 1000/250 7.27
610*610*292 H13 2000/250 14.24
305*610*150 H14 500/260 3.28
610*610*150 H14 1000*260 6.42
305*610*220 H14 670/260 5.31
610*610*220 H14 1340/260 10.56
305*610*292 H14 1000/280 7.27
610*610*292 H14 2000/280 14.24



OEM PTFE Pleated Air Separator Filter Element Stainless Steel Frame 3
