| Place of Origin: | China |
|---|---|
| Certification: | CAN/ULC S111 |
| Model Number: | Pleated Filter Element |
| Minimum Order Quantity: | 100 |
| Price: | USD 15-59/PIECE |
| Packaging Details: | PALLET |
| Delivery Time: | 14 workdays |
| Supply Ability: | 100000 pcs/year |
| Frame Material: | Extruded Aluminum | Separator: | Hot-Melt Beads |
|---|---|---|---|
| Media: | Glass Fiber, PTFE | Gasket: | Cr, EVA, EPDM, PU |
| Face Guard: | Baking Finish | Temperature: | 70ºC |
| Transport Package: | Carton With Plastic Bag | HS Code: | 8421999000 |
| High Light: | Glassfiber Pleated Filter Element,Hospital Pleated Filter Element,PTFE Filter Element Replacement |
||

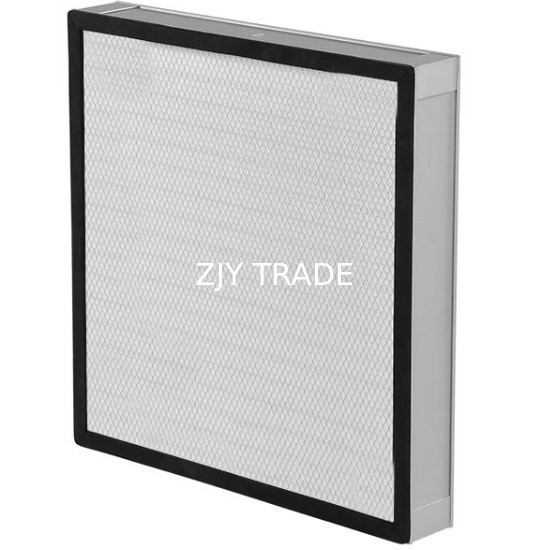

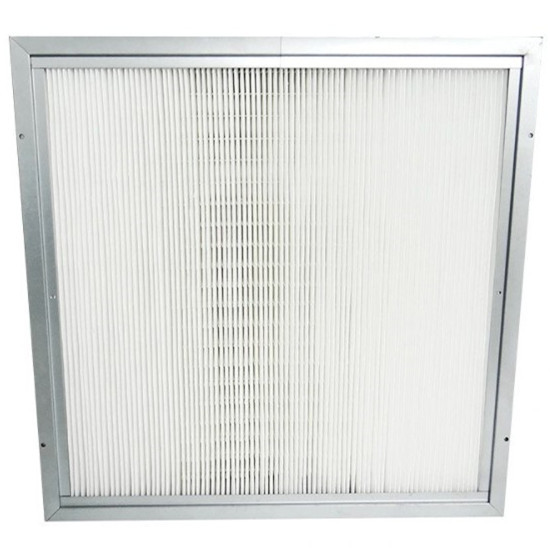

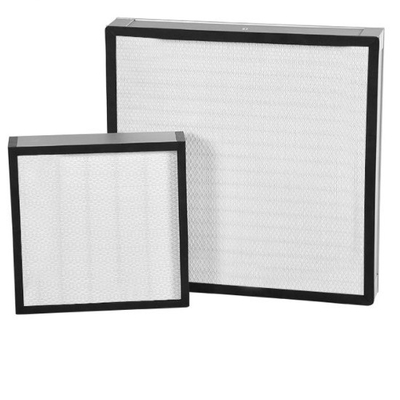

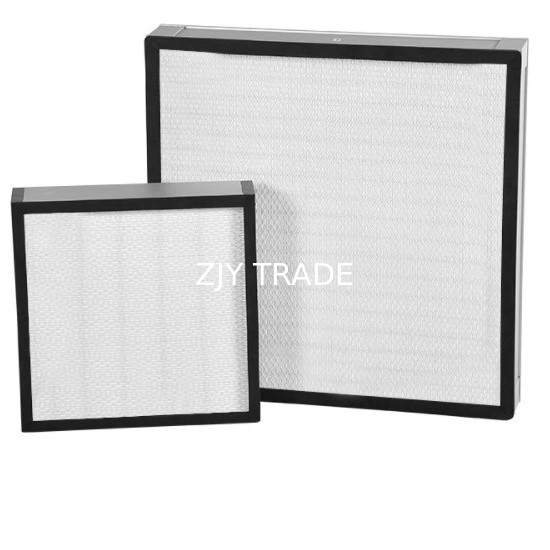

Glass Fiber PTFE Pleated Filter Element For Clean Room And Hospital
Product Description:
Features
1. Mini-pleat design, operational cost saving
2. Wide application, compact design, space-saving
3. Ultra-thin design, installation space-saving
4. Efficiency:99.95%@MPPS(H13) 99.995%@MPPS(H14)
Applications: Applicable to clean room and other area with stringent clean air requirements
Applicable conditions: Working temperature(ºC) ≤ 70(158ºF)
Standard Size
We not only produce all kinds of different normal size Mini-pleat HEPA filter,but also accept all kinds of customized size Mini-pleat HEPA filter.Please choose what size you want to buy refer to the below table.
| Model Dimensions (W×H×D) mm |
Filter grade EN1822 |
Airflow / pressure drop m³/h / Pa (± 15%) | Unit volume m³ |
| 610x610x50 | H13 | 603/130 | 0.041 |
| 1170X1170X50 | H13 | 2218/125 | 0.082 |
| 1170x570x50 | H13 | 1080/130 | 0.073 |
| 610x610x70 | H13 | 603/110 | 0.026 |
| 1170X1170X70 | H13 | 2218/105 | 0.052 |
| 1170x570x70 | H13 | 1080/110 | 0.046 |
| 610x610x90 | H13 | 603/85 | 0.033 |
| 1170X1170X90 | H13 | 2218/80 | 0.066 |
| 1170x570x90 | H13 | 1080/85 | 0.060 |
| 610x610x50 | H14 | 603/140 | 0.041 |
| 1170X1170X50 | H14 | 2218/135 | 0.082 |
| 1170x570x50 | H14 | 1080/140 | 0.073 |
| 610x610x70 | H14 | 603/120 | 0.026 |
| 1170X1170X70 | H14 | 2218/115 | 0.052 |
| 1170x570x70 | H14 | 1080/120 | 0.046 |
| 610x610x90 | H14 | 603/95 | 0.033 |
| 1170X1170X90 | H14 | 2218/90 | 0.066 |
| 1170x570x90 | H14 | 1080/95 | 0.060 |
