| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Neutral or Local |
| Model Number: | JSZ160\SSZ160 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Neutral Packaging / Customized |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | available |
| Structure: | Pleated Cartridge | Filtration Principle: | Surface / Pulse-jet |
|---|---|---|---|
| Bind Prcoess: | Hot Melt Glue + Ultrasonic Welding | Filter Material: | Long Fiber Spun Bond Polyester |
| Inner Mesh Process: | Full Welding With No Spots | Max Temp. HT Material: | 190℃ |
| Max Temp. Normal Material: | 130℃ | ||
| High Light: | Multipurpose Pleated Polyester Filter Cartridge,Practical Pleated Polyester Filter Cartridge,Stable Polyester Filter Cartridge |
||

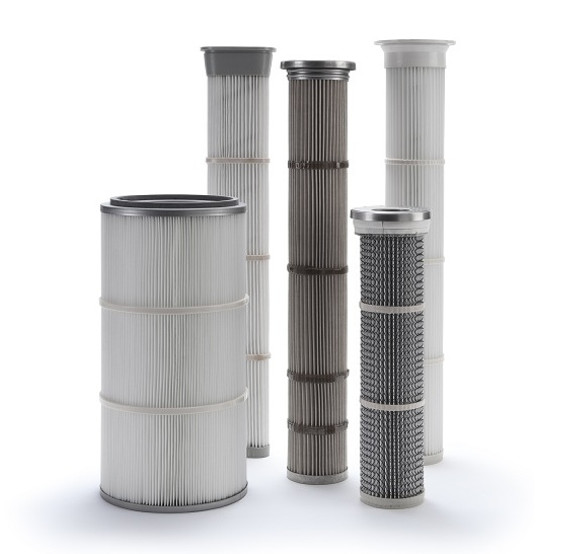

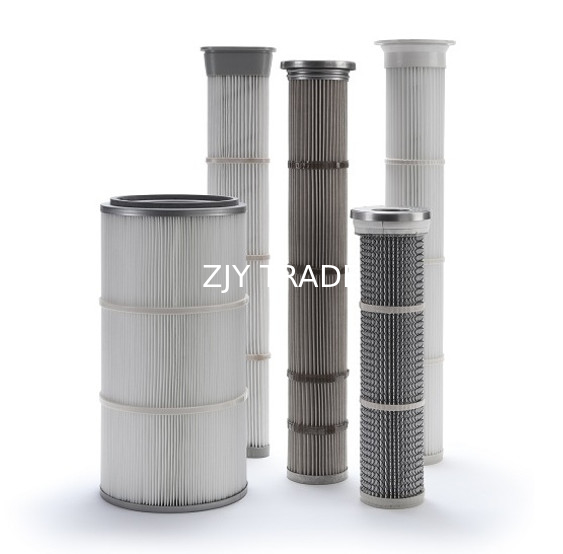

Polyester Pleated Filter Element for Industrial Applications
In traditional industrial working environments, dust or particles were/are collected by filter bags with inner support.
The bottom end of these bags is very easy to be worn during the operation cycle and, due to its structural design, the time and labor consuming for both general change over or maintenance is also a headache for many entrepreneurs.
Along with the always stricter emission demand, upgrading the filter bags to pleated filter cartridges has become popular and practical in recent years, in order to improve filtration efficiency and lower energy consumption mentioned here before.
It is specifically designed for each unique case and the whole system is easy to install and remove.
The pulse-jet material and structure can soundly extend the filter lifetime and shorten the machine shut-up timing.
| Model |
Inner Mesh φ mm |
Length m |
Std.Filtration Area m2 |
MAX Operating Temp. of normal material ℃ |
| JSZ160SSZ160 | 162/167 | 1 | 2.3 | 130 |
| JSZ160SSZ160 | 162/167 | 2 | 4.6 | 130 |
| JSZ160SSZ160 | 162/167 | 2.4 | 5.5 | 130 |
| JSZ160SSZ160 | 162/167 | 3 | 6.9 | 130 |
Std. parts fit the inner mesh among φ161-168mm.
Customized length, filtration area, and inner mesh are accepted.
Filtration Area Comparison:
|
Size mm |
Filter Bag m2 |
Pleated Filter Element m2 |
|---|---|---|
| 130*2000 | 0.8 | 3.5-4 |
| 130*3000 | 1.2 | 5.2-6 |
| 160*2000 | 1 | 4-6 |
| 160*3000 | 1.5 | 6-9 |
