| Place of Origin: | China |
|---|---|
| Brand Name: | Local Brand |
| Certification: | ISO9001 |
| Model Number: | Pleated Filter Element |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | carton and bubble pack |
| Delivery Time: | 10 working days |
| Supply Ability: | 100000pcs |
| Model NO.: | Pleated Filter Element | Frame: | Aluminum Sheet, Galvanized Steel Sheet, ABS |
|---|---|---|---|
| Recommended Final Pressure: | 600Pa | Separator: | Hot Melt |
| Media: | Glass Fiber | Efficiency: | H13,H14,U15 |
| High Light: | ABS Pleated Filter Element,600Pa Pleated Filter Element,3 Micron Mini Pleat HEPA Filter |
||

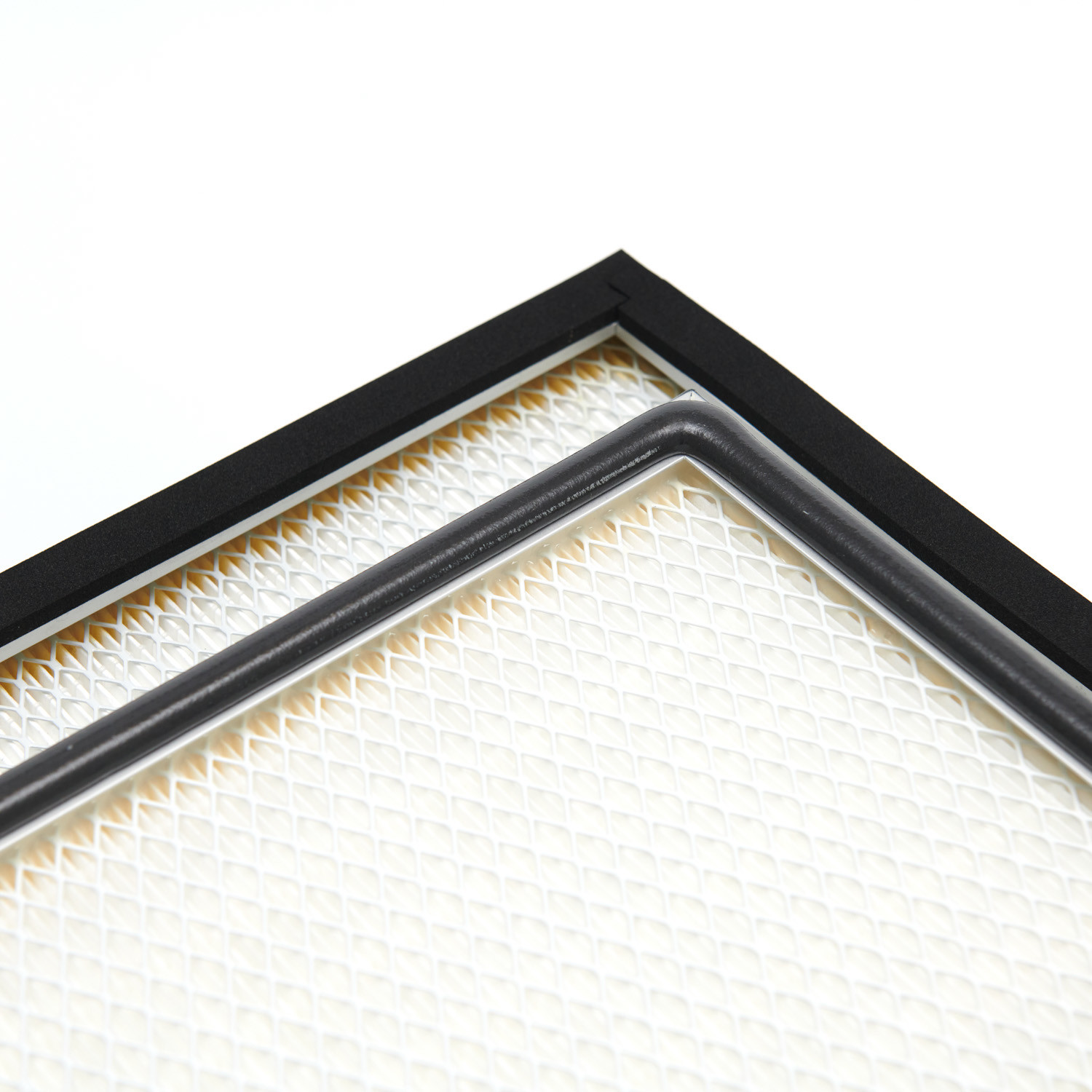

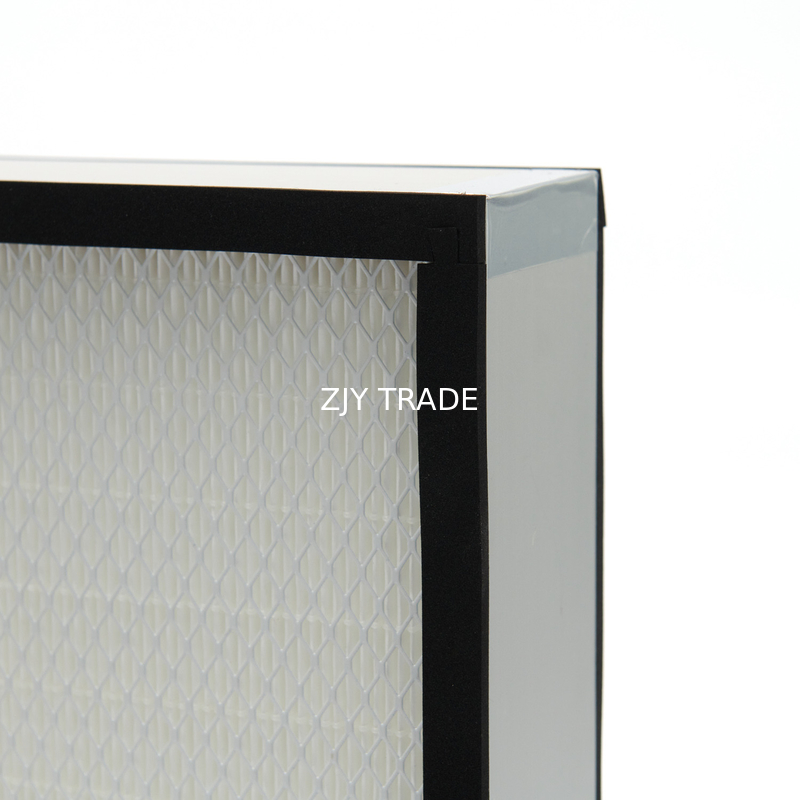

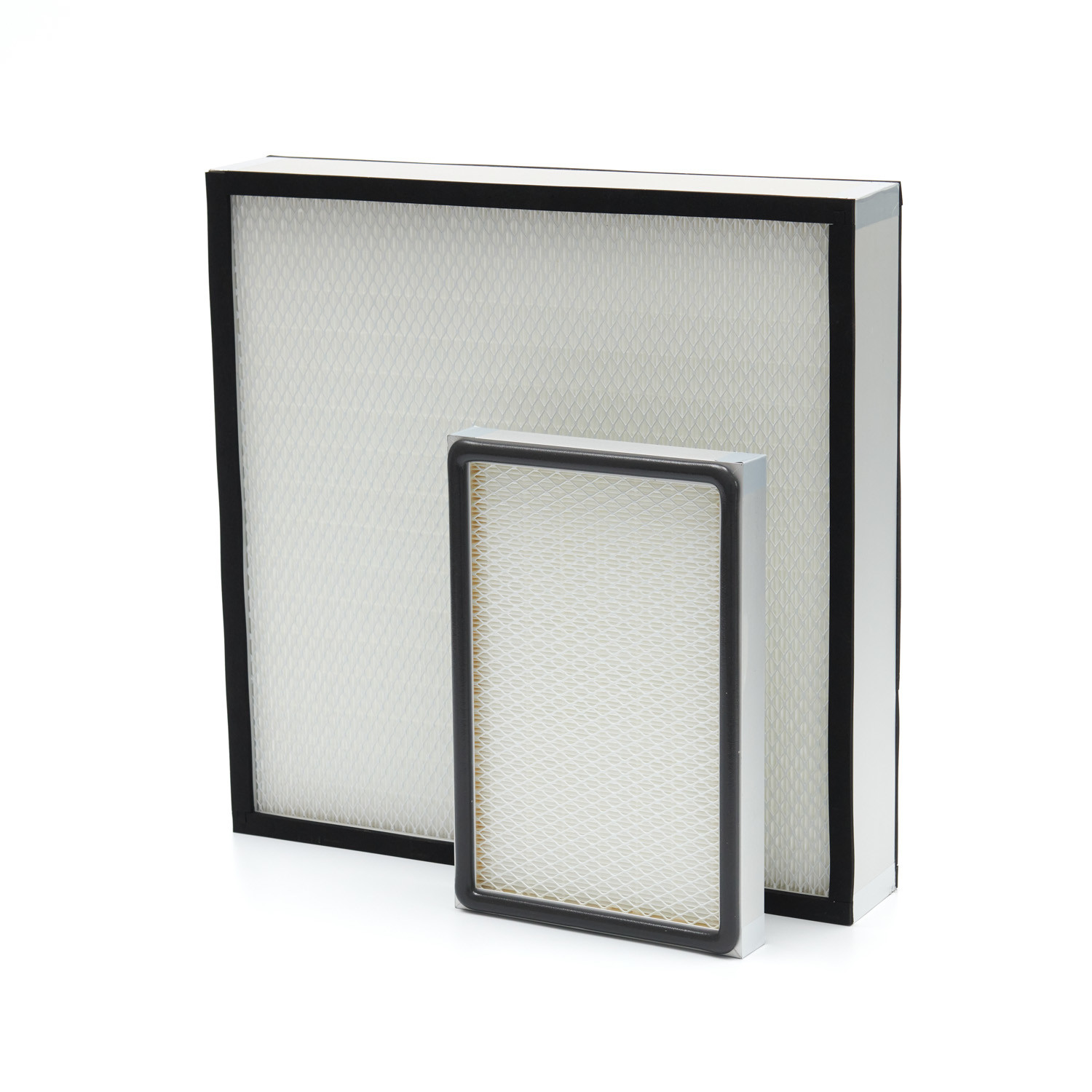

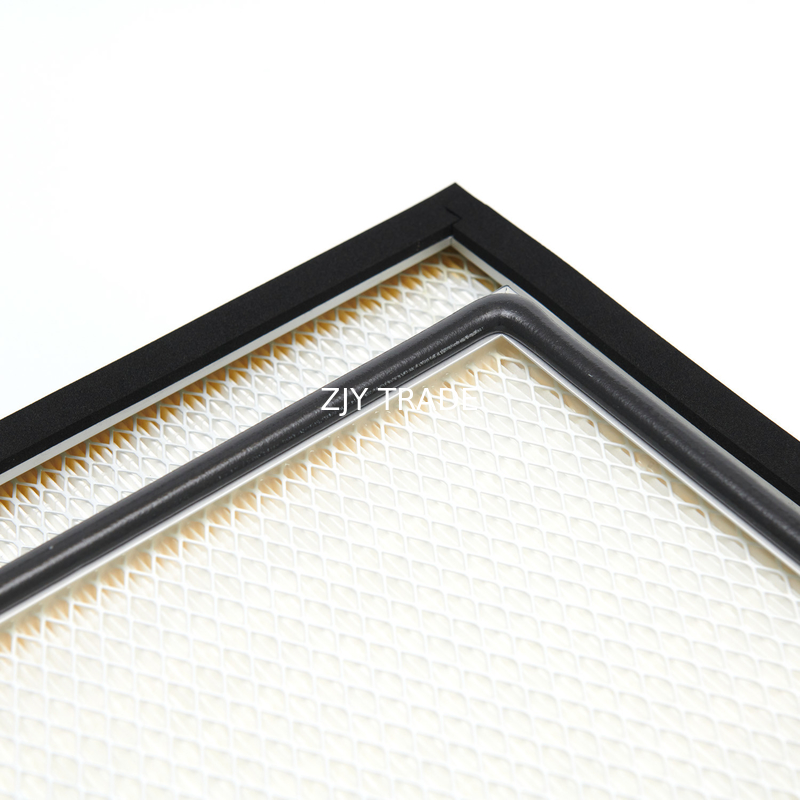

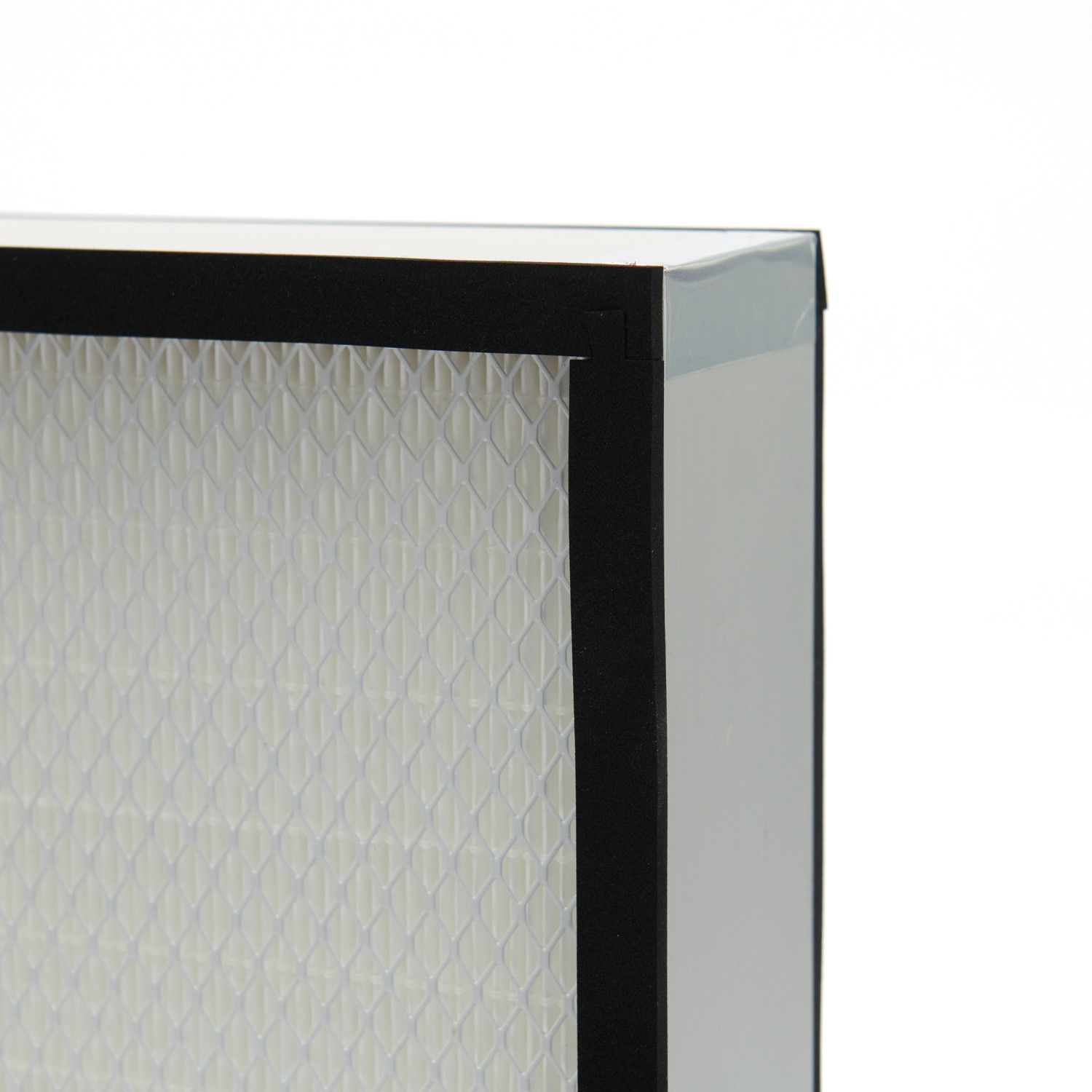

High Efficiency Pleated Filter Element Mini Pleat HEPA Air Filter for Clean Room Air Purification System
Description:
All heating and cooling air duct systems naturally collect dust and contaminants. Clean rooms, such as those used in the electronics, pharmaceutical, and medical industries, require a controlled environment free of dust, airborne particles, and other contaminants. Ultra low particulate air (ULPA) filters and high efficiency particulate air (HEPA) filters are used in commercial air filtration systems to trap extremely small particulate contaminants.
HEPA filters are 99.97% effective for eliminating particulate matter of 0.3-micron diameter or larger. HEPA filters can be combined with pre filters to trap larger particles before they come into contact with the main filter.
| Frame | Anodized aluminum;Stainless steel;MDF |
| Medium | Micro glass-fiber |
| Gasket | Dove-tailed EPDM;Endless PU foam |
| Max.working temperature | 80ºC |
Advantages:·
High efficiency(capturing 0.3μm particles)
Low resistance
Thin thickness(minimum:25mm)
Light weight
Easy to install
Each filter has scanning test
Application:
It is applied to the FFU, cleaning equipment, blow of the cleanroom. And also be widely used in the electronic, semiconductor, hospital and food industry.
Type: high efficiency foldaway filter
Frame: aluminum or galvanized frame
Separation material: hot melt adhesive
Media: fiber glass filter paper
Final resistance: (suggested) 600Pa
Max. air flow: 125% of the rated air flow
Temp. resistance: 80ºC
Humidity:≤80%RH
Relationship between resistance and wind speed
