| Place of Origin: | China |
|---|---|
| Brand Name: | Local Brand |
| Certification: | ISO9001 |
| Model Number: | Pleated Filter Element |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | carton and bubble pack |
| Delivery Time: | 10 working days |
| Supply Ability: | 100000pcs |
| Model NO.: | Pleated Filter Element | Frame: | Aluminum Sheet, Galvanized Steel Sheet, ABS |
|---|---|---|---|
| Separator: | Hot Melt | Media: | Glass Fiber |
| Efficiency: | H13,H14,U15 | Recommended Final Pressure: | 600Pa |
| Filtration Grade: | HEPA Filter | Type: | Panel Filter |
| High Light: | Non Corroding HEPA Filter Mini Pleat,HVAC HEPA Filter Mini Pleat,Waterproof HVAC Air Filter |
||

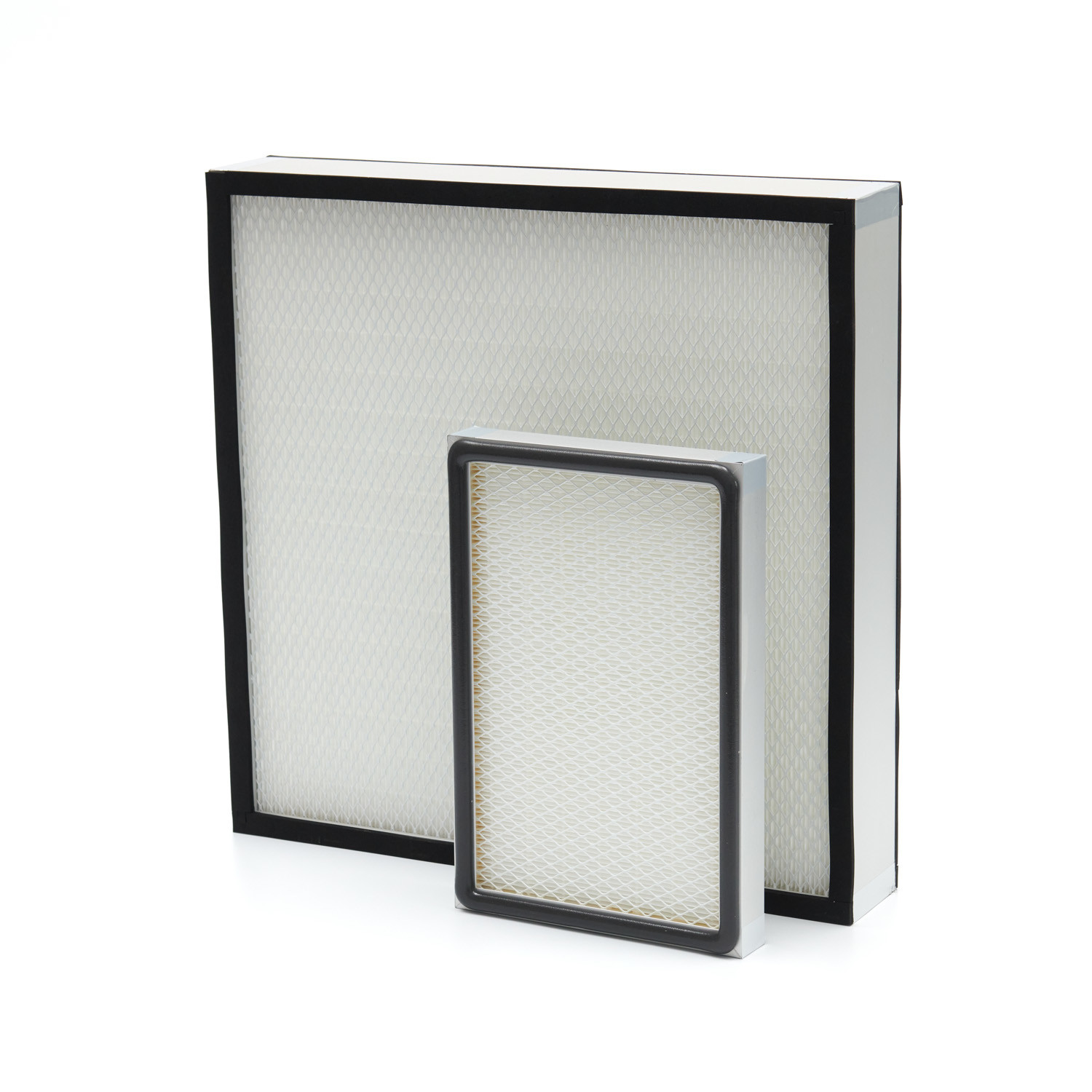

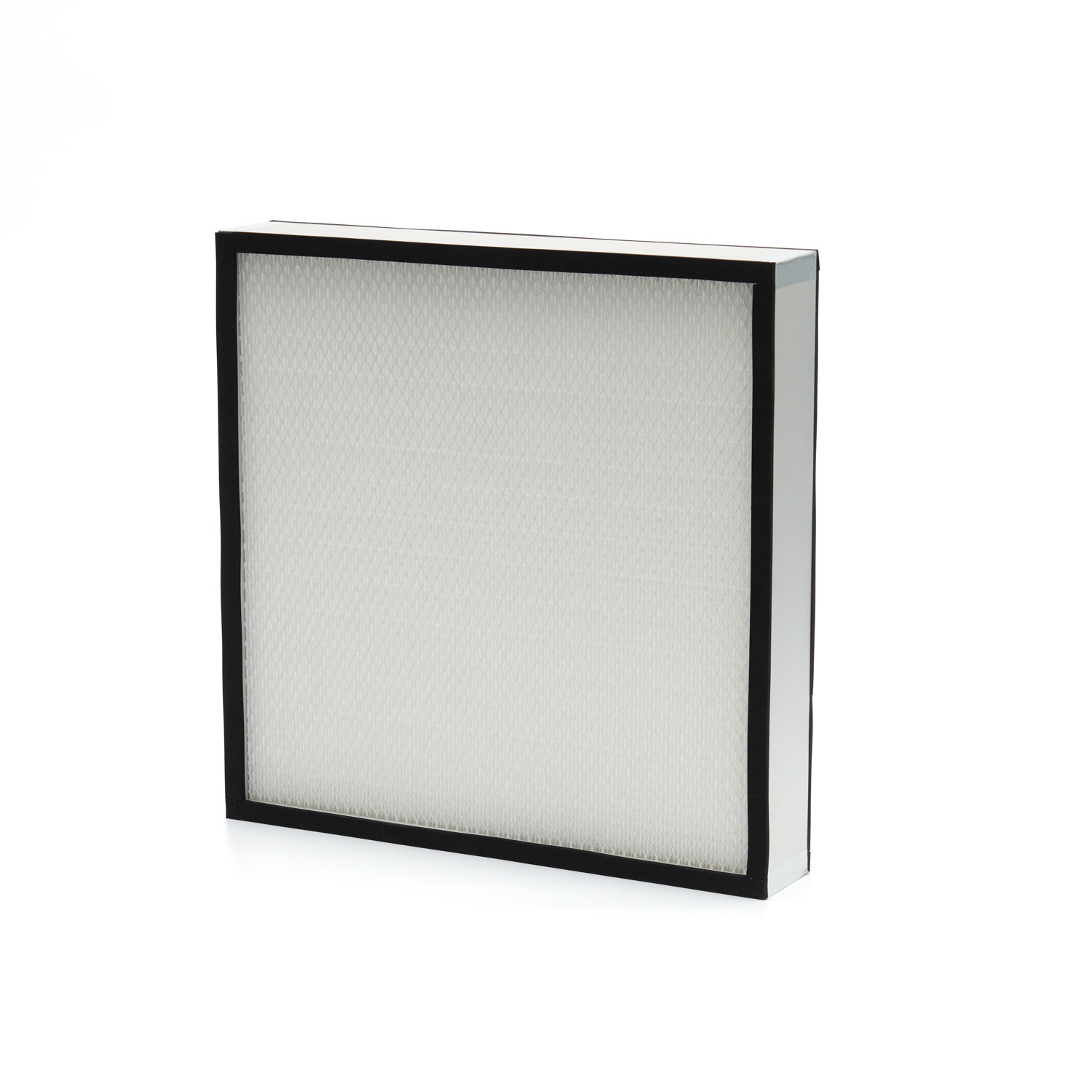

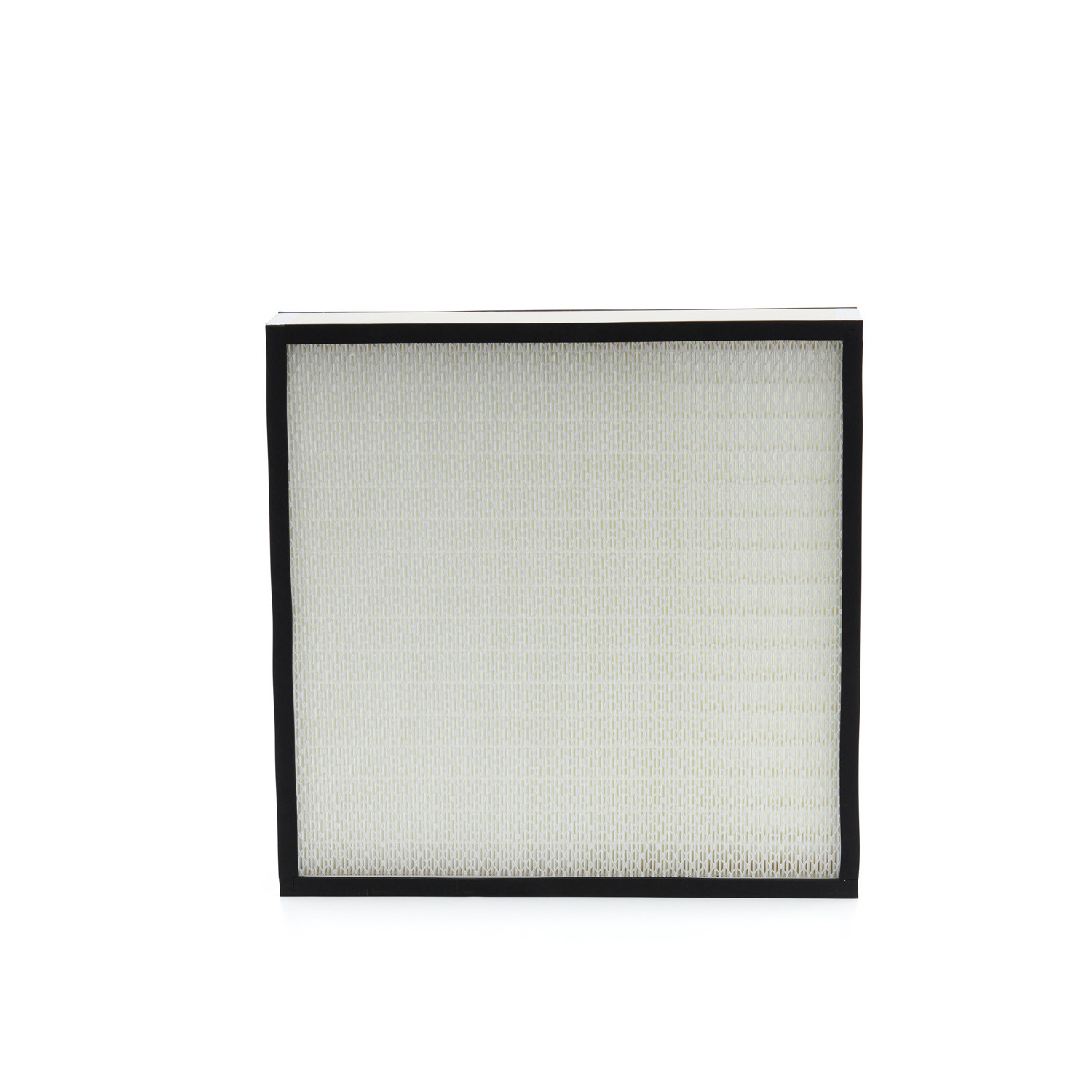

Pleated Filter Element Minipleat HEPA Filter for HVAC System with High Grade Purification Equipment
Description:
100% scanning leak test, water-proof low resistance media,light weight,none-corroding,dependable seal system.Used as terminal air filtration for clean-room with ultra-stringent requirements for clean air quality and sterility in industrial processes like pharmaceuticals,photovataic,electronics;Also used in supply/exhaust system of hospital operating theaters,intensive care units and of purifying equipment like biological safety cabinet and pass throught cabinet.
All heating and cooling air duct systems naturally collect dust and contaminants. Clean rooms, such as those used in the electronics, pharmaceutical, and medical industries, require a controlled environment free of dust, airborne particles, and other contaminants. Ultra low particulate air (ULPA) filters and high efficiency particulate air (HEPA) filters are used in commercial air filtration systems to trap extremely small particulate contaminants.
| Frame | Anodized aluminum;Stainless steel;MDF |
| Medium | Micro glass-fiber |
| Gasket | Dove-tailed EPDM;Endless PU foam |
| Max.working temperature | 80ºC |
Standard specifications:
| Size | Efficiency | Airflow/Initial Pressure | Area |
| (W*H*D)mm | EN1822 | m³/h/Pa(±15%) | m² |
| 610*610*50 | H13 | 603/130 | 8.11 |
| 1170*1170*50 | H13 | 2218/125 | 29.72 |
| 1170*570*50 | H13 | 1080/130 | 14.83 |
| 610*610*70 | H13 | 603/110 | 10.97 |
| 1170*1170*70 | H13 | 2218/105 | 41.78 |
| 1170*570*70 | H13 | 1080*110 | 20.08 |
| 610*610*90 | H13 | 603/85 | 13.48 |
| 1170*1170*90 | H13 | 2218/80 | 50.12 |
| 1170*570*90 | H13 | 1080/85 | 25.92 |
| 610*610*50 | H14 | 603/140 | 8.11 |
| 1170*1170*50 | H14 | 2218/135 | 29.72 |
| 1170*570*50 | H14 | 1080/140 | 14.83 |
| 610*610*70 | H14 | 603/120 | 10.97 |
| 1170*1170*70 | H14 | 2218/115 | 41.78 |
| 1170*570*70 | H14 | 1080/120 | 20.08 |
| 610*610*90 | H14 | 603/95 | 13.48 |
| 1170*1170*90 | H14 | 2218/90 | 50.12 |
| 1170*570*90 | H14 | 1080/95 | 25.92 |
Advantages:·
High efficiency(capturing 0.3μm particles)
Low resistance
Thin thickness(minimum:25mm)
Light weight
Easy to install
Each filter has scanning test
Application:
It is applied to the FFU, cleaning equipment, blow of the cleanroom. And also be widely used in the electronic, semiconductor, hospital and food industry.
Type: high efficiency foldaway filter
Frame: aluminum or galvanized frame
Separation material: hot melt adhesive
Media: fiber glass filter paper
Final resistance: (suggested) 600Pa
Max. air flow: 125% of the rated air flow
Temp. resistance: 80ºC
Humidity:≤80%RH
