| Place of Origin: | China |
|---|---|
| Brand Name: | Comfort |
| Certification: | IATF 16949, ISO 9001, ISO 14000 |
| Model Number: | G14AG-416416093 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | PP Bag + Carton |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000 pcs/month |
| Efficiency EN1822: | H14, U15 | Medium: | Fiberglass |
|---|---|---|---|
| Structure Type: | Mini-pleat Filter | MPPS Efficiency: | H14≥99.95%, U15≥99.9995% |
| Recommended Final Pressure: | 600Pa | Temperature: | ≤70℃ |
| High Light: | U15 Panel Air Filter,Non Corroding Panel Air Filter,600Pa ULPA HEPA Filter |
||

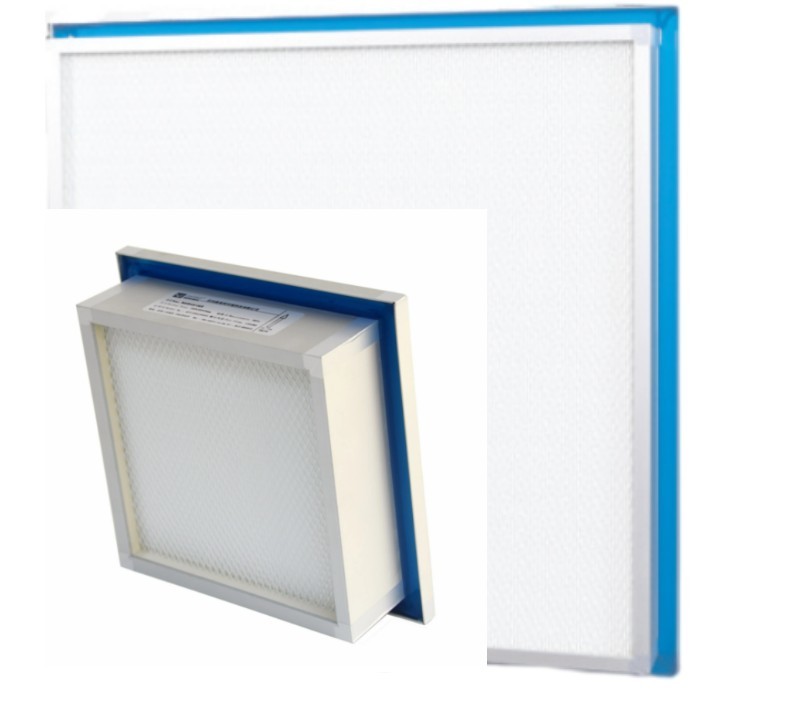

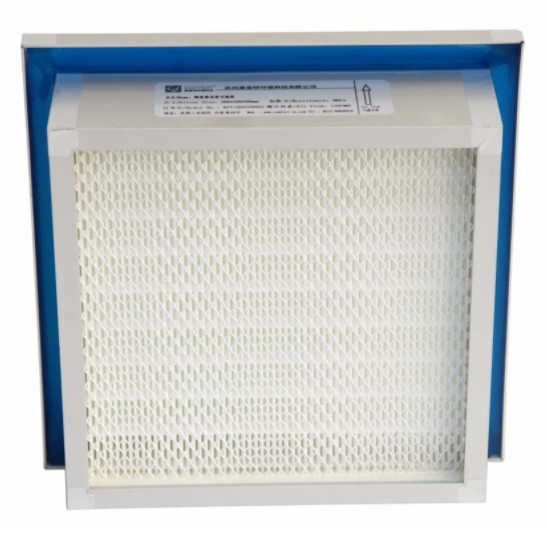

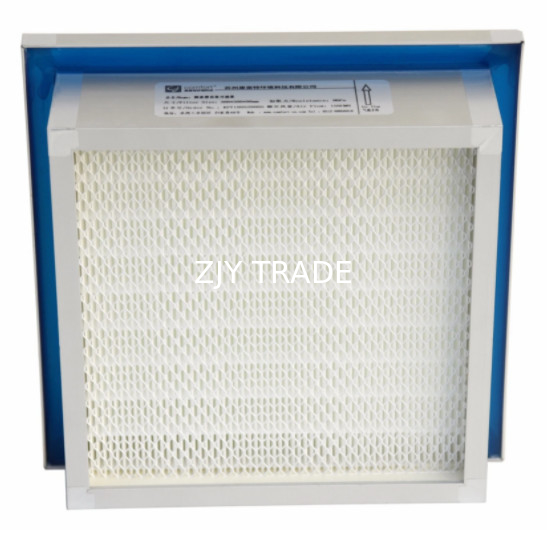

H14 U15 Gel seal mini pleat panel HEPA ULPA pleat filter element
The gel seal mini pleat air filter panels are designed for air supply systems at the end of the cleanroom or purification equipment like laboratories, semiconductor manufacturing, electronics, and pharmaceutical industries.
- Low Pressure
- High Efficiency
- Easy to Install
- Good sealing performance
- 100% scanned and tested according to EN1822 standard.
| Frame Material | Extruded aluminum |
|---|---|
| Separator | Hot melt |
| Media | Glass fiber |
| Gasket | CR, EVA, EPDM, PU |
| Face Guard | Coated mesh |
|
Efficiency EN1822 |
Size (WxHxD)mm |
Airflow/Initial Pressure m3/h/Pa (±15%) |
Area (m2) |
|---|---|---|---|
|
H14
|
416x416x93
|
280/100
|
5.1
|
|
H14 |
554x554x93 | 490/100 | 8.84 |
|
H14
|
915x610x93
|
900/100
|
17.54
|
| H14 | 1220x610x93 | 1200/100 | 24.19 |
|
H14
|
430x430x81
|
300/120
|
4.71
|
| H14 | 610x610x81 | 600/120 | 9.50 |
|
H14
|
915x610x81
|
830/120
|
14.26
|
| H14 | 1220x610x81 | 1200/120 |
19.02 |
|
U15
|
430x430x75
|
500/200
|
4.25
|
| U15 | 610x610x75 | 1250/200 | 9.10 |
|
U15
|
915x610x75
|
2000/200
|
14.12
|
| U15 | 1220x610x75 | 2500/200 | 18.84 |
|
U15
|
430x430x81
|
300/140
|
4.71
|
| U15 | 610x610x81 | 600/140 | 9.50 |
|
U15
|
915x610x81
|
830/140
|
14.26
|
| U15 | 1220x610x81 | 1200/140 | 19.02 |
