| Place of Origin: | China |
|---|---|
| Brand Name: | Comfort |
| Certification: | IATF 16949, ISO 9001, ISO 14000 |
| Model Number: | GF-HS |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | PP Bag + Carton |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000 pcs/month |
| Efficiency EN1822: | U15 | Medium: | Fiberglass |
|---|---|---|---|
| Structure Type: | Mini-pleat Filter | MPPS Efficiency: | U15≥99.9995% |
| Recommended Final Pressure: | 600Pa | Temperature: | ≤70℃ |
| High Light: | ULPA Panel Air Filter,Fiberglass Panel Air Filter,Aluminium ULPA U15 Filter |
||

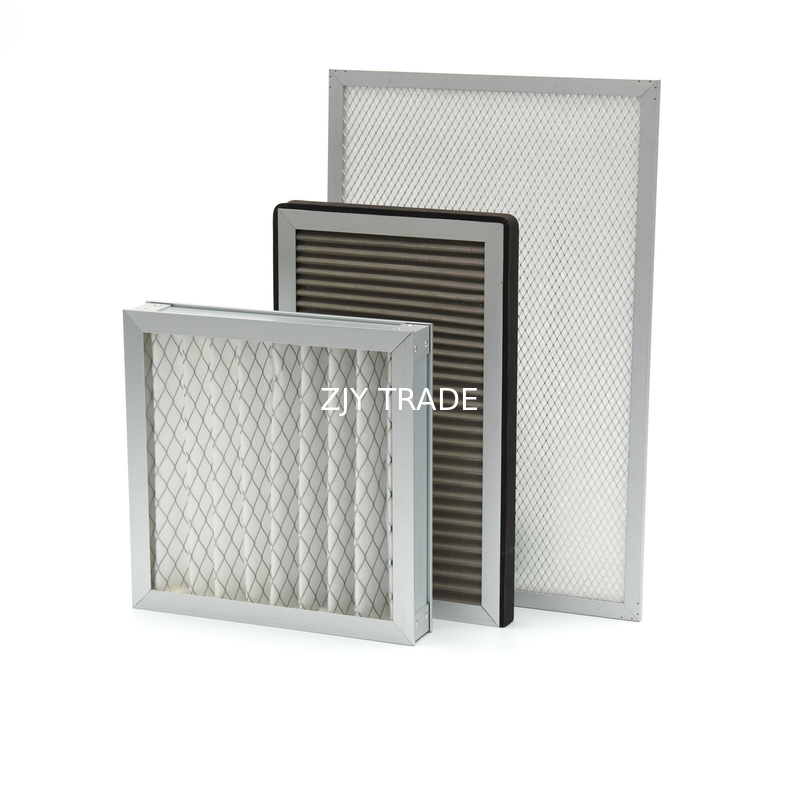

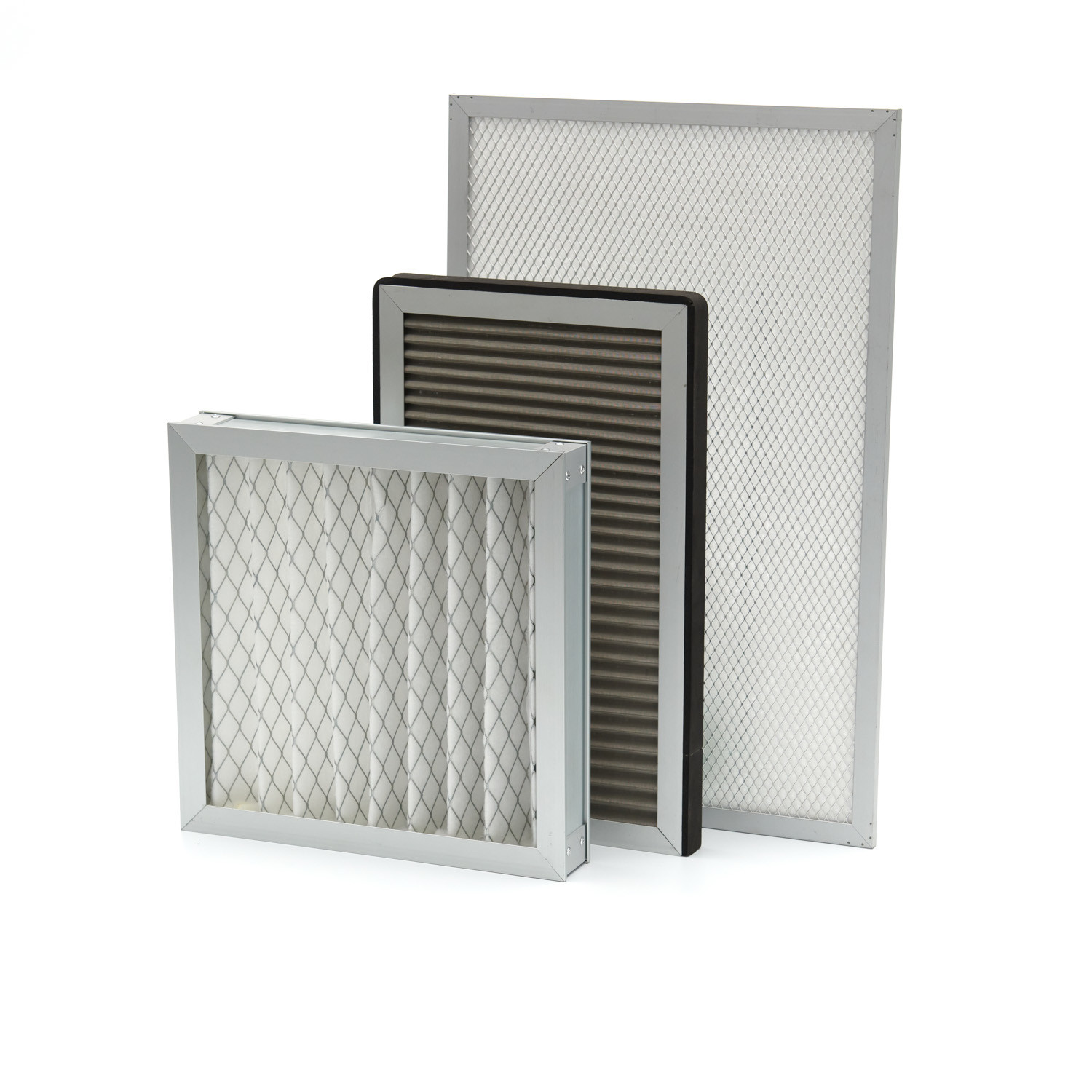

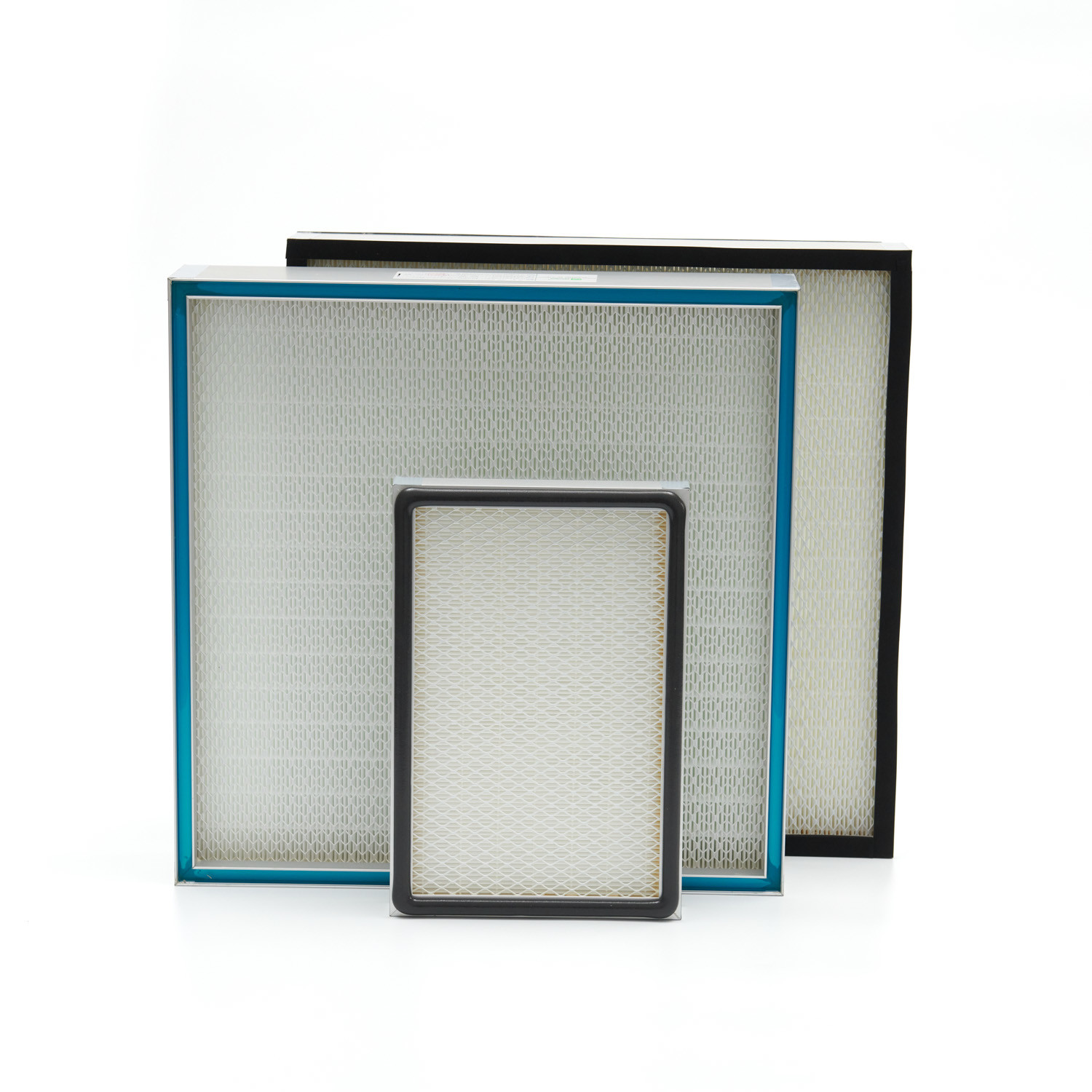

Gel Seal U15 Aluminium Frame Mini-pleat ULPA Panel Air Filter
The gel seal mini pleat air filter panels are designed for air supply systems at the end of the cleanroom or purification equipment.
It's widly used in semiconductor manufacturing, laboratories, pharmaceutical and cleanrooms where high purification efficiency is required.
- Low Pressure
- High Efficiency
- Easy to Install
- Good sealing performance
- 100% scanned and tested according to EN1822 standard.
| Frame Material | Extruded aluminum |
|---|---|
| Separator | Hot melt |
| Media | Glass fiber |
| Gasket | CR, EVA, EPDM, PU |
| Face Guard | Coated mesh |
|
Efficiency EN1822 |
Size (WxHxD)mm |
Airflow/Initial Pressure m3/h/Pa (±15%) |
Area (m2) |
|---|
|
U15
|
430x430x75
|
500/200
|
4.25
|
| U15 | 610x610x75 | 1250/200 | 9.10 |
|
U15
|
915x610x75
|
2000/200
|
14.12
|
| U15 | 1220x610x75 | 2500/200 | 18.84 |
|
U15
|
430x430x81
|
300/140
|
4.71
|
| U15 | 610x610x81 | 600/140 | 9.50 |
|
U15
|
915x610x81
|
830/140
|
14.26
|
| U15 | 1220x610x81 | 1200/140 | 19.02 |
