| Place of Origin: | China |
|---|---|
| Brand Name: | Local Brand |
| Certification: | ISO9001 |
| Model Number: | Panel Air Filter |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | carton and bubble pack |
| Delivery Time: | 10 working days |
| Supply Ability: | 100000pcs |
| Frame Material: | Extruded Aluminum,Aluminum Sheet,Galvanized Steel Sheet,Stainless Steel Sheet | Medium: | Glass-fiber,PTFE |
|---|---|---|---|
| Gasket: | CR,EVA,EPDM,PU | Max.working Temperature: | 70ºC |
| Structure Type: | Panel Air Filter | Efficiency: | U15,U16,H13,H14 |
| Recommended Final Pressure: | 500Pa | ||
| High Light: | 500Pa Panel Air Filter,Glassfiber Panel Air Filter,Cleanroom Pleated Panel Filter |
||

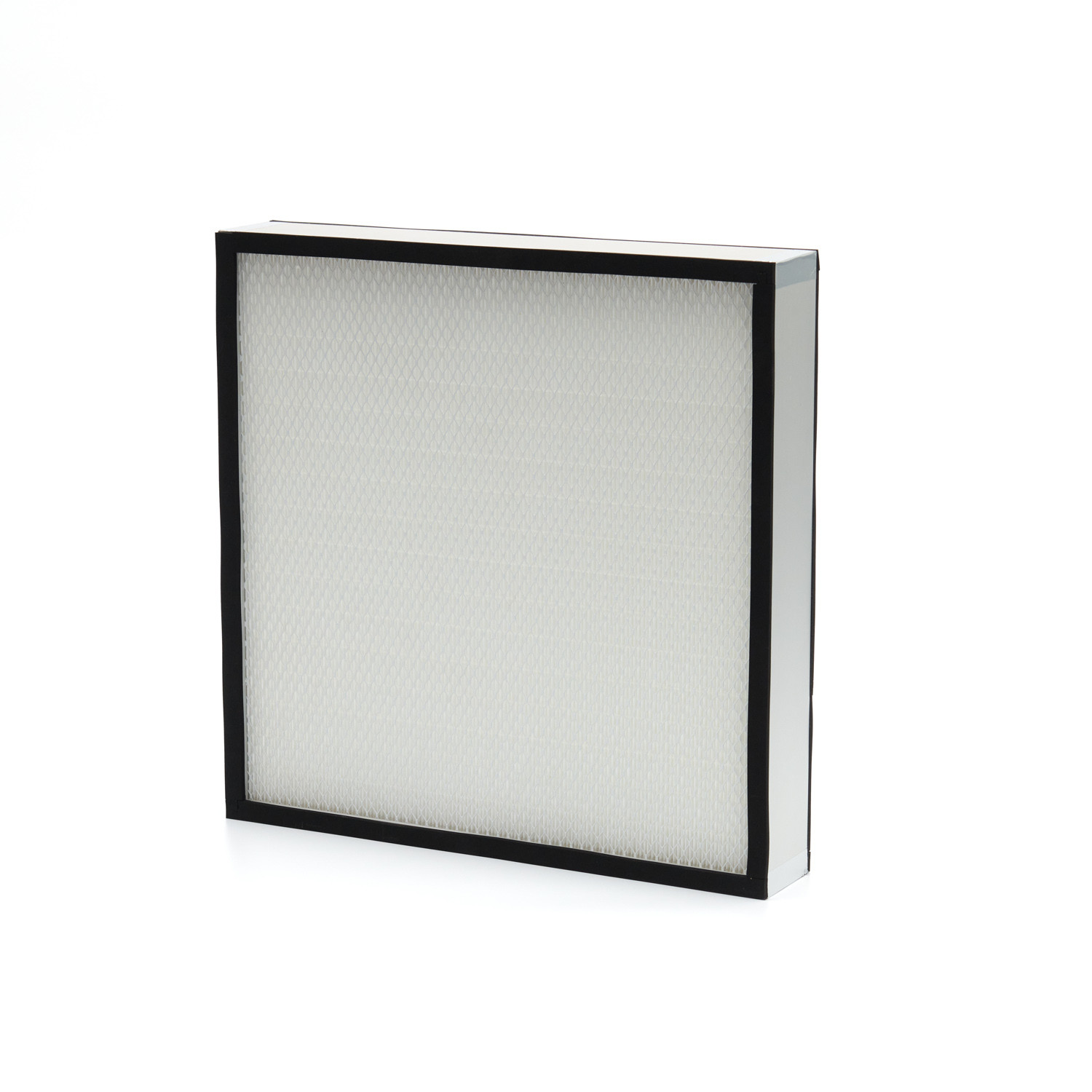

Low Pressure Drop Air Filters Air Filter Pleated Panel Air Filter For Clean Room
Materials and operating conditions:
| Frame material | Extruded aluminum,Aluminum sheet,Galvanized steel sheet,Stainless steel sheet |
| Medium | Glass-fiber, PTFE |
| Gasket | CR,EVA,EPDM,PU |
| Max.working temperature | 70ºC |
| Size | Efficiency | Airflow/Initial Pressure | Area |
| (W*H*D)mm | EN1822 | m³/h/Pa(±15%) | m² |
| 305*610*50 | U15 | 300/160 | 3.88 |
| 610*610*50 | U15 | 605/160 | 8.11 |
| 915*610*50 | U15 | 905/160 | 12.16 |
| 1170*570*50 | U15 | 1080/160 | 14.83 |
| 1170*1170*50 | U15 | 2000/160 | 29.72 |
| 305*610*70 | U15 | 300/145 | 4.53 |
| 610*610*70 | U15 | 605/145 | 9.51 |
| 915*610*70 | U15 | 905/145 | 14.05 |
| 1170*570*70 | U15 | 1080*145 | 17.40 |
| 1170*1170*70 | U15 | 2000/145 | 35.13 |
| 305*610*50 | U16 | 300/180 | 3.88 |
| 610*610*50 | U16 | 605/180 | 8.11 |
| 915*610*50 | U16 | 905/180 | 12.16 |
| 1170*570*50 | U16 | 1080/180 | 14.83 |
| 1170*1170*50 | U16 | 2000/180 | 29.72 |
| 305*610*70 | U16 | 300/160 | 4.53 |
| 610*610*70 | U16 | 605/160 | 9.51 |
| 915*610*70 | U16 | 905/160 | 14.05 |
| 1170*570*70 | U16 | 1080/160 | 17.40 |
| 1170*1170*70 | U16 | 2000/160 | 35.13 |
| Size | Efficiency | Airflow/Initial Pressure | Area |
| (W*H*D)mm | EN1822 | m³/h/Pa(±15%) | m² |
| 610*610*50 | H13 | 603/130 | 8.11 |
| 1170*1170*50 | H13 | 2218/125 | 29.72 |
| 1170*570*50 | H13 | 1080/130 | 14.83 |
| 610*610*70 | H13 | 603/110 | 10.97 |
| 1170*1170*70 | H13 | 2218/105 | 41.78 |
| 1170*570*70 | H13 | 1080*110 | 20.08 |
| 610*610*90 | H13 | 603/85 | 13.48 |
| 1170*1170*90 | H13 | 2218/80 | 50.12 |
| 1170*570*90 | H13 | 1080/85 | 25.92 |
| 610*610*50 | H14 | 603/140 | 8.11 |
| 1170*1170*50 | H14 | 2218/135 | 29.72 |
| 1170*570*50 | H14 | 1080/140 | 14.83 |
| 610*610*70 | H14 | 603/120 | 10.97 |
| 1170*1170*70 | H14 | 2218/115 | 41.78 |
| 1170*570*70 | H14 | 1080/120 | 20.08 |
| 610*610*90 | H14 | 603/95 | 13.48 |
| 1170*1170*90 | H14 | 2218/90 | 50.12 |
| 1170*570*90 | H14 | 1080/95 | 25.92 |
Product Description:
Features and applications:
100% leak test,making use of high-strength glassfiber medium,optium pleat geometry and equidistance,assured leak-proof mounting,long useful time and cost-effecient. HEPA/ULPA with Gel-channel/knife-edge fluid sealing system is widely used in Class 100 clean room for semiconductor and bio-pharmaceuticals,and also taken as end-filtration in hospitals and purifying equipment.
