| Place of Origin: | China |
|---|---|
| Brand Name: | Local Brand |
| Certification: | ISO9001 |
| Model Number: | Pleated Filter Element |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | carton and bubble pack |
| Delivery Time: | 10 working days |
| Supply Ability: | 100000pcs |
| Model NO.: | Pleated Filter Element | Frame: | Aluminum Sheet, Galvanized Steel Sheet, ABS |
|---|---|---|---|
| Separator: | Hot Melt | Media: | Glass Fiber |
| Efficiency: | H13,H14,U15 | Recommended Final Pressure: | 600Pa |
| Filtration Grade: | HEPA Filter | Type: | Panel Filter |
| High Light: | HEPA Panel Air Filter,600Pa Panel Air Filter,HVAC HEPA Panel Filter |
||

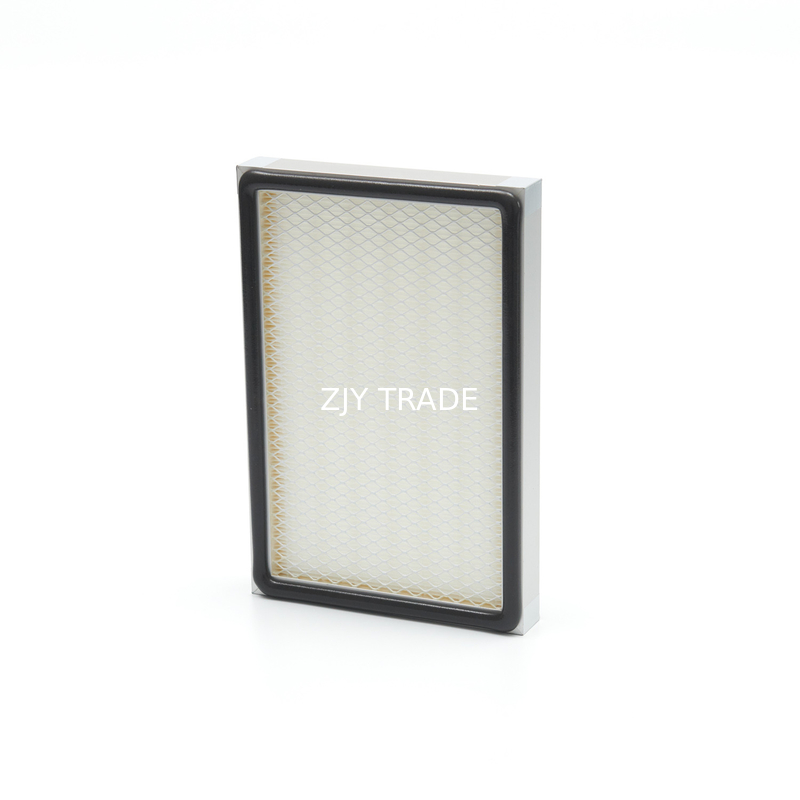

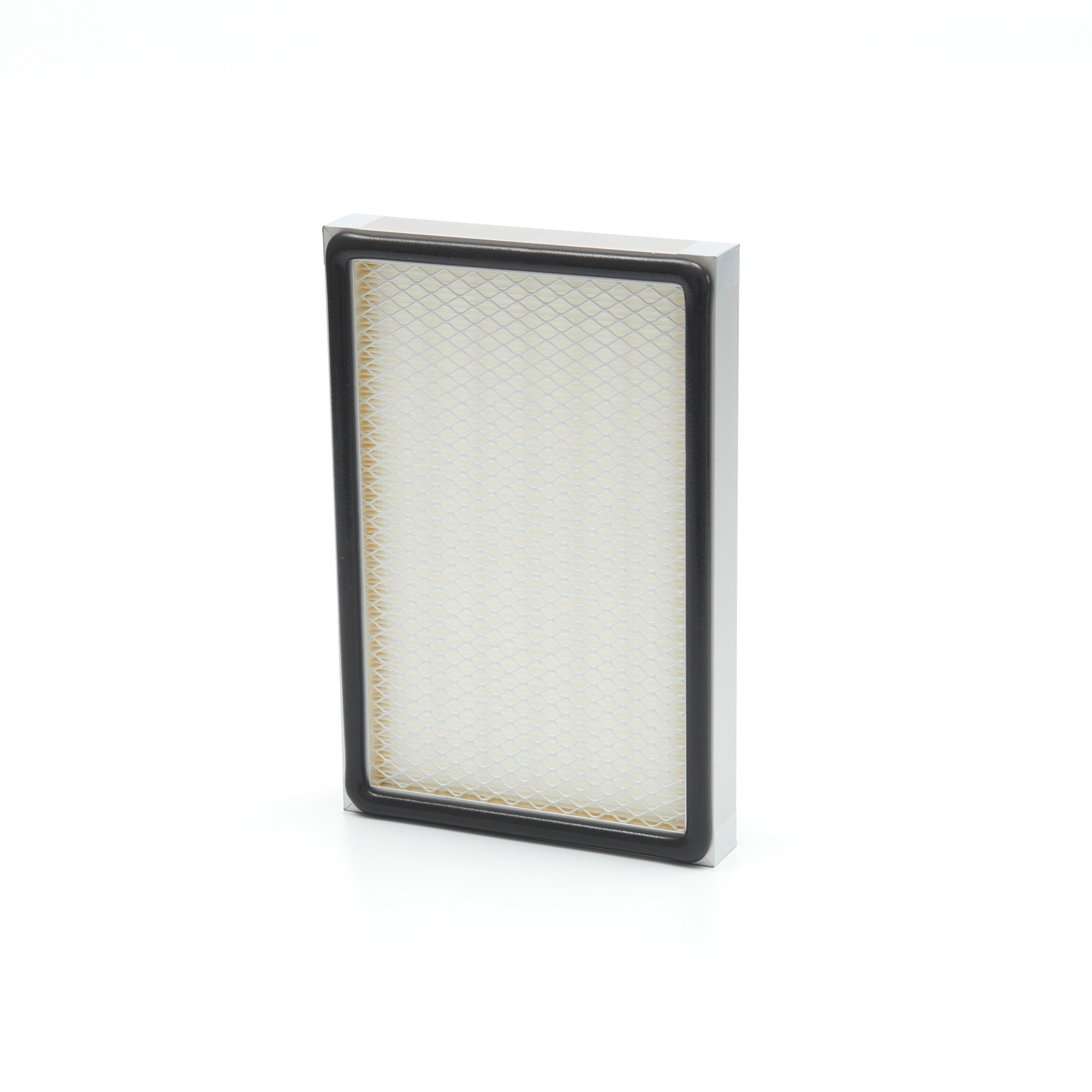

Dust Air filter Mini-Pleat Hepa Panel Filter for HVAC Air Purification Ventilated System
Description:
100% scanning leak test, water-proof low resistance media,light weight,none-corroding,dependable seal system.Used as terminal air filtration for clean-room with ultra-stringent requirements for clean air quality and sterility in industrial processes like pharmaceuticals,photovataic,electronics;Also used in supply/exhaust system of hospital operating theaters,intensive care units and of purifying equipment like biological safety cabinet and pass throught cabinet.
All heating and cooling air duct systems naturally collect dust and contaminants. Clean rooms, such as those used in the electronics, pharmaceutical, and medical industries, require a controlled environment free of dust, airborne particles, and other contaminants. Ultra low particulate air (ULPA) filters and high efficiency particulate air (HEPA) filters are used in commercial air filtration systems to trap extremely small particulate contaminants.
| Frame | Anodized aluminum;Stainless steel;MDF |
| Medium | Micro glass-fiber |
| Gasket | Dove-tailed EPDM;Endless PU foam |
| Max.working temperature | 80ºC |
Product Details
Type: Mini-pleat HEPA filter Gasket: CR,EVA,EPDM,PU
Frame: Extruded aluminum. Face guard: Baking finish
Separator: Hot-melt beads. Filter class(EN1822):H12, H13,H14
Media: H&V Glass fiber, PTFE Recommended final pressure drop.: 500 Pa.
Temperature / Humidity: 70°C / 100% RH
Standard specifications:
| Size | Efficiency | Airflow/Initial Pressure | Area |
| (W*H*D)mm | EN1822 | m³/h/Pa(±15%) | m² |
| 610*610*50 | H13 | 603/130 | 8.11 |
| 1170*1170*50 | H13 | 2218/125 | 29.72 |
| 1170*570*50 | H13 | 1080/130 | 14.83 |
| 610*610*70 | H13 | 603/110 | 10.97 |
| 1170*1170*70 | H13 | 2218/105 | 41.78 |
| 1170*570*70 | H13 | 1080*110 | 20.08 |
| 610*610*90 | H13 | 603/85 | 13.48 |
| 1170*1170*90 | H13 | 2218/80 | 50.12 |
| 1170*570*90 | H13 | 1080/85 | 25.92 |
| 610*610*50 | H14 | 603/140 | 8.11 |
| 1170*1170*50 | H14 | 2218/135 | 29.72 |
| 1170*570*50 | H14 | 1080/140 | 14.83 |
| 610*610*70 | H14 | 603/120 | 10.97 |
| 1170*1170*70 | H14 | 2218/115 | 41.78 |
| 1170*570*70 | H14 | 1080/120 | 20.08 |
| 610*610*90 | H14 | 603/95 | 13.48 |
| 1170*1170*90 | H14 | 2218/90 | 50.12 |
| 1170*570*90 | H14 | 1080/95 | 25.92 |
Advantages:·
Filter efficiency ranges from E10 to H14.
Adopt computer-controlled automatic production line for manufacturing, the crest height of folding filter material can be regulated steplessly between 18~96 mm, width will reach 1240mm at the widest.
Use special ultra-fine fiberglass filter paper as the filter material, good stability of filtration efficiency.
Double side retainers, protect the filter material, good strength.
Light in weight, compact in structure.
Each filter is tested according to EN1822:2009.
Application:
It is suitable for end filtration in ventilation equipment, dust removal equipment and air supply system with high cleanliness level
requirements.
