| Place of Origin: | China |
|---|---|
| Brand Name: | Local Brand |
| Certification: | ISO9001 |
| Model Number: | Filter Material Roll |
| Minimum Order Quantity: | 500kg |
| Price: | Negotiable |
| Packaging Details: | carton and pallet |
| Delivery Time: | 4~6 weeks |
| Supply Ability: | 20000kgs per month |

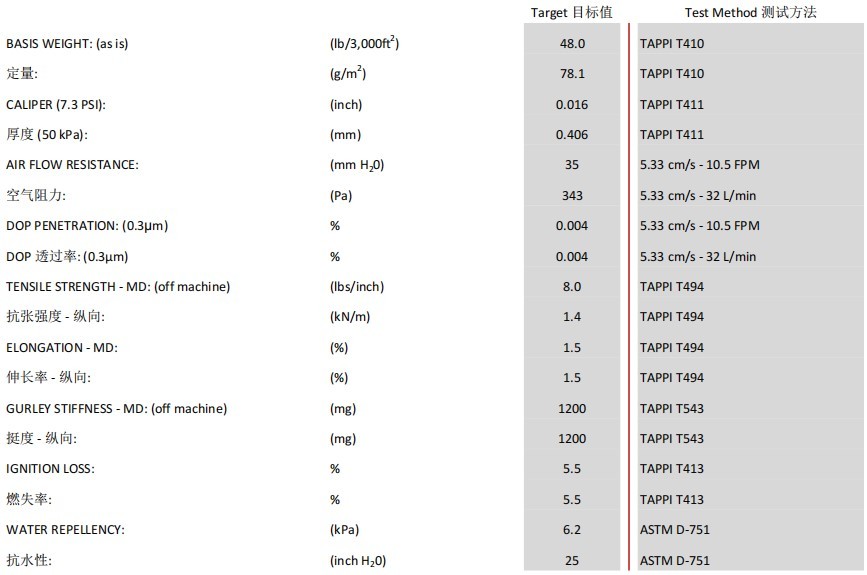

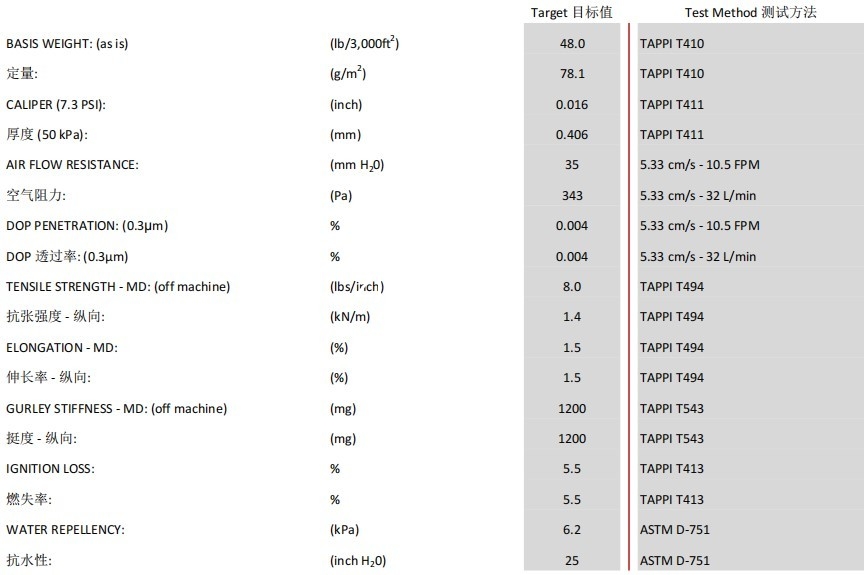

| BASIS WEIGHT: | 78g/m2 | CALIPER (50 KPa): | 0.406mm |
|---|---|---|---|
| AIR FLOW RESISTANCE: | 343Pa | DOP PENETRATION: (0.3μm: | 0.004% |
| TENSILE STRENGTH - MD: | 1.4kN/m | GURLEY STIFFNESS - MD: | 1200mg |
| High Light: | HEPA Filter Media Paper,343Pa Filter Media Paper,Cleanroom Fiberglass Air Filter Roll |
||
HEPA Fiberglass Filter Material Roll Air filter Media Used in Cl-10K/100K Clean Room
Description
It's composed primarily of glass microfibers and is produced with a wet laid process which enables the media to have even fiber distribution, easy-pleating, high dust holding capacity, high efficiency, low air resistance, thermal isolation, inflamng retarding and high strength as characteristics. This is an ideal material for air filtration. Zisun own 3 ranges of product: ASHREA, HEPA and ULPA which are graded according to international standard, to offer a large range of choices for our customers.
Having a great filtration efficiency for PM2.5 and PM10, glass microfiber filter media Is widely used in the high-end air filtration environment such as industrial clean room. It is also partially applied in civil use. Depending on the different reequipments of clients, our product can be designed, produced and supplied in compliance with national or international standards such as EN779/ISO16890.
This is an intermediate stiffness, significantly lower resistance HEPA filter medium composed of borosilicate microfibers with an acrylic resin binder. Itis designed to be processed in both mini-pleat and/or deep-pleat applications.
Product Parameters
| Grade | Basic weight (g/m2) |
Thickness (mm) |
Pressure Drop (0.3μm@5.3cm/s Pa) |
Efficiency (0.3μm@5.3cm/s %) |
Tensile Strength (MD KN/M) | Stiffness MD(mg) |
| F6 | 70 | 0.45±0.06 | ≤30 | ≥50 | ≥1 | ≥1000 |
| F7 | 70 | 0.45±0.06 | ≤ 30 | ≥50 | ≥1 | ≥1000 |
| F8 | 70 | 0.45±0.06 | ≤ 45 | ≥60 | ≥1 | ≥1000 |
| F9 | 70 | 0.45±0.06 | ≤ 70 | ≥85 | ≥1 | ≥1000 |
| H10 | 72 | 0.4±0.06 | ≤ 127 | ≥92 | ≥1 | ≥1000 |
| H13 | 78 | 0.406 | 284 | 99.9779 | 1.342 | 1396 |
| H14 | 78 | 0.406 | 372 | 99.998 | 1.669 | 1553 |
Applications
This filter paper is the main materials of air filters, which can be used for air filters of air-conditioning systems in medicine, electronics, food, textile industries and high-grade office/entertainment industries, etc.
HEPA: CL-10K/100K clean room, fresh air system. It's widely used in shopping mall, hospital, housing, livestock sectors. It can also be applied in nuclear power plant exhaust, high-end vacuum cleaner, air purifier and gas mask.
