| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Neutral or Local |
| Model Number: | JSZ130\SSZ130 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Neutral Packaging / Customized |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | available |
| Structure: | Pleated Cartridge | Filter Material: | Long Fiber Spun Bond Polyester |
|---|---|---|---|
| Bind Prcoess: | Hot Melt Glue + Ultrasonic Welding | Inner Mesh Process: | Full Welding With No Spots |
| Filtration Principle: | Surface / Pulse-jet | Max Temp. Normal Material: | 130℃ |
| Max Temp. HT Material: | 190℃ | ||
| High Light: | Durable Pleated Filter Cartridges,Welding Pleated Filter Cartridges,Multipurpose Poly Pleat Filter |
||

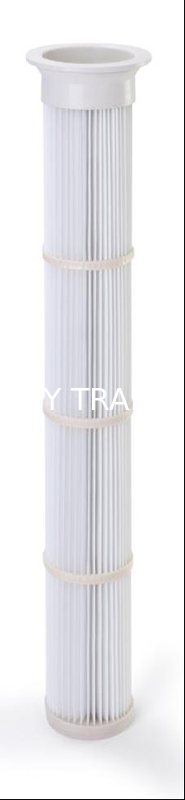

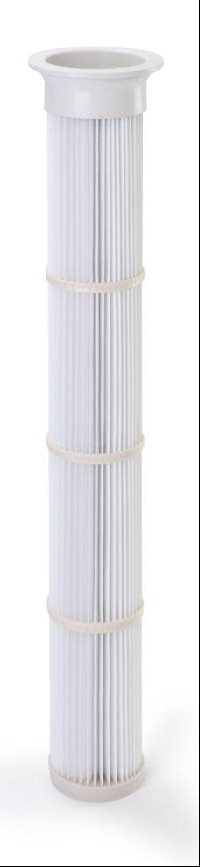

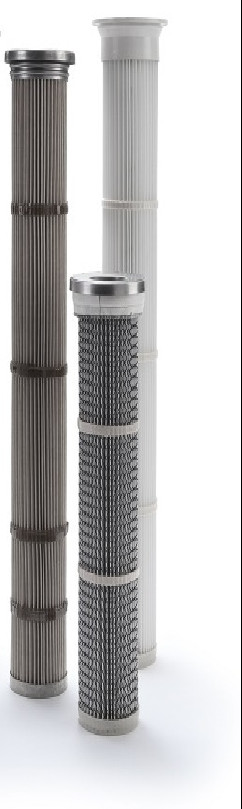

Pulse Jet Pleated Filter Element Cartridge
Along with the always stricter emission demand, upgrading the filter bags to pleated filter cartridges has been for decades a trend to improve the filtration efficiency and lower energy consumption in an industrial processing environment.
It is specifically designed for each unique case and the whole system is easy to install and remove.
The pulse-jet material and structure can soundly extend the filter lifetime and shorten the machine shut-up timing.
| Model |
Inner Mesh φ mm |
Length m |
Std.Filtration Area m2 |
MAX Operating Temp. of normal material ℃ |
| JSZ130SSZ130 | 133/135 | 1 | 2 | 130 |
| JSZ130SSZ130 | 133/135 | 2 | 4 | 130 |
| JSZ130SSZ130 | 133/135 | 2.4 | 4.8 | 130 |
| JSZ130SSZ130 | 133/135 | 3 | 6 | 130 |
Std. parts fit the inner mesh among φ132-136mm.
Customized length, filtration area, and inner mesh are accepted.
Filtration Area Comparison:
|
Size mm |
Filter Bag m2 |
Pleated Filter Element m2 |
|---|---|---|
| 130*2000 | 0.8 | 3.5-4 |
| 130*3000 | 1.2 | 5.2-6 |
| 160*2000 | 1 | 4-6 |
| 160*3000 | 1.5 | 6-9 |
