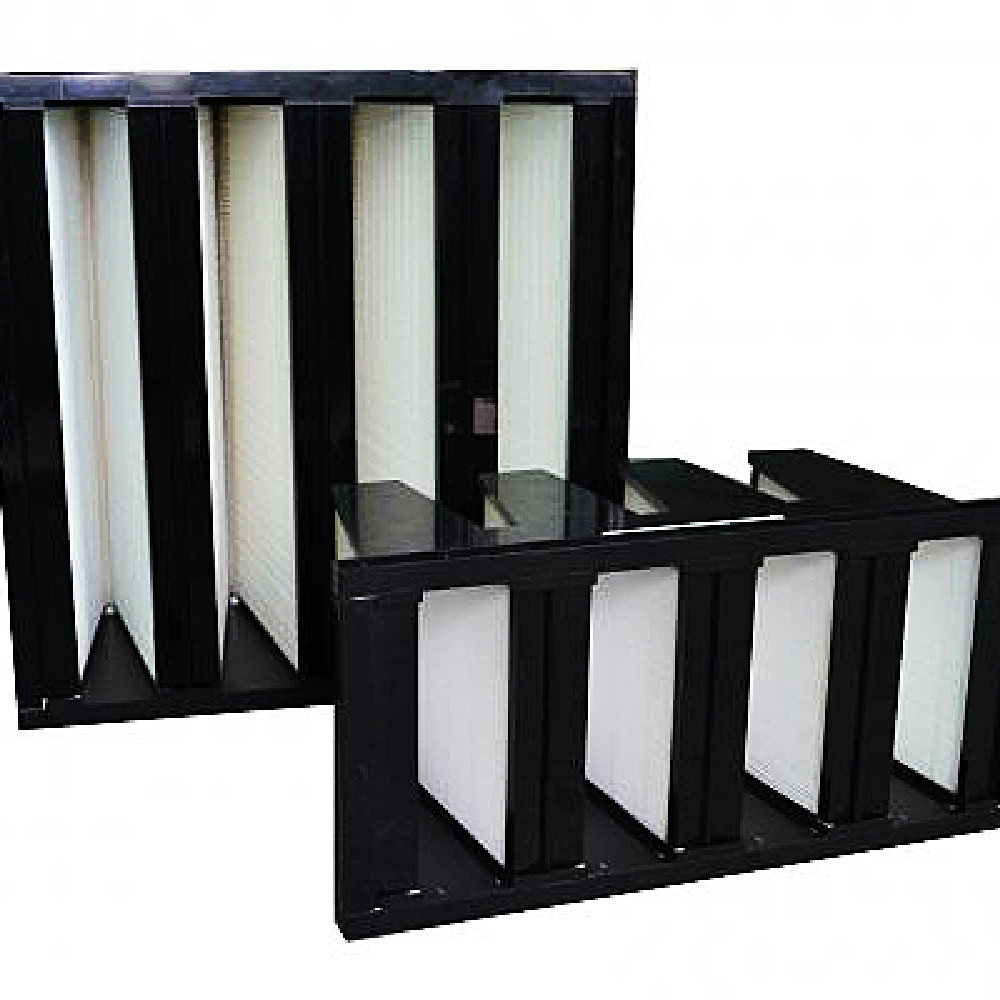

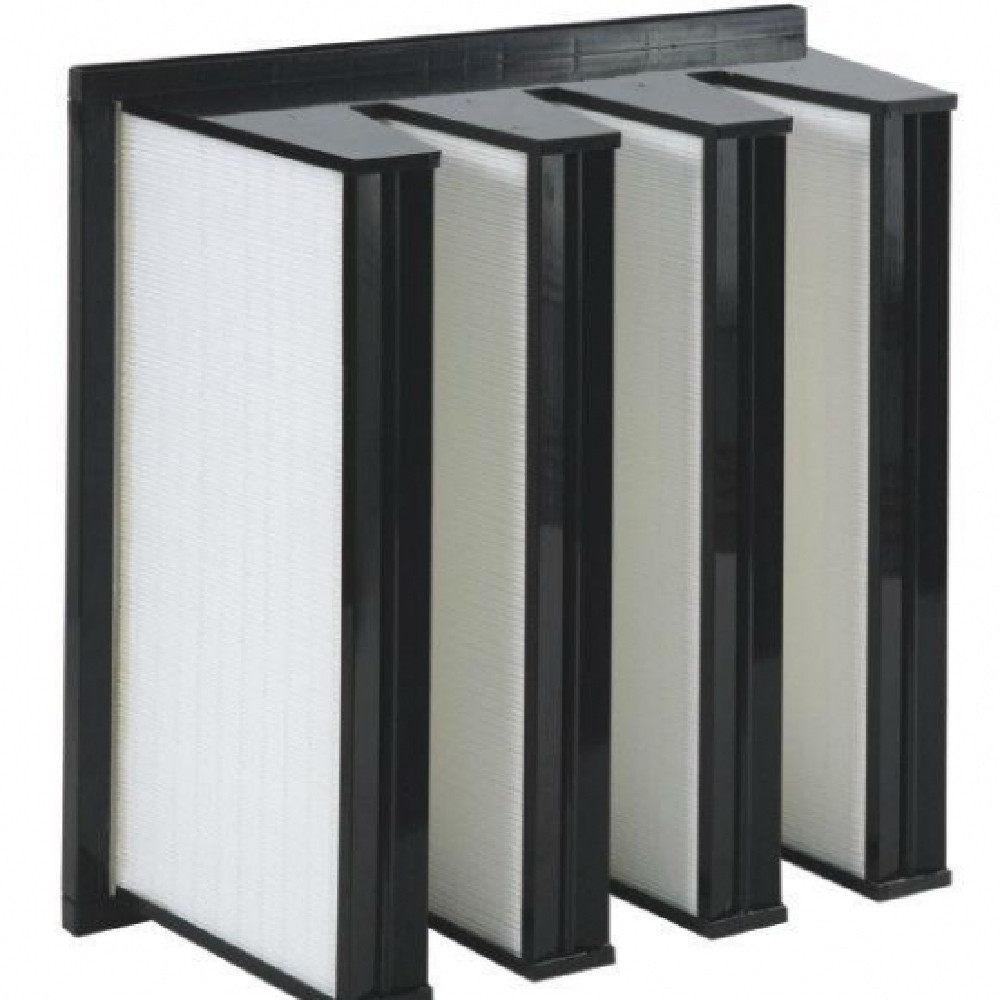

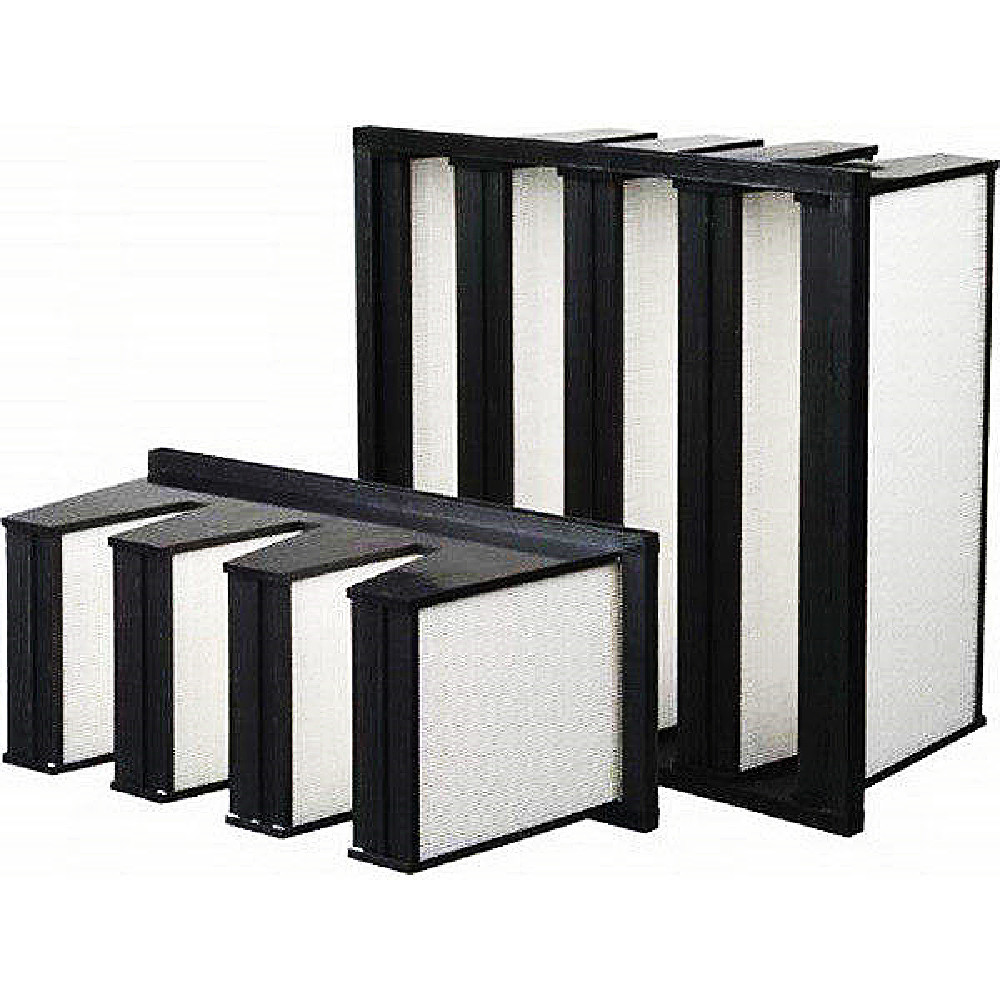

Galvanized Steel V Bank Filter Multi Layer For Gas Turbine Engines

Basic Information
Place of Origin: China
Brand Name: HEPA Filter
Certification: CAN/ULC S111
Model Number: V bank filter
Minimum Order Quantity: 10 pieces
Price: usd59-299/piece
Packaging Details: 610*610*292
Delivery Time: 21 workdays
Payment Terms: T/T
Supply Ability: 1000000 pcs/year
Detail Information
Model NO.: HEPA Filter Max Temperature: 70°c
Humidity: 100% Rh Frame: Galvanized Steel
Separator: Hot Melt Beads Gasket: Cr, EVA, EPDM, PU
Recommended Final Pressure Drop: 600 PA Norminal Air Flow, M3/H: 3300
High Light:

Galvanized Steel V Bank Filter


Multi Layer V Bank Filter


Turbine Engines V Bank Air Filter

Product Description

Gt Minipleat Filter China Manufacture Wholesale (H12, H13) HEPA Filter For Gas Turbine Engines

We not only produce all kinds of different normal size V-Bank HEPA filter, but also accept all kinds of customized size V-Bank HEPA filter. Please choose what size you want refer to the below table.
1, Box type with galvanised steel frame
2, Mini-pleat design, glass fiber filter paper
3, High dust loading capacity, long service life
4, Firm structure, good performance under turbulent air flow




Large air flow

Low resistance, can be exchanged with pocket filter

Flange frame

Each filter has scanning test

Expanded filter area


Application: pre-filter through air filter program, and also for HEPA filter of the equipments with large air flow

Type: multi-layer V-combined foldaway filter

Final resistance: (suggested) ≤600PA

Temp. resistance: ≤70ºC

Humidity: ≤100%RH




Model Dimensions
(WxHxD) mm
Filter grade
EN 779
Airflow / pressure drop
m3/h / Pa (± 15%)
Unit volume m3
610x610x292-5V H13 3300/250 0.109
610x305x292-5V H13 1650/250 0.055
610x610x292-4V H13 2900/250 0.109
610x305x292-4V H13 1450/250 0.055
592x592x292-4V H13 2800/250 0.102
592x287x292-4V H13 1400/250 0.050
610x610x292-5V H14 3200/250 0.109
610x305x292-5V H14 1600/250 0.055
610x610x292-4V H14 2800/250 0.109
610x305x292-4V H14 1400/250 0.055
592x592x292-4V H14 2700/250 0.102
592x287x292-4V H14 1350/250 0.050


Below is the form of relathionship between resistance and wind speed.

Galvanized Steel V Bank Filter Multi Layer For Gas Turbine Engines 0


Galvanized Steel V Bank Filter Multi Layer For Gas Turbine Engines 1Galvanized Steel V Bank Filter Multi Layer For Gas Turbine Engines 2



Galvanized Steel V Bank Filter Multi Layer For Gas Turbine Engines 3


Frame Material ABS plastic or Metal
Separator Hot melt
Media Fiberglass
Gasket CR, EVA, EPDM, PU
Face Guard PU


Company profile

Being the H&V and Ahlstrom filter media dealer in the southeast of China, ZJY is confident to offer you the most reliable and effective filters for each different application. Thanks to the direct collaboration between the manufacturers and ZJY, we are capable of both designing and producing customized and standard filters as per your demand. The catalog in the showroom represents the most experienced products we supply, which we exported to more than 20 countries, covering almost every continent. Our factories are all located nearby, you can rely on our professional communication and efficient monitoring of the parts quality and lead time.


Our operation principle is simple, we do not stock all +50,000 part numbers, but offer you the best possible price on quality, brand-name products. Lead time is usually 2 to 3 weeks but depends on factory availability, and type of product. After placing an order, we will reach you with an estimated delivery time.


We are proud to offer you high quality aftermarket products as value priced alternatives to the parts and products sold by original equipment manufacturers. We are confident you will be completely satisfied and find our products to be fully equivalent in specification performance to the OEM products which we identify for your convenience on this site.
