| Place of Origin: | China |
|---|---|
| Brand Name: | Local brand |
| Certification: | ISO |
| Model Number: | V Bank HEPA Filter |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | carton and bubble pack |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100000pcs |

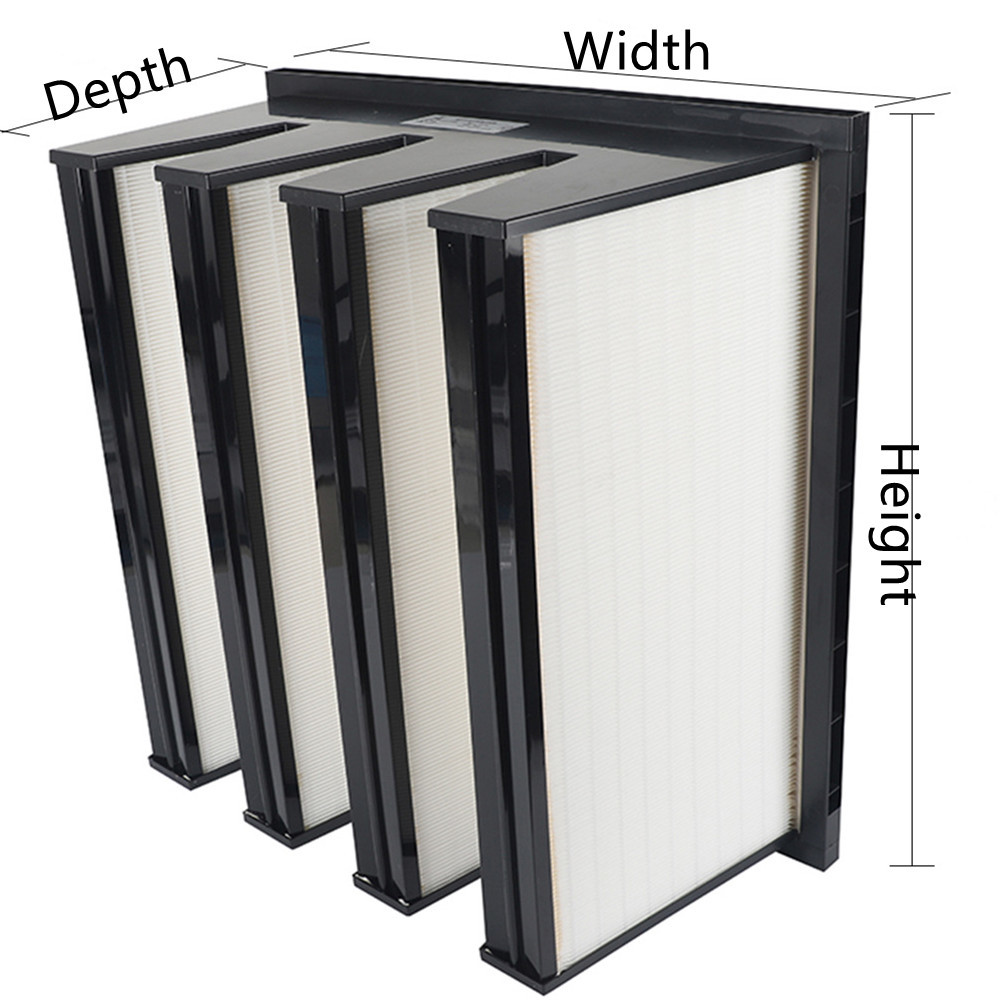

| Structure Type: | V BANK HEPA FILTER | Efficiency: | H13,H14 |
|---|---|---|---|
| Recommended Final Pressure: | 600Pa | Temperature: | Under 70 Degree |
| Frame: | Aluminum Sheet, Galvanized Steel Sheet,ABS Plastic | Separator: | Hot Melt |
| Media: | Glass Fiber | Gasket: | CR EVA EDPM PU |
| Sealant: | Polyurethane | ||
| High Light: | Mini Pleat V Bank Filter,PP V Bank Filter,Hospital Mini Pleat HEPA Filter |
||
Application: Asbestos Abatement,Semiconductor,Electronic,Food Processing,Laboratories,Hospitals,Pharmaceutical
Nuclear Power and much more
Frame: Galvanized steel/Aluminum profile/ Stainless steel/ PP
Media: Ultra fine glass fiber
Separator :Hot melt adhesive
Fiber class according to EN1822:2009 :H11
Efficiency:99.97%,at 0.3μm (DOP/PSL/PAO Counting method)
Maximum temperature: 70ºC
Maximum relative humidity: 100%
Customized size: Available
Materials and operating conditions:
| Frame material | Galvanized steel;Stainless steel;Plastic |
| Medium | Micro glassfiber |
| Gasket | EPDM;Endless PU foam |
| Max.working temperature | 80ºC. 120ºC. 150ºC. |
| Max.working Rel.Humidity | 90% |
Transportation
