| Place of Origin: | China |
|---|---|
| Brand Name: | Local brand |
| Certification: | ISO |
| Model Number: | V Bank HEPA Filter |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | carton and bubble pack |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100000pcs |

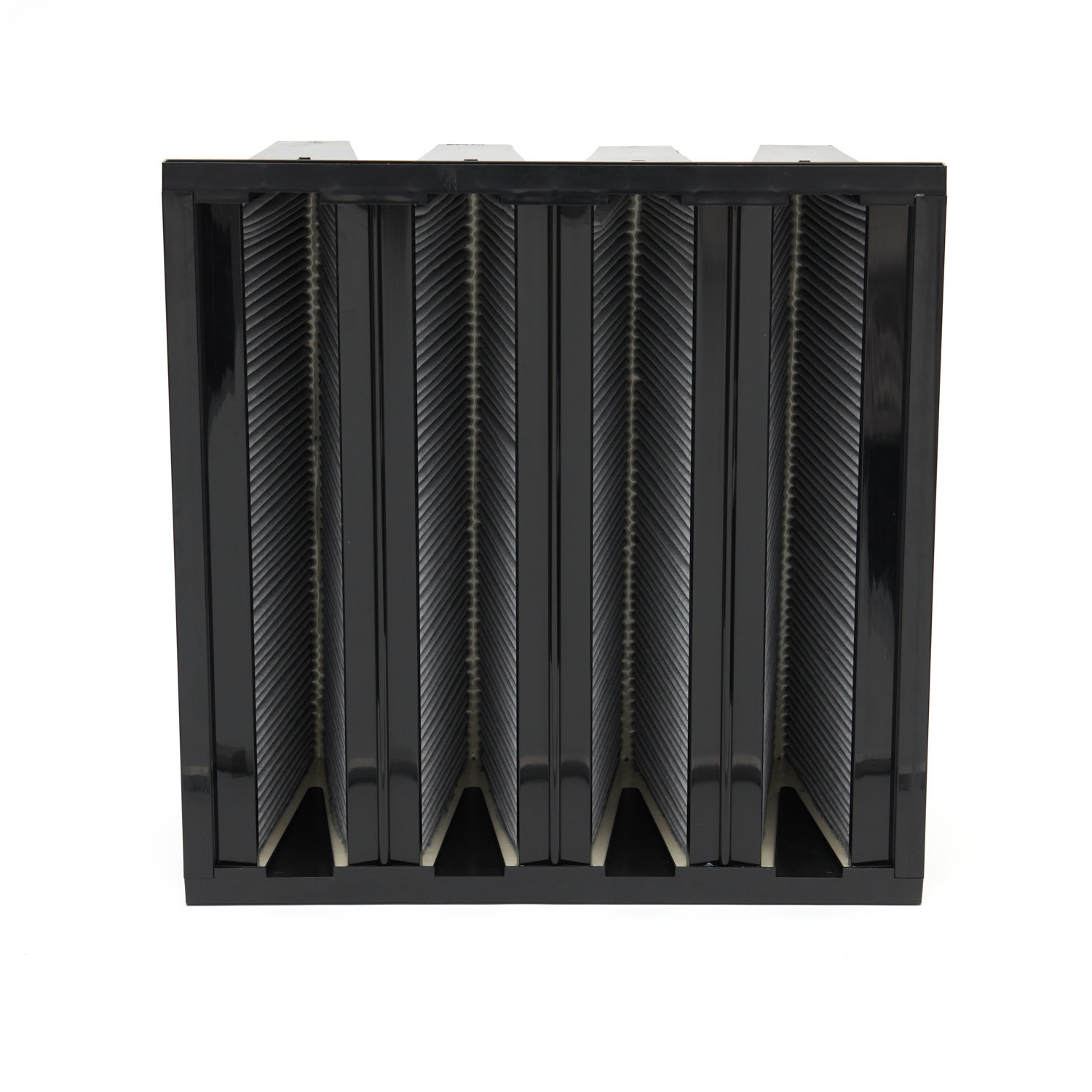

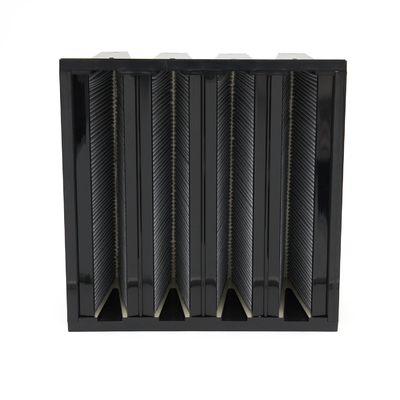

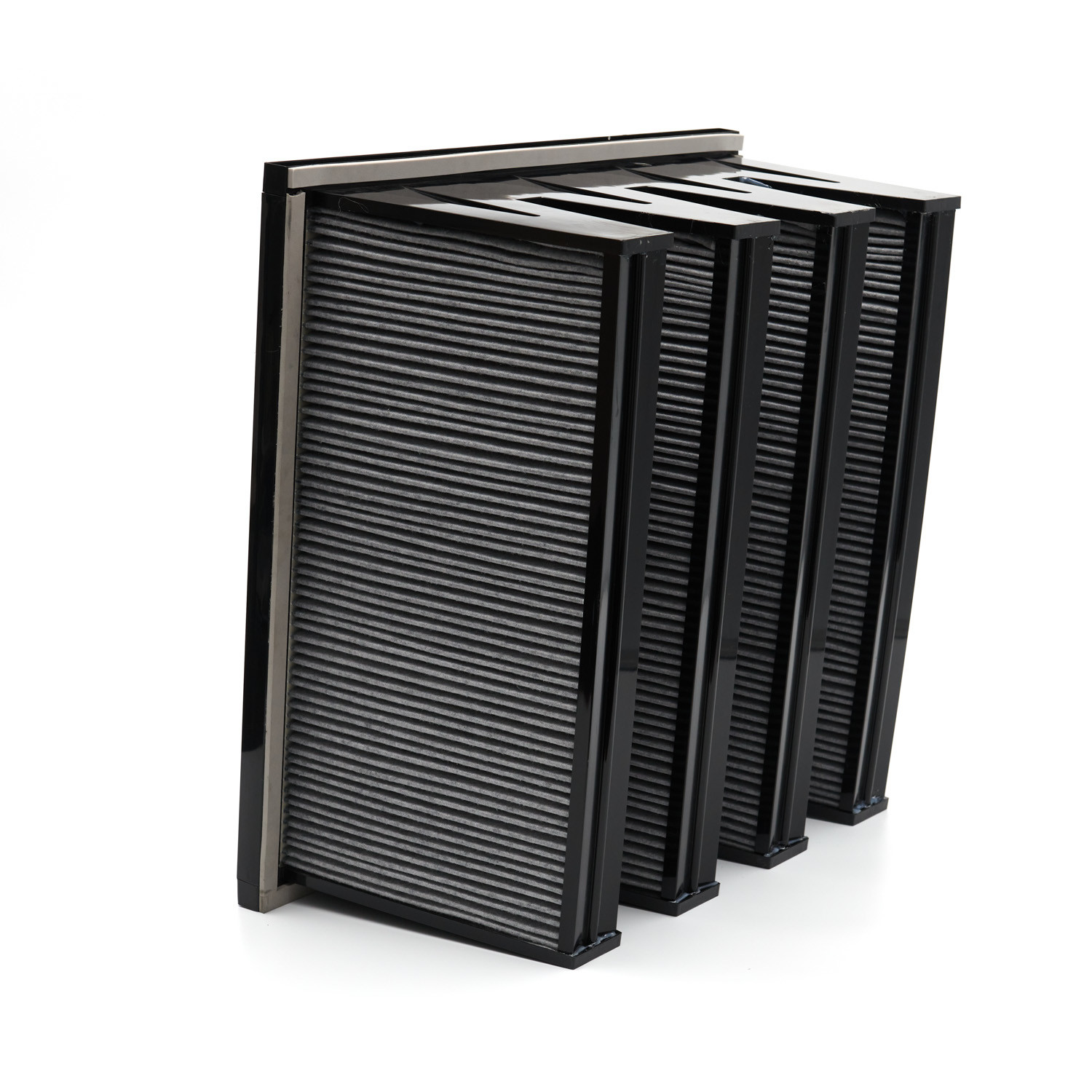

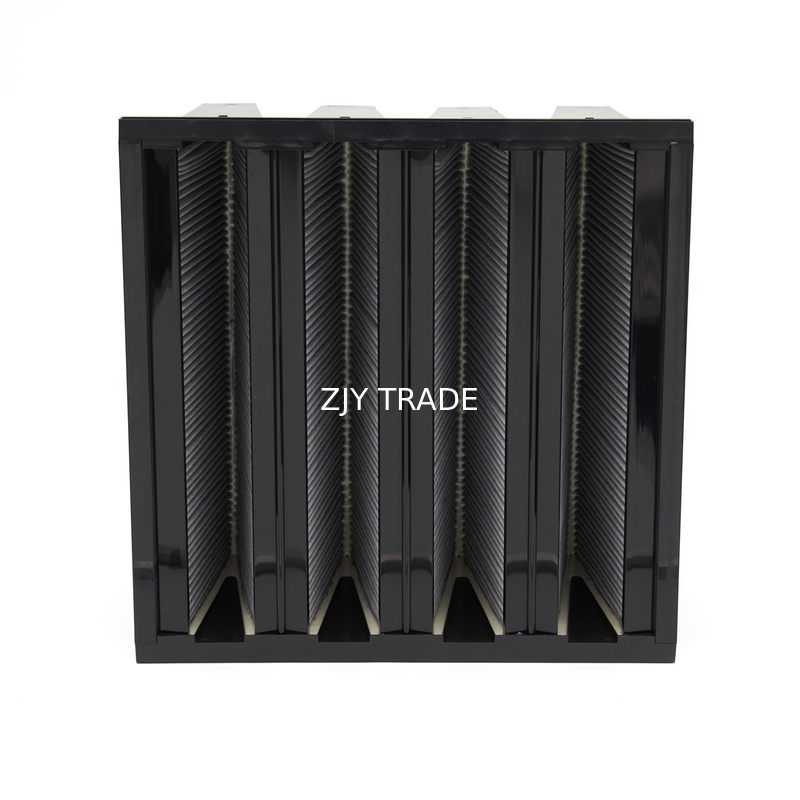

| Structure Type: | V BANK HEPA FILTER | Temperature: | Under 40 Degree |
|---|---|---|---|
| Frame: | Galvanized Steel Sheet, ABS Plastic | Media: | Carbon+polyester, Granular Activated Carbon |
| Package: | CTN | Filter Type: | Mini Pleated |
| High Light: | Practical V Bank Carbon Filter,Chemical V Bank Carbon Filter,Plastic V Form Filter |
||
Materials and operating conditions:
| Frame material | Galvanized steel;Stainless steel;Plastic |
| Medium | Micro glassfiber |
| Gasket | EPDM;Endless PU foam |
| Max.working temperature | 80ºC. 120ºC. 150ºC. |
| Max.working Rel.Humidity | 90% |
Technical Parameters
| Size | Activated | Airflow/Initial Pressure | Area |
| (W*H*D)mm | carbon Type | m³/h/Pa(±15%) | m² |
| 592*287*292 | CFTT-01 | 3400/105 | 5.28 |
| 592*490*292 | CFTT-02 | 2800/105 | 9.9 |
| 592*592*292 | CFTT-03 | 1500/105 | 12.1 |
| 592*287*292 | CFTM-01 | 3400/80 | 5.28 |
| 592*490*292 | CFTM-02 | 2800/80 | 9.9 |
| 592*592*292 | CFTM-03 | 1500/80 | 12.1 |
Application:
Air conditioning system to remove all kinds of odor pollution gas,such as: office, hotel, airport, electronic factory,etc
Frame: Galvanized steel sheet, ABS plastic
Media: Carbon+polyester, Granular activated carbon
Maximum temperature: 40ºC
Customized size: Available
