| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Comfort |
| Certification: | IATF 16949; ISO 9001; ISO 14001 |
| Model Number: | P78-3963 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Carton and Bubble pack |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000 pcs/year |
| Structure: | Pocket Air Filter | Efficiency: | M5, M6, F7, F8, F9 |
|---|---|---|---|
| Average Efficiency %: | 73% @0.4um | Size (WxHxD)mm: | 592x592x635-10P |
| Airflow/Initial Pressure M³/h/Pa (±10%）: | 3400/55 | Area (㎡）: | 4.5 |
| Media: | Full Synthetic | Reccomended Final Pressure: | 400Pa |
| Temperature: | ≤70℃ | Net Weight: | 7KG |
| High Light: | Synthetic Gas Turbine Filter,400Pa Gas Turbine Filter,Pocket Air Inlet Filter Gas Turbine |
||
Medium Efficiency Synthetic Pocket Air Filter for Static Gas Turbine Air Intake system
Description:
An effective inlet air filtration system is essential for either indoor or operating environments.
The quality of the air entering the turbine is a significant factor in the performance and lifetime of the gas turbine.
Liquid droplets in inlet air can contaminate pre-filters and final filters, causing an increased overall pressure drop. This increase is primarily due to the setting and resultant swelling of particles already captured by the filter elements. This shortens the service life of the air filters.

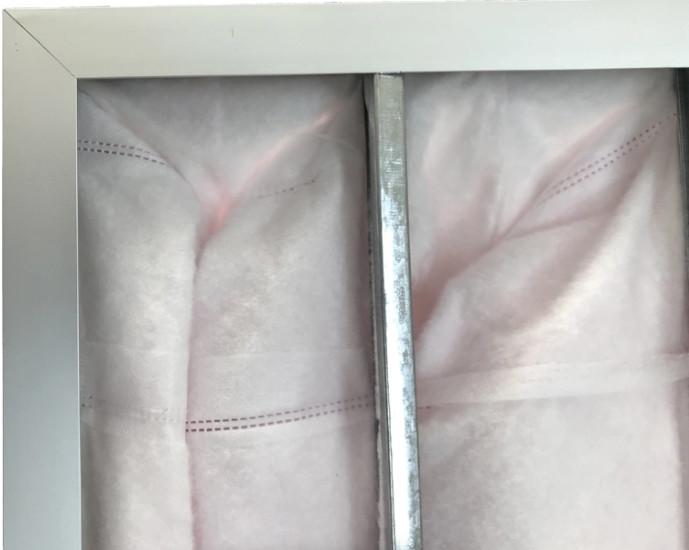

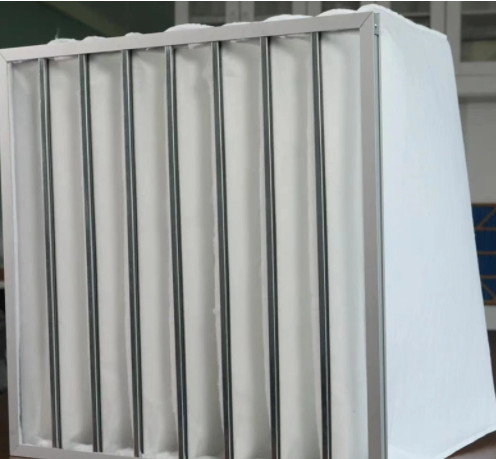

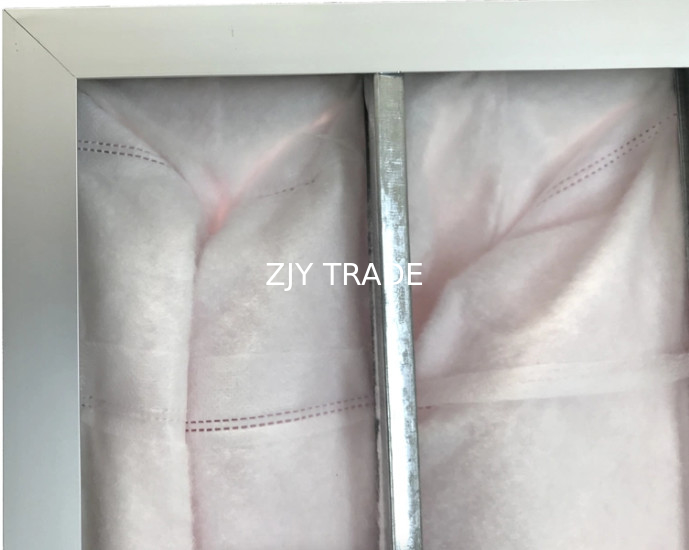

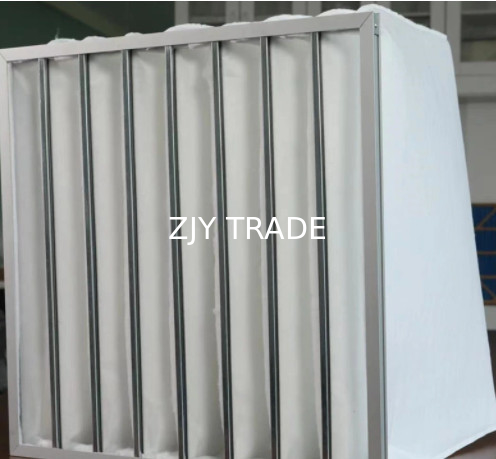

This pocket air filter is made with progressively structured synthetic fiber material, in addition, a continuous foamed-in-place seal is applied to the joint between the filter and the metal frames on the outlet side.
The filter is extremely rugged and maintains its shape even under pressure fluctuations or when the turbine is shut down.
Customized requirements are accepted.
Material:
| Frame Material | Extruded aluminum / Galvanized steel sheet |
| Optional thickness | 20mm, 21mm, 25mm, 46mm |
| Inner frame | Galvanized steel sheet |
| Media | Full synthetic |
| Gasket | CR, EVA, EPDM |
Features:
- Easy to Install
- Large Filtration Area
- Stable efficiency
- Low Pressure
- High structural strength
- Strong supporting frame
Applications:
1. Pre-filtration of general ventilation and air conditioning system
2. Pre-filter in the huge size of air compressors.
3. 1st stage in the static gas turbine filtration system
Pictures:
Test results based on the 592x592x600mm-8P
