| Place of Origin: | China |
|---|---|
| Brand Name: | Gas Turbine Filter |
| Certification: | CAN/ULC S111 |
| Model Number: | Gas Turbine Filter |
| Minimum Order Quantity: | 10 pieces |
| Price: | usd59-299/piece |
| Packaging Details: | 610*610*292 |
| Delivery Time: | 21 workdays |
| Payment Terms: | T/T |
| Supply Ability: | 1000000 pcs/year |
| Model NO.: | Gas Turbine Filter | Max Temperature: | 70°c |
|---|---|---|---|
| Humidity: | 100% Rh | Frame: | Galvanized Steel |
| Separator: | Hot Melt Beads | Gasket: | Cr, EVA, EPDM, PU |
| Recommended Final Pressure Drop: | 600 PA | Norminal Air Flow, M3/H: | 3300 |
| High Light: | H12 Gas Turbine Filter,Galvanized Steel Gas Turbine Filter,H13 Turbine Air Intake Filters |
||

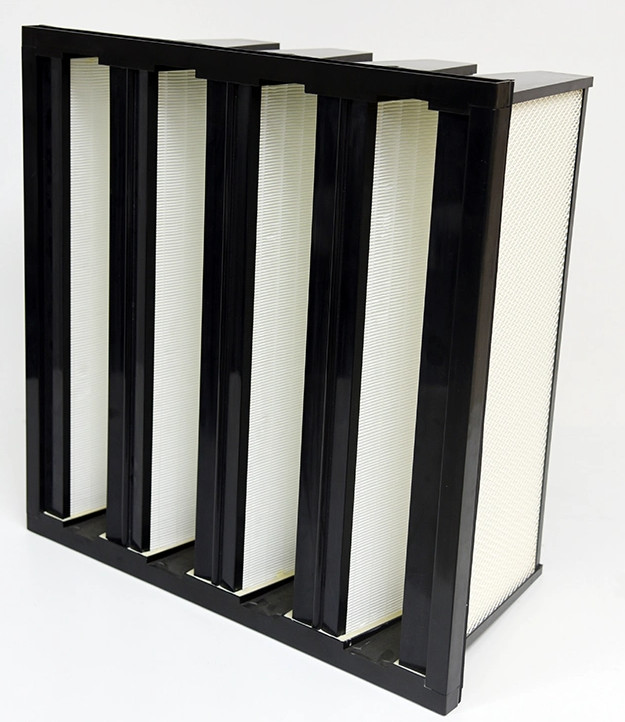

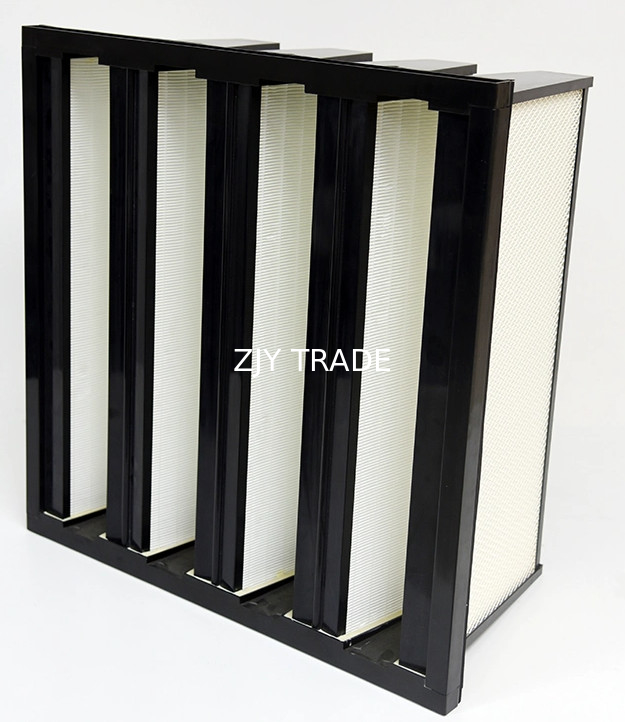

Gas Turbine Air Intake filter (H12, H13) HEPA Filter Dust Extractor Filter Cartridges For Gas Turbine Engines
Description:
The medium-efficiency high-capacity dust filter expands the filter area, and is widely used in air clean room systems such as bio pharmaceuticals, automobiles, mechanical instruments, electronics, food and petrochemical light industry, with its unique mechanism design and stable and excellent filtration performance. Ventilation systems for common general purpose and commercial buildings.
Dimensions
| Model Dimensions (WxHxD) mm |
Filter grade EN 779 |
Airflow / pressure drop m3/h / Pa (± 15%) |
Unit volume m3 |
| 610x610x292-5V | H13 | 3300/250 | 0.109 |
| 610x305x292-5V | H13 | 1650/250 | 0.055 |
| 610x610x292-4V | H13 | 2900/250 | 0.109 |
| 610x305x292-4V | H13 | 1450/250 | 0.055 |
| 592x592x292-4V | H13 | 2800/250 | 0.102 |
| 592x287x292-4V | H13 | 1400/250 | 0.050 |
| 610x610x292-5V | H14 | 3200/250 | 0.109 |
| 610x305x292-5V | H14 | 1600/250 | 0.055 |
| 610x610x292-4V | H14 | 2800/250 | 0.109 |
| 610x305x292-4V | H14 | 1400/250 | 0.055 |
| 592x592x292-4V | H14 | 2700/250 | 0.102 |
| 592x287x292-4V | H14 | 1350/250 | 0.050 |
Below is the form of relathionship between resistance and wind speed.
Specifation:
1.Low pressure drop and high efficiency
2.Extended surface design ensures low resistance to airflow and reduce energy cost.
3.High velocities, variable air volumes high moisture
4.Light weigh
Application: pre-filter through air filter program, and also for HEPA filter of the equipments with large air flow
Type: multi-layer V-combined foldaway filter
Final resistance: (suggested) ≤600PA
Temp. resistance: ≤70ºC
Humidity: ≤100%RH
Material:
| Frame Material | ABS plastic or Metal |
| Separator | Hot melt |
| Media | Fiberglass |
| Gasket | CR, EVA, EPDM, PU |
| Face Guard | PU |
