| Place of Origin: | China |
|---|---|
| Brand Name: | OE or Neutral |
| Model Number: | PF-F |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | PP bag with carton boxes |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1,000,000pcs/year |
| Filter Material: | Polyester | Filtration Efficiency: | M6 |
|---|---|---|---|
| Structure: | Pocket Filter | Color: | Customized |
| Organic Silicon: | None | Recommended Final Pressure: | 400Pa |
| Temperature: | ≤70°C | Humidity: | 100%RH |
| Net Weight: | 2KG | Average Efficiency: | 73% @ 0.4μm |
| High Light: | Polyester Air Filter Inlet,Pocket Air Filter Inlet,Air Inlet Filters For Gas Turbines |
||

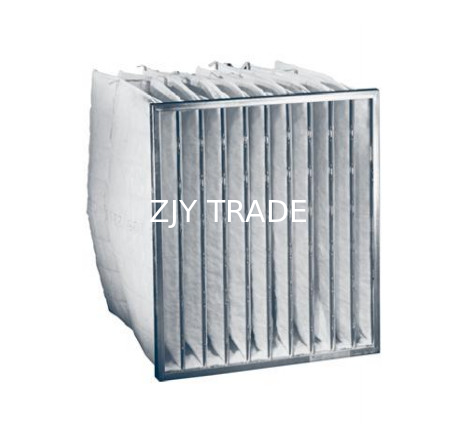

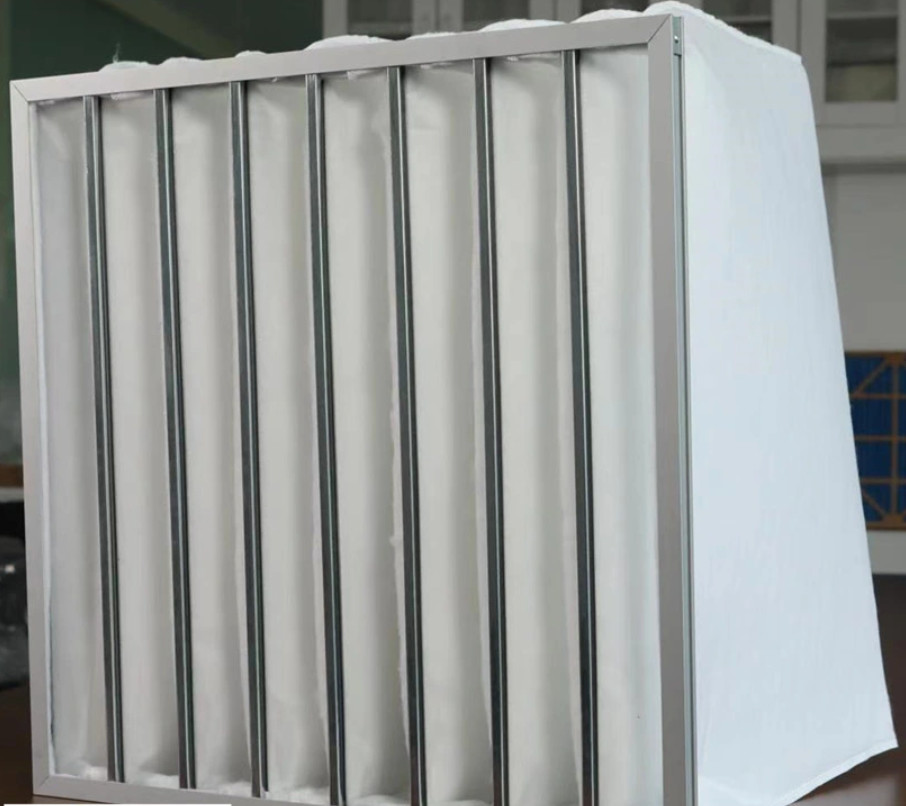

Pre-Filtration Polyester Pocket Filter for Gas Turbine
This customized polyester pocket air filter is used as pre-filtration in gas turbine applications to intercept the big particle dust and provide better performance for the 2nd and 3rd filtration systems.
Steady filtration efficiency thanks to the big dust holding capacity and the low initial and working pressure drop helps you save more energy.
|
Size (WxHxD) mm |
Efficiency EN779 |
Pocket Nos. |
Airflow/Initial Pressure m3/h/Pa (±15%) |
Area m2 |
|---|---|---|---|---|
| 592x592x635-8P | M6 | 8 | 3400/55 | 4.5 |
| Frame | Anodized Aluminum Alloy |
| Optional thickness | 20mm, 21mm, 25mm,46mm |
| Media | Fully Synthetic Fiber |
| Gasket | CR |
