| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Comfort |
| Certification: | EN1822 |
| Model Number: | MPK49-20 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Carton and Bubble Pack |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100000pcs |
| Structure Type: | Mini-pleat V-Bank HEPA Filter | Efficiency: | H12(E12) |
|---|---|---|---|
| Average Efficiency MPPS: | 99.90% | Recommended Final Pressure: | 600 Pa |
| Media: | H&V Fine Fiberglass | Specification: | 592x592x400-4V |
| HS Code: | 8421999000 | Net Weight: | 10kg |
| High Light: | ABS V Bank Hepa Filters,Multipurpose V Bank Hepa Filters,Non Corroding Gas Turbine Air Filter |
||

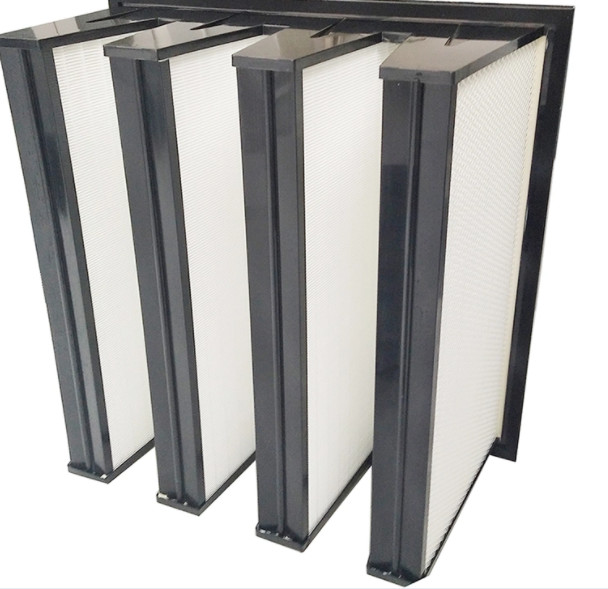

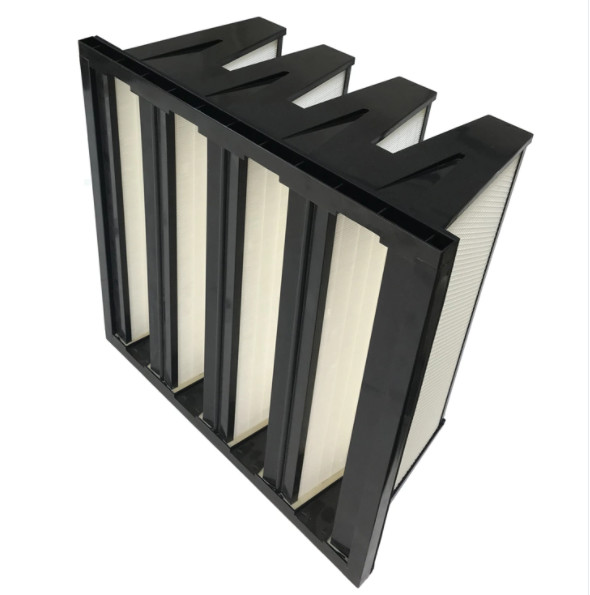

ABS Frame E12 Mini Pleat Fiberglass V-Bank Hepa Filters for Static Gas Turbine Inlet Air System
Description:
The compact V-Bank filters are named after their compact, space-saving construction.
This product is produced with H&V imported fiberglass, with maximum media area in the minimum volume, separating by the hot melt separators, it offers a very stable filtration efficiency.
In addition, a continuous foamed-in-place seal is applied to the joint between the filter and the qualified ABS frames on the outlet side.
The deformation only appears over 5000Pa.
Water and heat resistance.
Specifications:
| Model |
Size (WxHxD mm) |
Efficiency (EN1822) |
Air Flow / Initial Pressure m3/h / Pa (±10%) |
| MPK-49-20 | 592x592x400-4V | E12 | 3400 / 215 |
Customized requirements are accepted.
Material:
| Frame Material | Aluminum sheet / Galvanized steel sheet / ABS plastic |
|---|---|
| Separator | Hot melt |
| Media | Fiberglass |
| Gasket | CR,EVA,EPDM,PU |
| Sealant | Polyurethane |
Features:
- Long Service life
- Low Pressure
- Mini-pleat design
- Large Filtration Area
- High Efficiency
- 100% scan and tested according to EN1822 standard
Applications:
Pictures:
