F9 Fiberglass Inlet Gas Turbine Filter Mini Pleat V Bank Type

Basic Information
Place of Origin: CHINA
Brand Name: Comfort
Model Number: MPK412038
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton and Bubble Pack
Delivery Time: 10 working days
Payment Terms: L/C, T/T
Supply Ability: 100000pcs
Detail Information
Structure Type: Mini-pleat V-Bank Filter Efficiency: M6, F7, F8, F9
Recommended Final Pressure: 450 Pa Media: Fiberglass
Specification: 592x592x296-4V HS Code: 8421999000
High Light:

Fiberglass Gas Turbine Filter


Inlet Gas Turbine Filter


V Bank Gas Turbine Inlet Filters

Product Description

F9 Fiberglass Compact V-Bank Filters for Static Gas Turbine Inlet Air System



The compact V-Bank filters are named after their compact, space-saving construction.

This product is produced with H&V imported fiberglass, with maximum media area in the minimum volume, separating by the hot melt separators, it offers a very stable filtration efficiency.

In addition, a continuous foamed-in-place seal is applied to the joint between the filter and the qualified ABS frames on the outlet side.

The deformation only appears over 5000Pa.

Water and heat resistant.


Customized requirements are accepted.



Frame Material Extruded aluminum / Galvanized steel sheet / ABS plastic
Separator Hot melt
Media Fiberglass, Synthetic fiber
Sealant Polyurethane



- Long Service life

- Mini-pleat design

- Large Filtration Area

- Stable efficiency

- Low Pressure

- High structural strength

- Low replacement frequency



  1. Pre-filtration of space tight ventilation and air conditioning system
  2. Cleanroom
  3. High humidity, variable air volume, and space tight ventilation
  4. 2nd stage in the static gas turbine filtration system

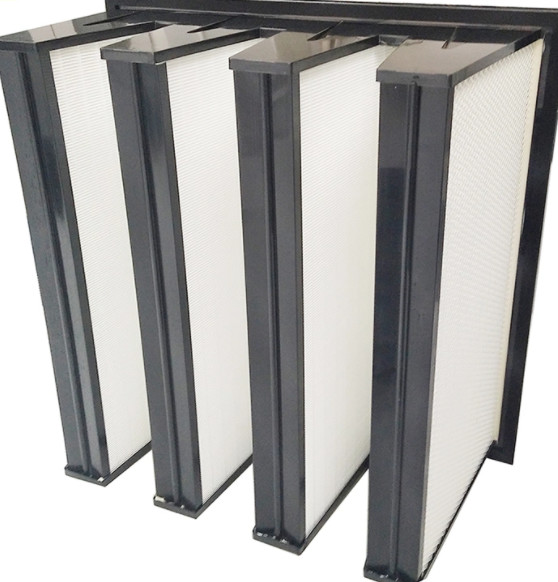

F9 Fiberglass Inlet Gas Turbine Filter Mini Pleat V Bank Type 0

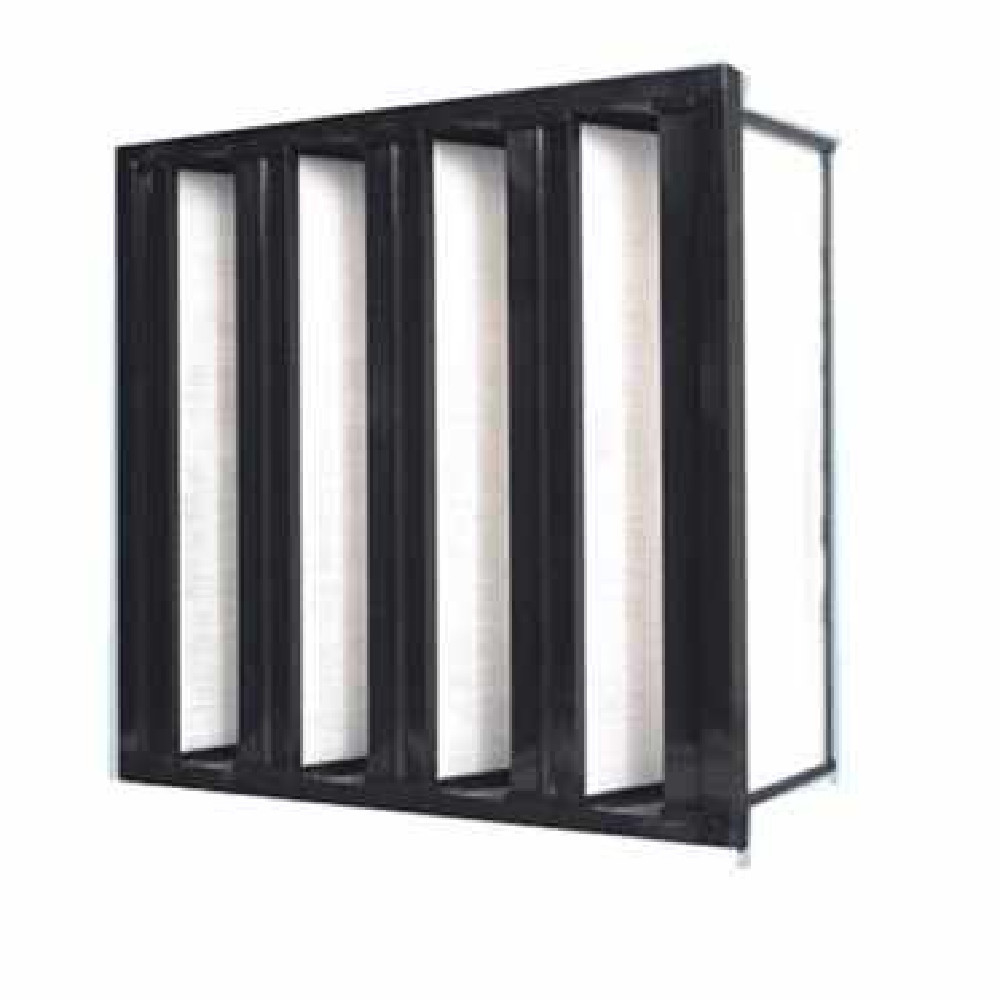

F9 Fiberglass Inlet Gas Turbine Filter Mini Pleat V Bank Type 1
