| Place of Origin: | USA |
|---|---|
| Brand Name: | HV |
| Certification: | ISO9001 |
| Model Number: | Filter Material Roll |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | carton and pallet |
| Delivery Time: | 4~6 weeks |
| Supply Ability: | 15000kgs per month |
| Basis Weight: | 139g/m2 | Thickness: | 4.9mm |
|---|---|---|---|
| Air Flow Resistance: | 47Pa | Penetration: | 24% With 0.3 Micron NaCl |
| IPA Pentration: | 56% With 0.3 Micron NaCl | ||
| High Light: | Nanowave Filter Media Paper,4.9mm Filter Media Paper,HVAC Paper Air Filter Material |
||

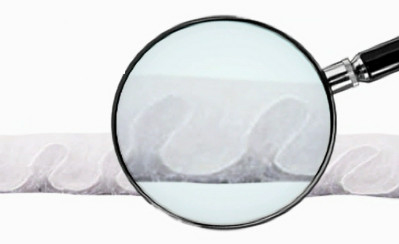

HV Nanowave Filter Material Roll with Twice Glass Mat Media Used For HVAC
Description
Nanoweb fine fiber media can provide 40% lower resistance than traditional standard microfiber glass media. It can also be used to boost the performance of low-efficiency media and raise the discharged efficiency levels of charged media. These advantages can be leveraged in a number of different applications depending on industry standards and customer requirements.
The advantages of H&V’s Nanoweb composite technology include:
Very low pressure drop for a given efficiency
Best-in-class levels of mechanical filtration performance
Outstanding durability
Low total cost of ownership (TCO)
Excellent processability and pleatability
Flame retardancy
Application:
Cabin air best-in-class mechanical filtration media with low pressure drop
Cabin air combi-filter for best-in-class molecular and particulate filtration

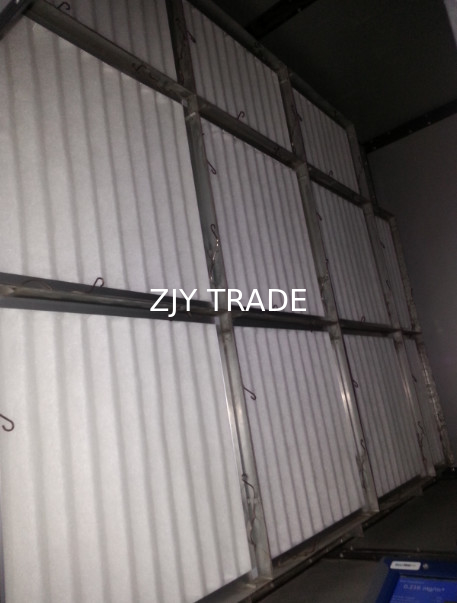

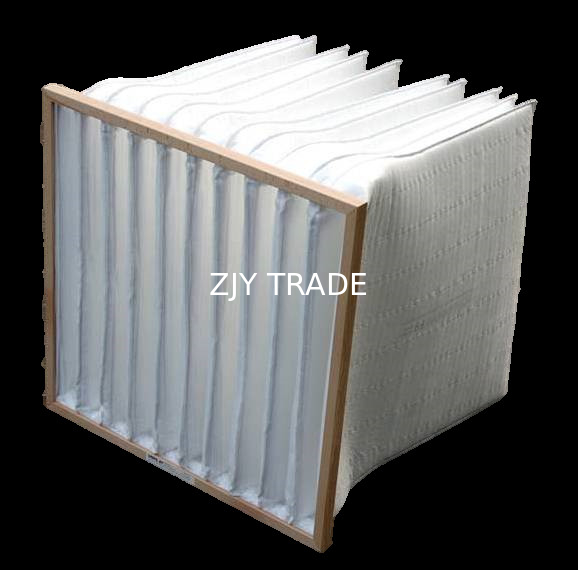

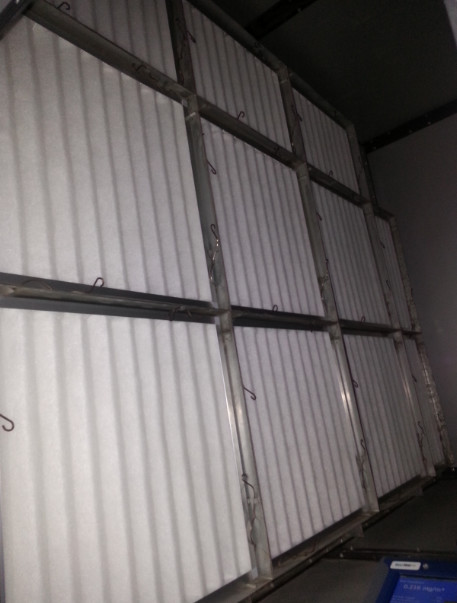

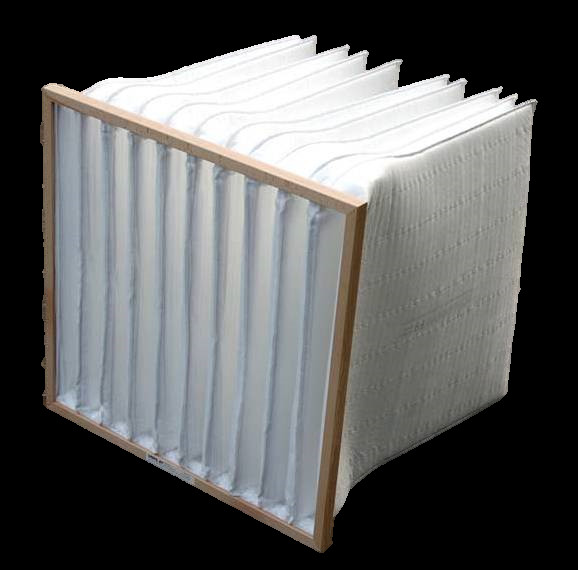

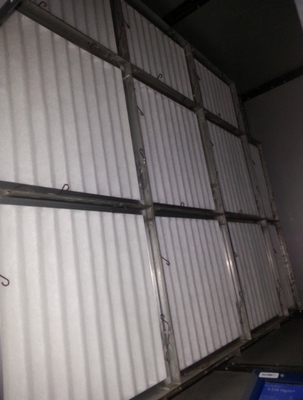

HVAC and Gas Turbine pocket, panel, and V-bank filters
HEPA/ULPA air filtration systems
Specialty liquid filters
Biopharma equipment
Process liquid systems
Water filtration systems
Food and beverage processes
Transportation
