| Place of Origin: | Italy |
|---|---|
| Brand Name: | Ahlstrom |
| Certification: | ISO9001 |
| Model Number: | NP70 |
| BASIS WEIGHT: | 167g/m2 | CALIPER (1.5 PSI): | 0.86mm |
|---|---|---|---|
| CALIPER - CORRUGATION: (1.5 PSI): | 0.33mm | MULLEN BURST (dry): | 155kPa |
| High Light: | NP70 Air Filter Material Roll,Fiberglass Air Filter Material Roll,155kPa Fiberglass Filter Media Rolls |
||

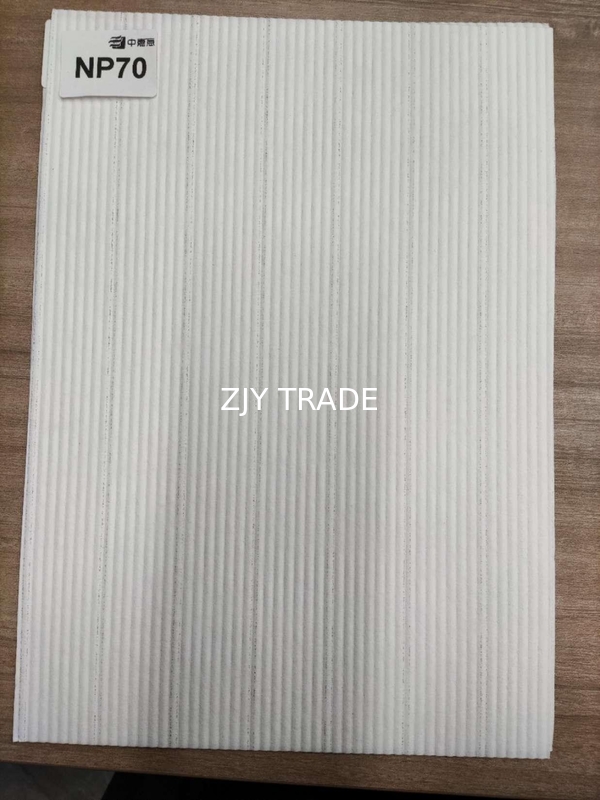

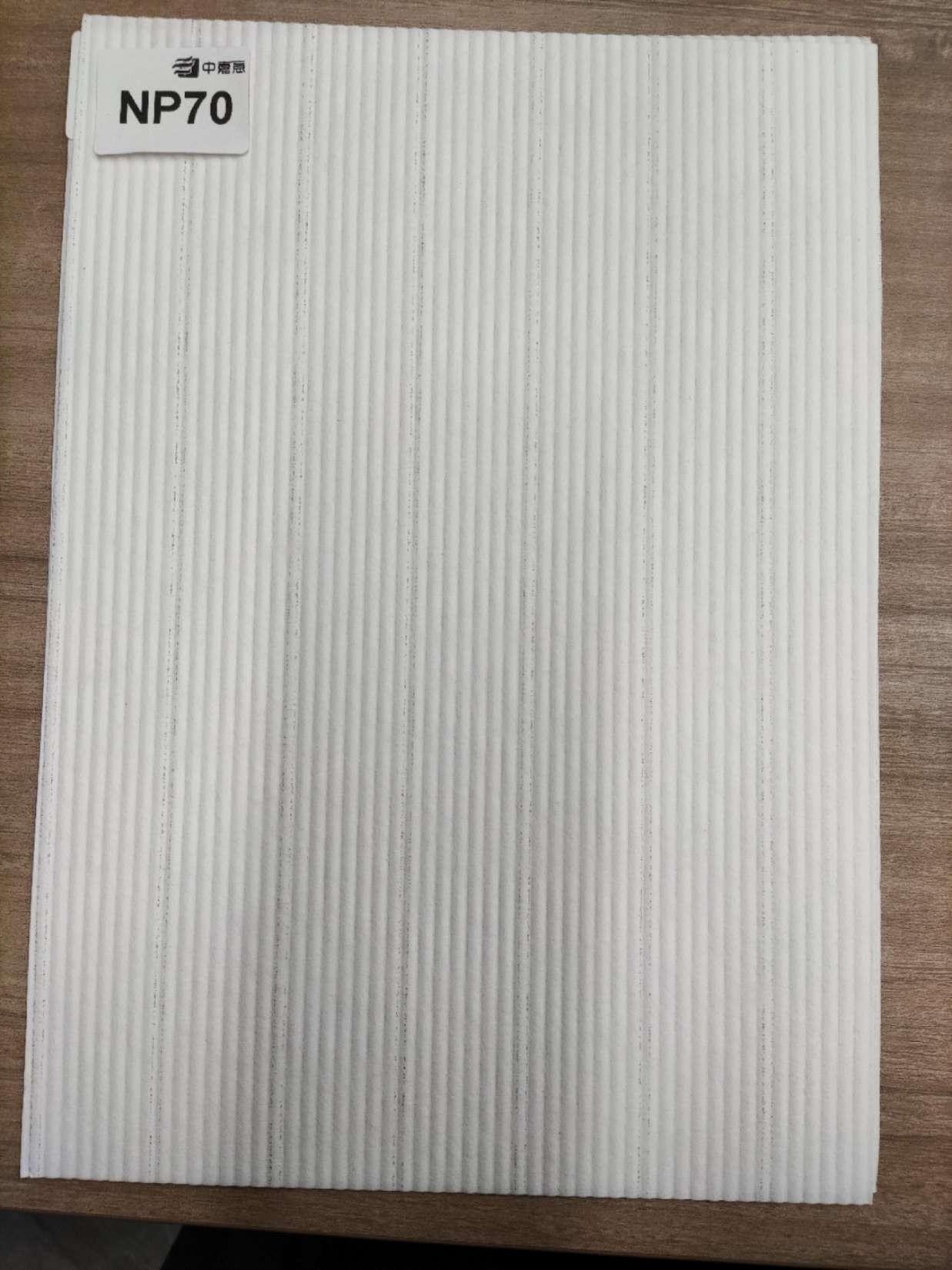

Ahlstrom Nanopulse NP70 Filter Material Roll Used For Industrial And Gas Turbine
Description
Air and liquid filter media are typically made of fibrous materials like glass, synthetic fibers, and cellulose. Many factors affect filtration efficiency, such as the density, thickness, diameter, orientation, and surface characteristics of the fibers.
Cellulose is among the most commonly used fibers in filtration media. This versatile, proven, and cost-effective material is made from renewable resources and compatible with a multitude of filter production processes, such as embossing, corrugating, and pleating. However, as with all materials, there are compromises. For example, cellulose can lose mechanical strength in certain chemical or high-temperature environments and absorb water in high-humidity conditions, potentially altering its filtration properties.
Supporting the industries' challenging new emission laws – We diesel fuel filter media provides consistent particulate and water protection while it lowers energy usage and extends the life of system components.We have a complete line of particulate and water coalescing media products used in on-highway and off-road applications. Specific grades address special market needs for challenging fuel quality, biofuel compatibility and static mitigation.
| Application | China II | China III/IV FWS | China IV/V | Fluted Type | ||||||||
| Physical | BW(gsm) | 140 | 130 | 152 | 170 | 168 | 146 | 180 | 181 | 190 | 100 | 120 |
| Overall thickness(mm) | 0.79 | 0.65 | 0.75 | 0.76 | 0.89 | 0.62 | 0.8 | 0.76 | 0.82 | 0.34 | 0.34 | |
| Corrugation depth(mm) | 0.28 | 0.31 | 0.35 | 0.4 | 0.35 | 0.16 | 0.25 | 0.28 | 0.2 | NA | NA | |
| Air perm(cfm) | 73 | 15 | 13 | 12 | 13 | 7 | 4.3 | 2.5 | 1.7 | 1.3 | 2 | |
| Max pore(micron) | 94 | 45 | 44 | 43 | 38 | 30 | 26 | 23 | 21 | 14.3 | 19 | |
| MD stiffness(mg) | 4500 | 2800 | 4000 | 4100 | 5000 | 3500 | 600 | 5000 | 6000 | 1200 | 100 | |
| Filtration performa nce(Flat sheet multi pass) | > 4 micron efficiency (%) | 40 | 72 | 73 | 74 | 74 | 80 | 94 | 98.5 | 99.5 | 99.5 | 94 |
| >10 micron efficiency (%) | 52 | 93 | 93 | 94 | 93 | 96 | 99.3 | 100 | 100 | 100 | 100 | |
| DHC (g/m2) | 250 | 120 | 99 | 146 | 160 | 300 | 300 | 110 | 95 | 85 | 85 | |
| Beta 75 rating(µm) | 40 | 15 | 15 | 10 | 8 | 4 | <4 | <4 | 7 | |||
| Testing standards | ||||||||||||
| ISO 19438, 0.5 l/min, ISO 12103 – A3 Medium dust | ||||||||||||
How could it work?

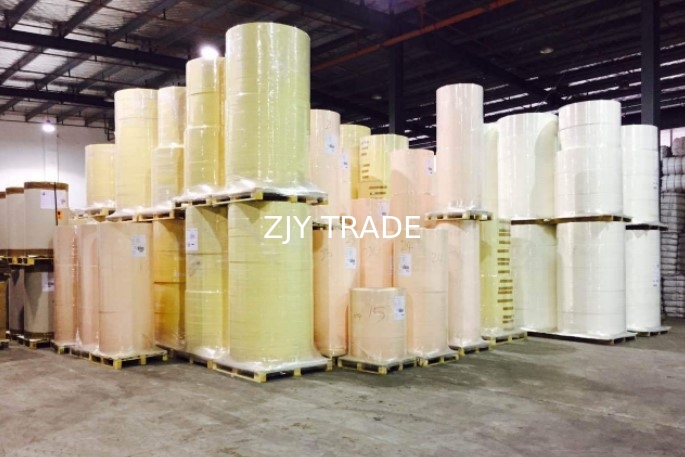

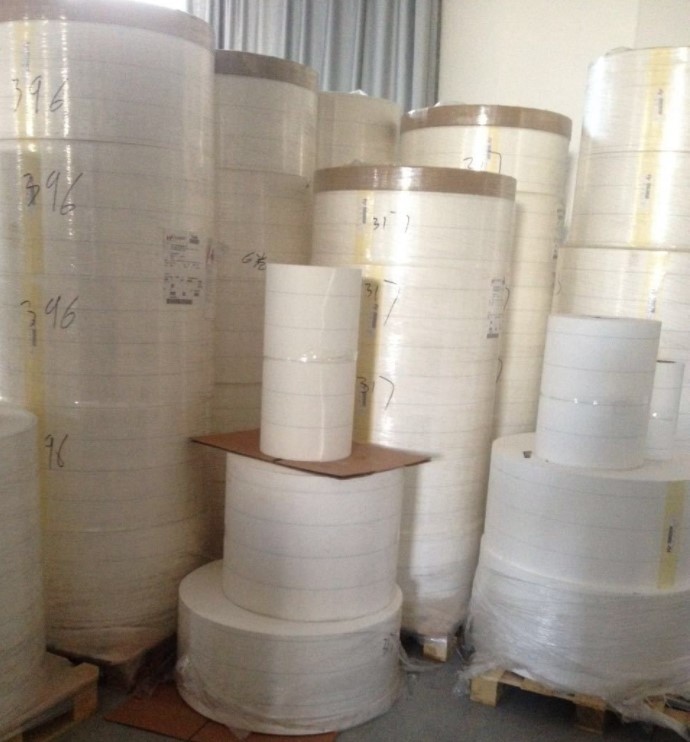

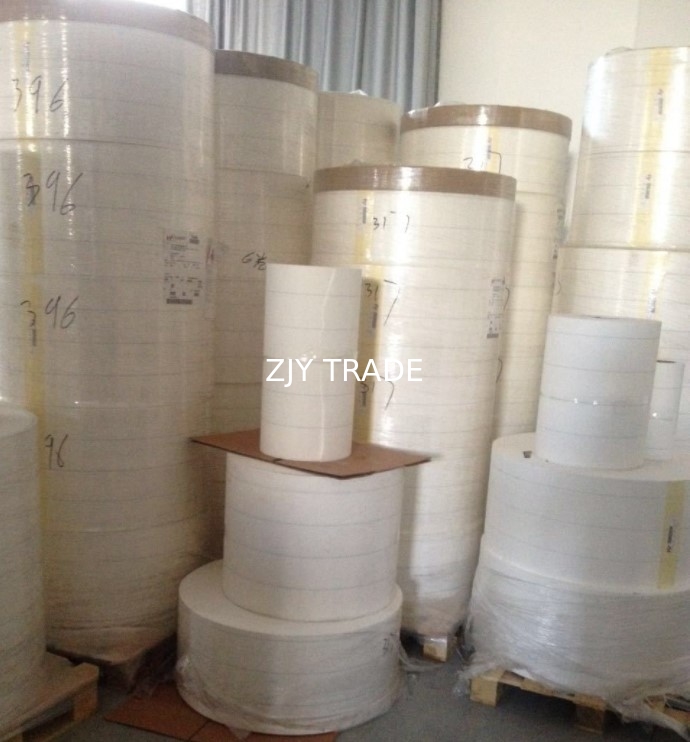

Package
Middle packing:Kraft paper for both ends
Outer packing:Plastic film
Roll packed on pallet
