| Place of Origin: | China |
|---|---|
| Brand Name: | Local brand |
| Certification: | ISO |
| Model Number: | V Bank HEPA Filter |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | carton and bubble pack |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100000pcs |
| Structure Type: | V BANK HEPA FILTER | Efficiency: | H13,H14 |
|---|---|---|---|
| Recommended Final Pressure: | 600Pa | Temperature: | Under 70 Degree |
| Frame: | Aluminum Sheet, Galvanized Steel Sheet,ABS Plastic | Separator: | Hot Melt |
| Media: | Glass Fiber | Gasket: | CR EVA EDPM PU |
| Sealant: | Polyurethane | ||
| High Light: | Glassfiber V Type Filter,HEPA V Type Filter,Air Conditioning V Bank Air Filters |
||

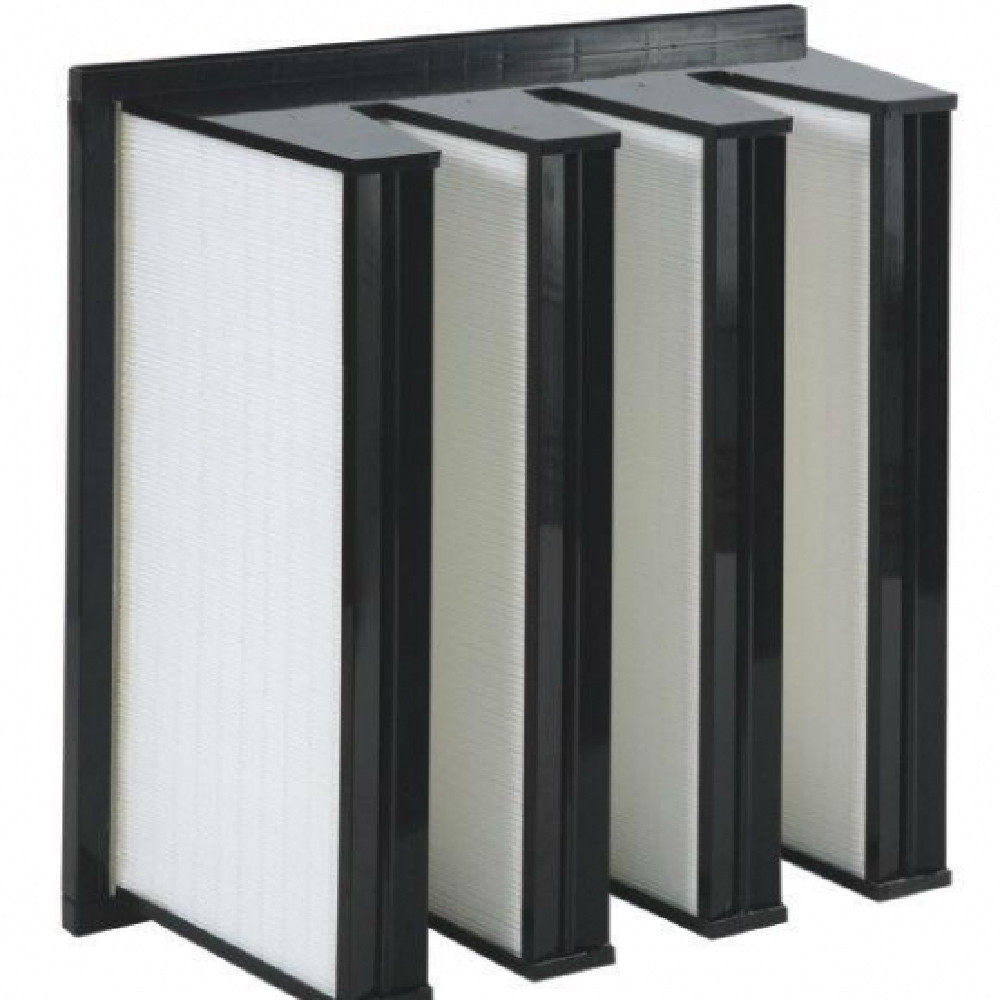

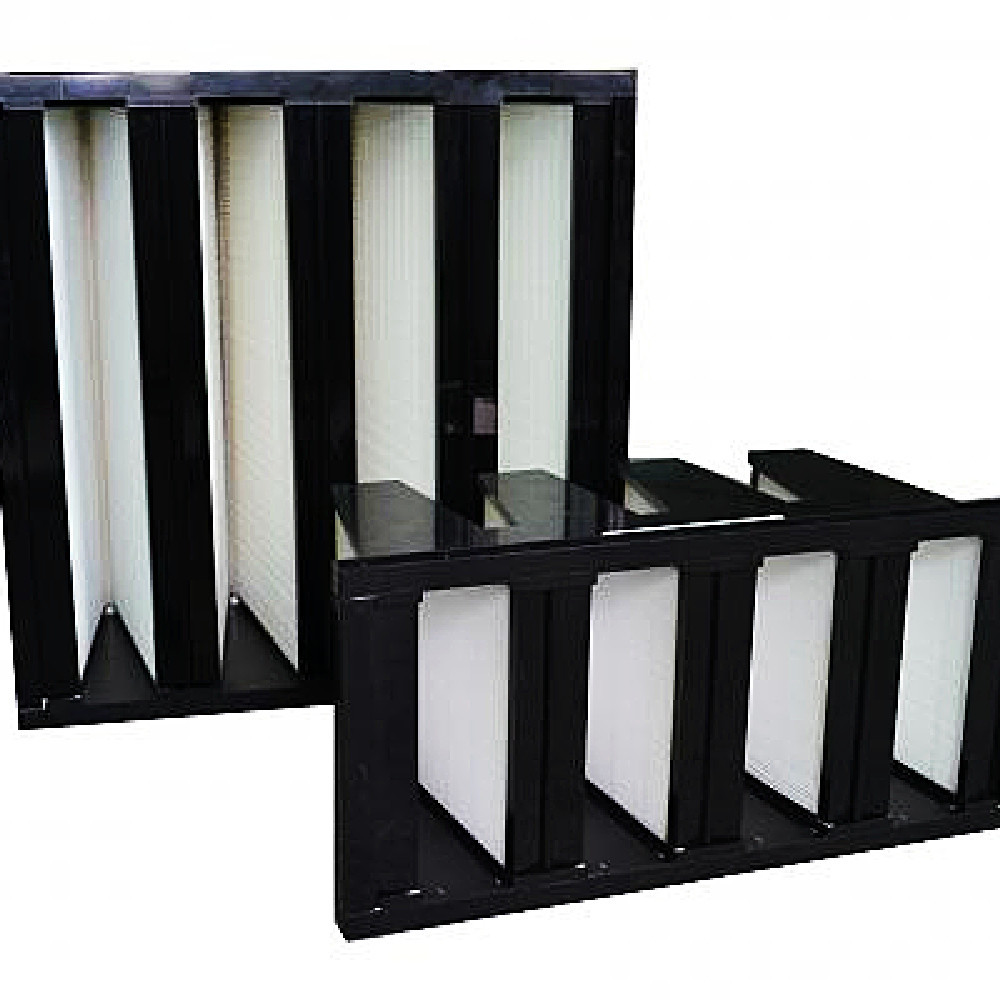

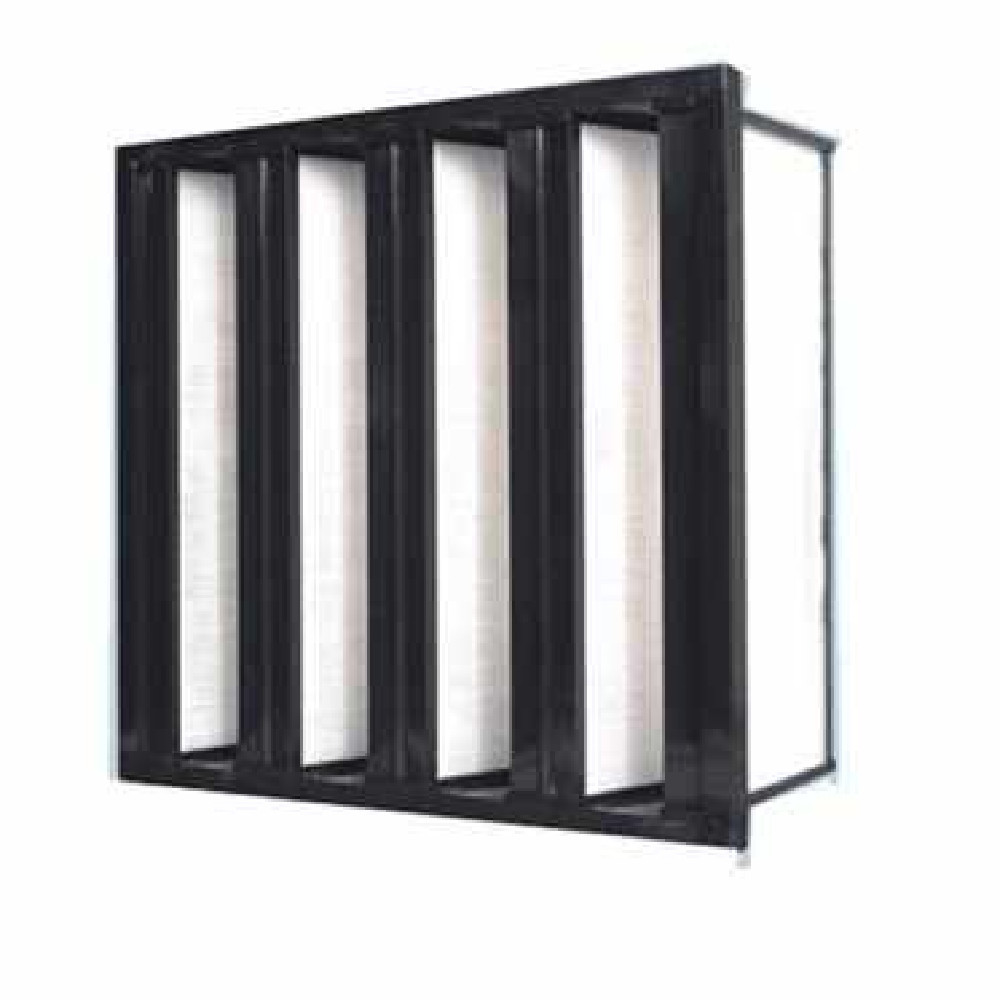

V Bank HEPA Filter Air HVAC Filter for Air Conditioning and Air Heating Ventilation
Product Description:
V-Type filters, also be called as v cell filters, rigid pocket filters, are the most important part in clean room ventilation systems.
As the pre-filters before HEPA filters, the role and function are the same as pocket filters, but v bank filters offer more stable performance.
The 'V' design provides significantly more surface area than pocket filters, reducing the overall pressure drop in the system and extending HEPA filters life.
To enlarge the service life of HEPA filters, V bank filters need to remove most of the 0.5um particles with efficiency from 75-99%.
Materials and operating conditions:
| Frame material | Galvanized steel;Stainless steel;Plastic |
| Medium | Micro glassfiber |
| Gasket | EPDM;Endless PU foam |
| Max.working temperature | 80ºC. 120ºC. 150ºC. |
| Max.working Rel.Humidity | 90% |
