Synthetic Fiber Pocket Air Filter EPDM Gasket M6 With Clapboard

Basic Information

Place of Origin:	CHINA
Brand Name:	Neutral or Local
Certification:	CAN/ULC S111
Model Number:	B06GS-490592600-6

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	PP Bag with Cartoon outside
Delivery Time:	5-8 working days
Payment Terms:	L/C, T/T
Supply Ability:	10000pcs/month

Get Best Price Contact Now

Detail Information

Structural Type:	Bag Filter, Pocket Filter	Filtration Grade:	Pre Filter
Efficiency:	M6	Bag Material:	Synthetic Fiber
Specification:	490592600	Pocket No.:	6
Air Flow/Initial Pressure (m3/h/Pa ±15%）:	2800/55	Area (m2):	4.31
High Light:	Synthetic Fiber Pocket Air Filter , EPDM Pocket Air Filter , Clapboard Air Pocket Filter

Product Description

M6 Non-woven Dust Collector Pocket Air Filter with clapboard

Product Description:

This pocket air filter is made with synthetic fiber with increasing density.

It adopts seamless welding technology for good airtightness and binding strength.

It can be used as a pre-filter where high cleanliness is required to capture big particles in front of the main filters; also in a main ventilation filter system in the industrial workshop or commercial buildings.

Material:

Outer Frame	Extruded aluminum / Galvanized steel sheet
Optional thickness	20mm/21mm/25mm/46mm
Inner Frame	Galvanized steel sheet
Media	Synthetic fiber
Gasket	CR/EVA/EPDM

Features:

Easy to install
Large filtration area
Low pressure
High structural strength
Strong supporting frame

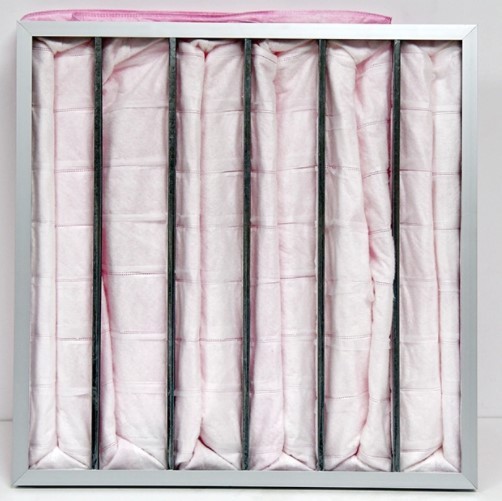

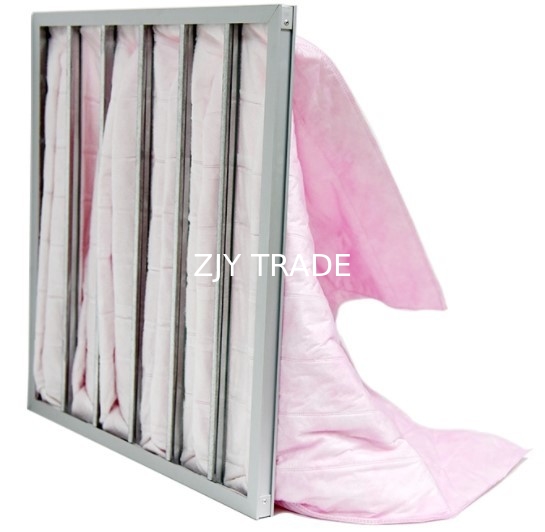

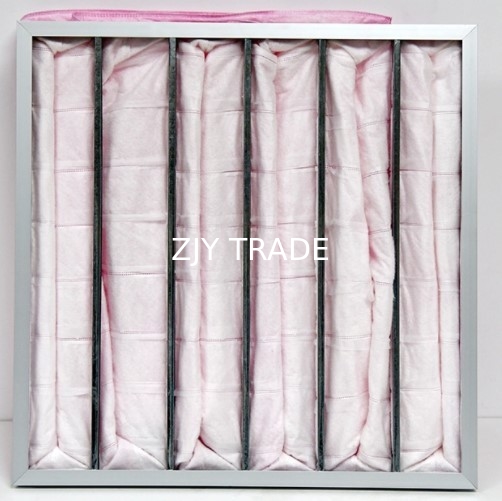

Detailed Pictures:

Synthetic Fiber Pocket Air Filter EPDM Gasket M6 With Clapboard 0
