| Place of Origin: | China |
|---|---|
| Brand Name: | OE or Neutral |
| Model Number: | PF-F |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | PP bag with carton boxes |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1,000,000pcs/year |
| Filter Material: | Glass Fiber | Filtration Efficiency: | F8 |
|---|---|---|---|
| Structure: | Pocket Filter | Recommended Final Pressure: | 600Pa |
| Temperature: | ≤90°C | Humidity: | 90%RH |
| High Light: | F8 Pocket Type Air Filters,Fiberglass Pocket Type Air Filters,Galvanized Air Conditioning Bag Filter |
||

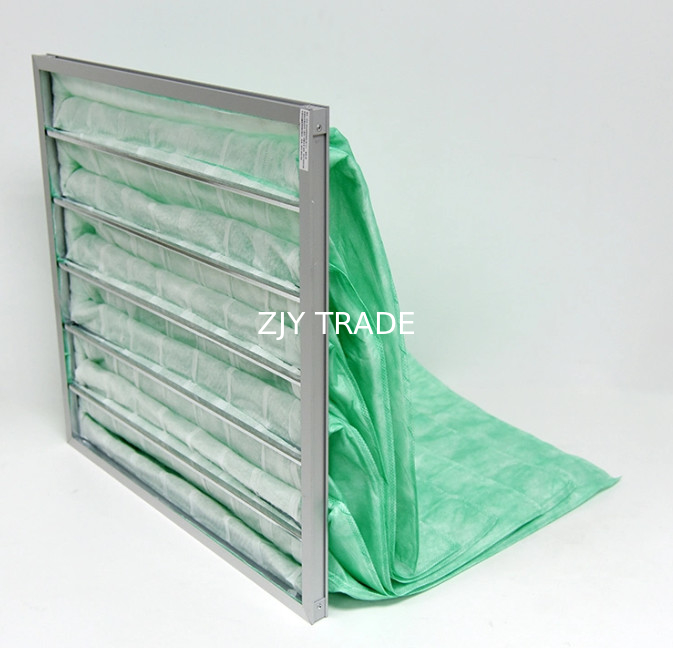

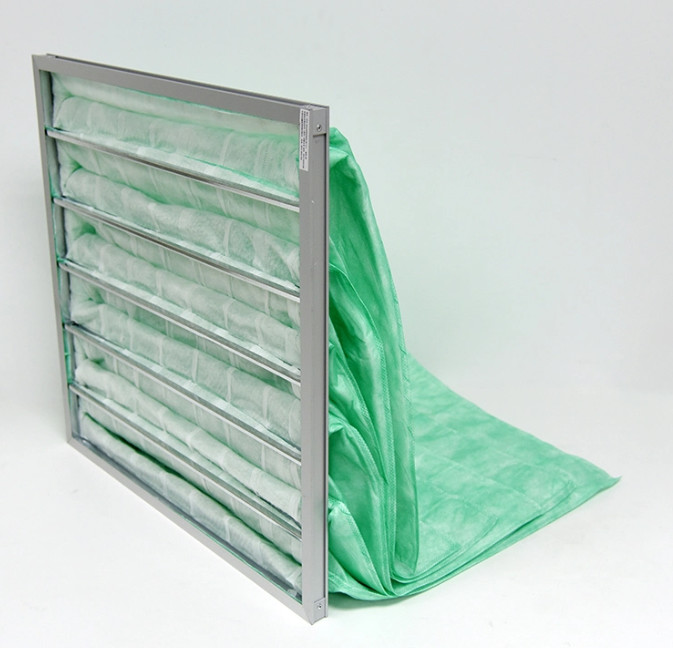

Galvanized Frame F8 Fiberglass Pocket Air Filter
Fiberglass pocket air filter, widly used in central air conditioning system, pharmaceuticals, hospitals and food industries.
Dimensions of the filter can be customized.
|
Size (WxHxD) mm |
Efficiency EN779 |
Pocket Nos. |
Airflow/Initial Pressure m3/h/Pa (±15%) |
Area m2 |
|---|---|---|---|---|
| 592x592x600 | F8 | 8 | 3400/165 | 6.40 |
| 490x592x600 | F8 | 6 | 2800/165 | 4.14 |
| 287x592x600 | F8 | 4 | 1700/165 | 3.13 |
| 592x592x600 | F8 | 6 | 3400/185 | 4.97 |
| Frame | Extruded aluminum ·Galvanized stel sheet |
| Optional thickness | 20mm, 21mm, 25mm,46mm |
| Inner frame | Galvanized steel sheet |
| Media | Glass fiber |
| Gasket | CR,EVA,EPDM |
