| Place of Origin: | China |
|---|---|
| Brand Name: | OE or Neutral |
| Model Number: | PF-F |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | PP Bag with Cartoon Outside |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1,000,000pcs/year |
| Structure: | Pocket Filter | Filter Media: | Synthetic Fiber |
|---|---|---|---|
| Frame Materail: | Extruded Aluminum | Efficiency: | M5 |
| Size: | 592x592x600 | Pocket No.: | 8 |
| Reccomended Final Pressure: | 450Pa | Temperature / Humidity: | ≤70℃/100RH |
| High Light: | Practical Pocket Air Filter,Synthetic Pocket Air Filter,450Pa Synthetic Pocket Filter |
||

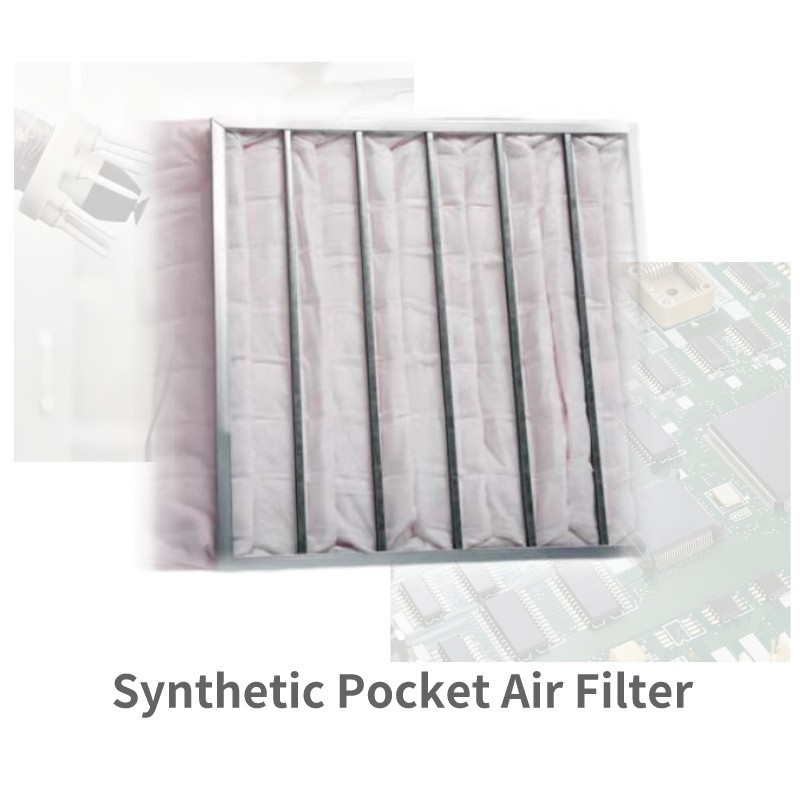

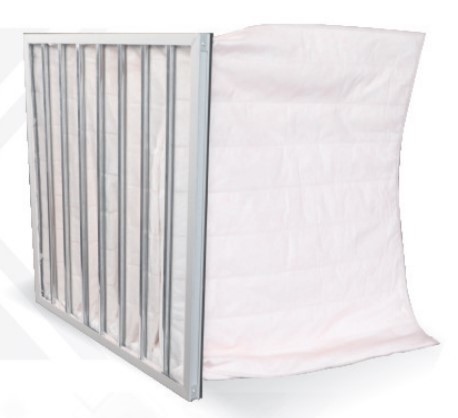

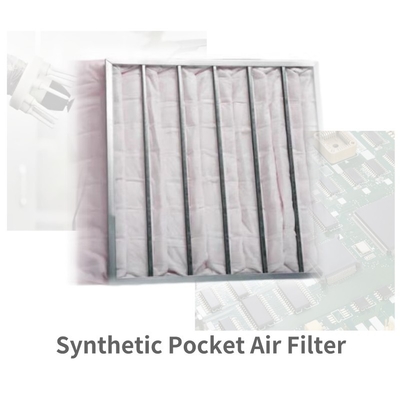

F5/M5 Synthetic Pre Filtration Pocket Air Filter
This pre filtration bag filter is made with gradually increasing density synthetic filter media by applying the seamless welding technology, this ensures a finished good of low initial pressure drop and steady air filtration efficiency at the same time.
Dimensions of the filter can be customized.
|
Size (WxHxD) mm |
Efficiency EN779 |
Pocket Nos. |
Airflow/Initial Pressure m3/h/Pa (±15%) |
Area m2 |
|---|---|---|---|---|
| 592x592x600 | M5 | 8 | 3400/50 | 6.4 |
| Frame | Extruded aluminum Galvanized steel sheet |
|---|---|
| Optional thickness | 20mm,21mm,25mm,46mm |
| Inner frame | Galvanized steel sheet |
| Media | Synthetic fiber |
| Gasket | CR,EVA,EPDM |
