| Place of Origin: | China |
|---|---|
| Brand Name: | Local Brand |
| Certification: | CAN/ULC S111 |
| Model Number: | pocket air filter |
| Minimum Order Quantity: | 100pcs |
| Price: | usd15-39/pcs |
| Packaging Details: | pallet |
| Delivery Time: | 10 workdays |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pcs/year |
| Frame: | Galvanized Steel | Humidity: | 100% Rh |
|---|---|---|---|
| Gasket: | Cr,EVA,EPDM | Recommended Final Pressure Drop: | 450 PA |
| Optional Thickness: | 20mm,21mm,25mm,46mm | Transport Package: | Pallet |
| Production Capacity: | 100000PCS | Specification: | 592*592*580 |
| High Light: | Ultrasonic Pocket Air Filter,Cleanroom Pocket Air Filter,Glass Fiber Air Filter Pocket |
||

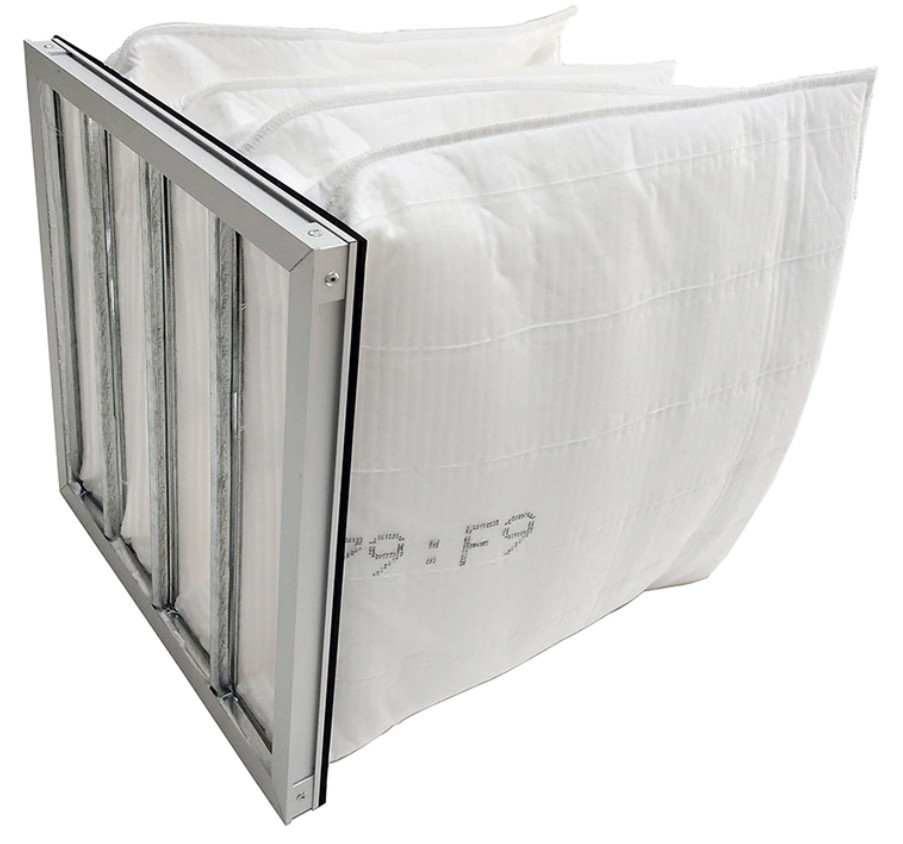

Glass Fiber Pocket Air Filter Gas Turbine Intake Filter Primary Air Pocket Filter for Gas Turbine
Description:
Pocket Bag Air Filters are typically used as a secondary or final filter used after (behind) a pleated filter. Bag air filters, often referred to as bag filters and pocket filters, come in five levels of efficiencies; 40-45%,60-65%, 80-85%,90-95% and above 95%- or MERV 8,11,13,14,and15 ratings.
The filter is made with pieces of media, sealed together to form pockets. Each bag air filter can have a specified number of pockets, whether they be 3 pocket bag filter, or 6 pocket bag filter, the pockets themselves can vary in length. With these combinations of pockets and lengths, many surface areas sizes can be created. Generally, a larger surface area will give you better Dust Holding Capacity (DHC) and longer service life of the filter.
Basic information
| Model NO. | Gas turbine filter | Max Temperature | 70°c |
| Humidity | 100% Rh | Frame | Galvanized Steel |
| Gasket | Cr,EVA,EPDM | Recommended Final Pressure Drop | 450 PA |
| Optional Thickness | 20mm,21mm,25mm,46mm | Structure Type | Pocket Filter |
| Transport Package | Pallet | Specification | 592*592*580 |
| Origin | China | HS Code | 84219990 |
Features:
1. Frame:Galvanized or aluminium alloy or customized material.
2. Easy to install, large filtration area, low pressure, high structural strength, strong supporting frame
3. Glass fiber media
4, Ultrasonic sealed pocket structure
5, Efficiency: M5, M6, F7, F8, F9
6. High dust holding, high efficiency and low pressure drop can effectively filter fine dust and microorganism.
7. Longer service life
8. Meet the demand of different air volume
Specifications:
Frame: Galvanized steel /Aluminium profile/ Stainless steel / Plastic
Media: Synthetic fiber/Glass fiber
Fiber class according to EN779: 2012:F5-F9
Fiber class according to ASHRAE 52.2-2007:MERV8,MERV 11,MERV 13 ,MERV 14,MERV15
Color: Orange / Green / Pink / Yellow / White
Maximum temperature: 70ºC
Application
1. As a pre-filter in the AHU and AC ventilation system to prevent the accumulation of dust within the system.
2. As a pre-filter in a huge size air compressor.
3. As a pre-filter in the AHU and AC ventilation system of a clean room to prolong the service life of secondary
or tertiary filters.
4. As a main filter in the ventilation system of an industrial plant.
5. As a main filter for big particles removal in the AHU or AC ventilation system of a building.
Company Profile
ZJY is a trading company located in Suzhou, next to Shanghai.
For years, we've been an authorized distributor of H&V, Ahlstrom, Lydall, Absolent, Exomist, Indass and other applications in filtration system.
All the filter elements we trade abroad are manufactured with media provided by ourselves.
The advantage of ZJY is to seek the most cost effective and quality guaranteed products for our customers.
We remain at your disposal for any kinds of product you'd like to procure from China.If you have any interesting products, please feel free to let me know,we will provide you the best price and service.
Transport & Payment
F&Q
Q: What is your product range?
A: Our replacement filters cover from Industrial dust collector filter bags/pleated cartridges, HVAC commercial building panels, HEPA filters, Air compressor filters and compressed air purification element, Heavy duty Intake Air filters, EDM wire cutting filters and so on.
Q: Is customized filter or OEM available?
A: Yes, we need your detailed application description and required filter specifications.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build new molds with molding fee charged.
Q: What's your terms of packing?
A: Generally, we pack our goods in neutral boxes, PE membranes + carton cases. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q: What's the terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balancing.
Q: What's your terms of delivery?
A: EXW/FOB/CIF. Customer indicated forwarders or our own agents.
Q: How about your production lead time?
A: Generally, within MOQ quantity it takes 5-7 working days after receiving your advanced payment. The specific delivery time depends on models and the quantity of your order, which should be checked with our planners.
Q: What's your sample policy?
A: We can supply 1~2 samples if we have stock, but the customers have to pay 100% sample cost and the courier cost in advance, and we will refund sample cost in your bulk orders.
