| Place of Origin: | China |
|---|---|
| Brand Name: | OE or Neutral |
| Model Number: | PF-P |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | PP bag with carton boxes |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1,000,000pcs/year |
| Filter Material: | Polyester | Filtration Efficiency: | G3/G4 |
|---|---|---|---|
| Structure: | Pocket Filter | Recommended Final Pressure: | 250Pa |
| Temperature: | ≤70°C | Humidity: | 100%RH |
| High Light: | Polyester Pocket Bag Air Filters,Multipurpose Pocket Bag Air Filters,Practical Pocket Filter Bag |
||

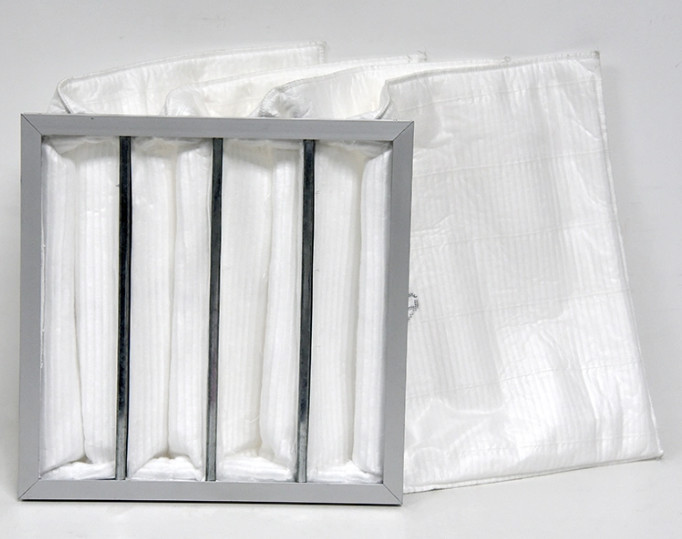

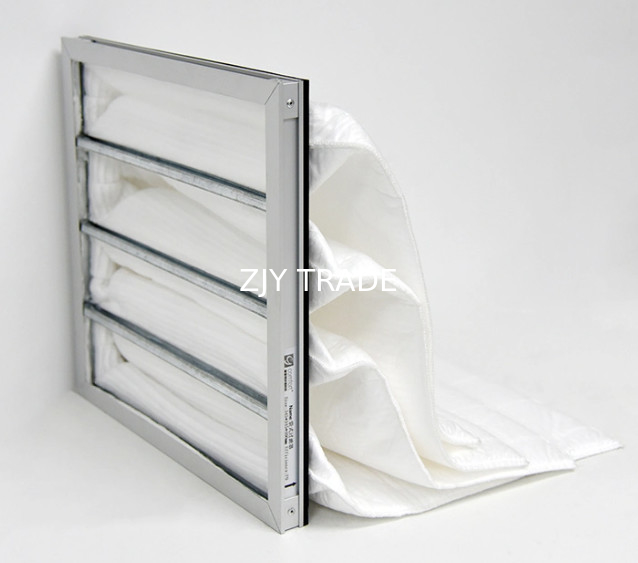

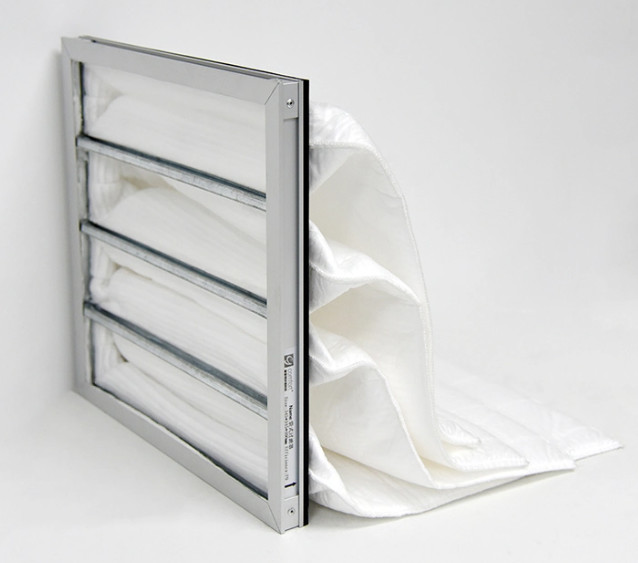

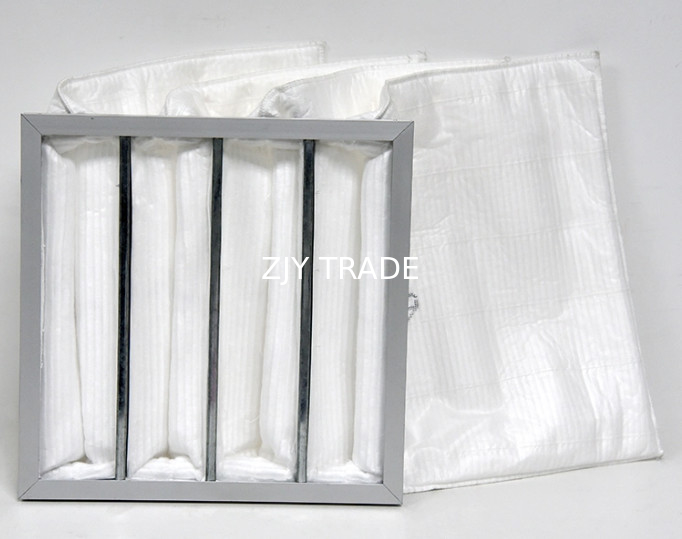

G3/G4 Polyester Coarse Pocket Air Filter
Polyester pocket air filter, used as pre-filtration of general ventilation and air conditioning system
Dimensions and specifications of the filter can be customized.
|
Size (WxHxD) mm |
Efficiency EN779 |
Pocket Nos. |
Airflow/Initial Pressure m3/h/Pa (±15%) |
Area m2 |
|---|---|---|---|---|
| 592x592x580 | G3 | 6 | 3400/40 | 4.76 |
| 592x592x580 | G4 | 6 | 3400/45 | 4.76 |
| Frame | Extruded aluminum ·Galvanized steel sheet |
| Optional thickness | 20mm, 21mm, 25mm,46mm |
| Media | Polyester |
| Gasket | CR,EVA,EPDM |
