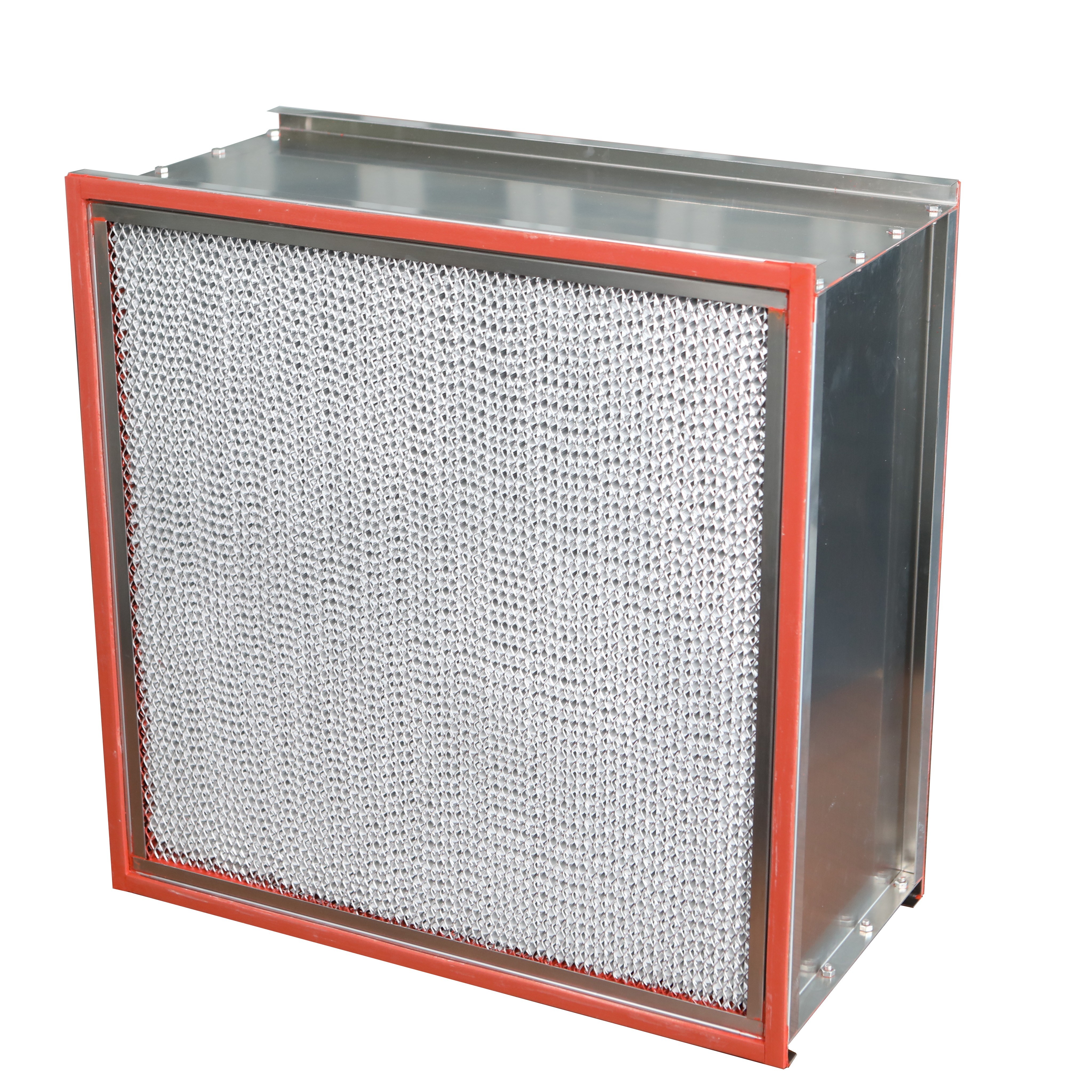

Glass Fiber HEPA Separator Filter Element Anticorrosive Stainless Steel

Basic Information
Place of Origin: china
Brand Name: Comfort Air
Model Number: High Temperature Filter
Minimum Order Quantity: 1 piece
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 10000 pcs /year
Detail Information
Frame: Galvanized Steel Sheet Stainless Steel Sheet Separator: Aluminum Foil
Media: Glass Fiber Gasket: High Temperature Silicone Sponge
Sealant: High Temperature Silicone Caulk Fiberglass Pad Face Guard: Stainless Steel Sheet
High Light:

Glass Fiber Separator Filter Element


Anticorrosive Separator Filter Element


Stainless Steel HEPA Filter Element

Product Description

HT Separator filter high temperature purification equipment special process high temperature air supply system



Production instruction:

Pleated HEPA filter are divided into paper separator high-efficiency filters, aluminum foil separator high-efficiency filters, and high-temperature resistant separator filters. It is used for terminal filtration of various clean rooms, various local purification equipment, and air filtration, paint, and air filtration of medium filters, pharmaceuticals, hospitals, cosmetics, semiconductor electronic precision machinery, food and other industries.
1. Pre-filter for high efficiency filter;
2. Intermediate filter of air conditioning system;
3. Main filters for clean room, commercial and industrial ventilation and air conditioning systems, such as high humidity ventilation and air conditioning systems, variable air ventilation and air conditioning systems, ventilation air conditioning systems with tight installation space, high fire protection requirements or high ventilation temperatures Air Conditioning System


Product Features:
1. The filter material is made of high quality ultra-fine glass fiber filter paper or PP filter paper.
2. sturdy frame material, including aluminum profiles, aluminum plates, galvanized iron, stainless steel and wooden frames, sealing strip polyurethane foam sealant, EVA, EPDM, etc., divided into aluminum partitions and paper partitions, can be loaded with blue, single method Lan, double flange, etc., easy to install.
3. large dust holding capacity, large filtration area, large air volume, high efficiency, high humidity resistance up to 100%, long life
4. Efficiency: F5, F6, F7, F8, F9, H10, H13, H14
5. 100% of all products factory inspection

Glass Fiber HEPA Separator Filter Element Anticorrosive Stainless Steel 0


1. Used in High class purifying equipment;
2. Used as the final filter of purification system and as purification equipments and clean room purification equipments.


Glass Fiber HEPA Separator Filter Element Anticorrosive Stainless Steel 1


Technical Parameters

size(W*H*D)mm Efficiency EN1822 Airflow/InitiaL Pressure Area
305*610*150 H13 500/220 3.28
610*610*150 H13 1000/220 6.42
305*610*220 H13 670/220 5.31
610*610*220 H13 1370/220 10.56
305*610*292 H13 1000/250 7.27
610*610*292 H13 2000/250 14.24
305*610*150 H14 500/260 3.28
610*610*150 H14 1000*260 6.42
305*610*220 H14 670/260 5.31
610*610*220 H14 1340/260 10.56
305*610*292 H14 1000/280 7.27
610*610*292 H14 2000/280 14.24


Description of high temperature filter

Glass Fiber HEPA Separator Filter Element Anticorrosive Stainless Steel 2
