Glassfiber High-Temperature Compact HEPA Air Filter H13 Stainless Steel 304#

Basic Information
Place of Origin: China
Brand Name: Camfil
Model Number: 1FRSI®
Minimum Order Quantity: 100
Price: Negotiable
Payment Terms: L/C, T/T
Detail Information
Frame: Stainless Steel 304# Separators: Aluminum Foil
Media: Special Glass Fiber Paper Gasket: High Temperature Silicon
Sealant: High Temperature Silicon Efficiency: H13(EN1822)≥99.95% @ MPPS
Temperature For Continuous Service: ≤250℃ Humidity: ≤100%RH
Recommended Final Pressure Drop: ≤500Pa Applicationss: Pharmaceutical, Chemistry
Certificatation: EN1822
High Light:

High Temperature HEPA Air Filter


Compact HEPA Air Filter


Stainless Steel 304 HEPA Air Filter

Product Description

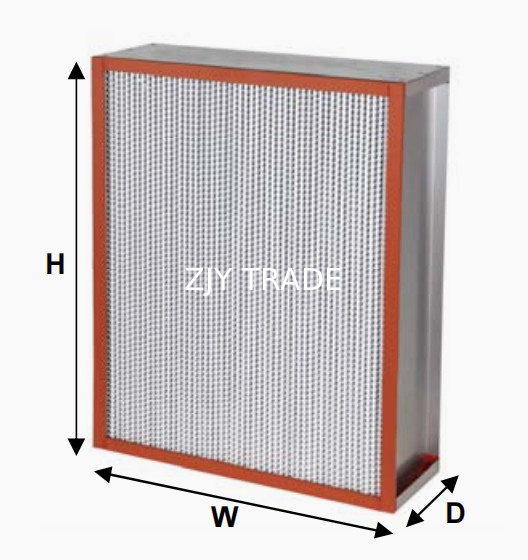

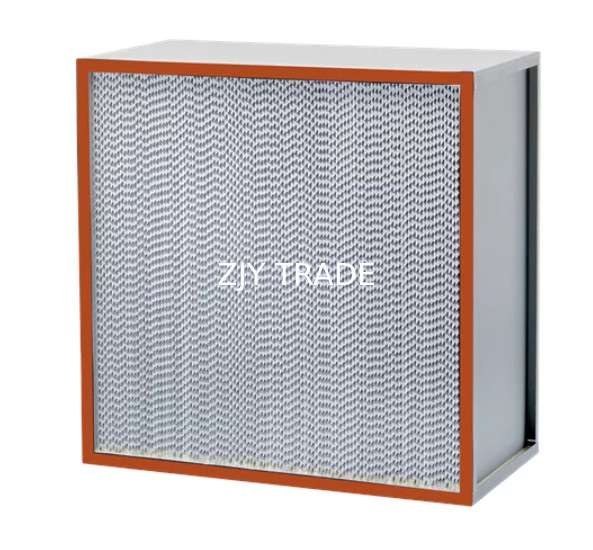

250℃ H13 Stainless Steel 304# Glassfiber High-Temperature Compact HEPA Air Filter

250℃ Heat Resistant Absolute 1FRSI® Series Hepa Air Filter


H13 HEPA filter for applications with high temperature up to 250℃.

Stainless steel frame and aluminum separators give high stability.

Pleates are uniformly separated by corrugated aluminum separators incorporating a hemmed edge to prevent damage to the media.


  • High temperature HEPA Filter
  • High air flow (1,5m/s)
  • Maximum continuous operating temprature 250℃
  • 100% leak-free: individually scan tested at 20℃
  • High mechanical stability



Frame Stainless Steel 304#
Separator Aluminum foil
Media Glass fiber
Gasket Silicon
Sealant Silicon



Glassfiber High-Temperature Compact HEPA Air Filter H13 Stainless Steel 304# 0


Tolerance of pressure drop ±15%

Other dimensions & gasket on request

Type -1SIHT = gasket upstream (standard)
