| Place of Origin: | China |
|---|---|
| Brand Name: | AAF |
| Model Number: | AmAir® HT |
| Minimum Order Quantity: | 100 |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Frame: | Aluminum Alloy | Media: | Glass Fiber Paper |
|---|---|---|---|
| Efficiency: | G4 | Temperature For Continuous Service: | ≤260℃ |
| Dimensions: | 595x592x45/95mm | Certificated: | UL9000 |
| High Light: | Aluminum Alloy Glass Fiber Filter,G4 Glass Fiber Filter,G4 High Temperature Filters |
||

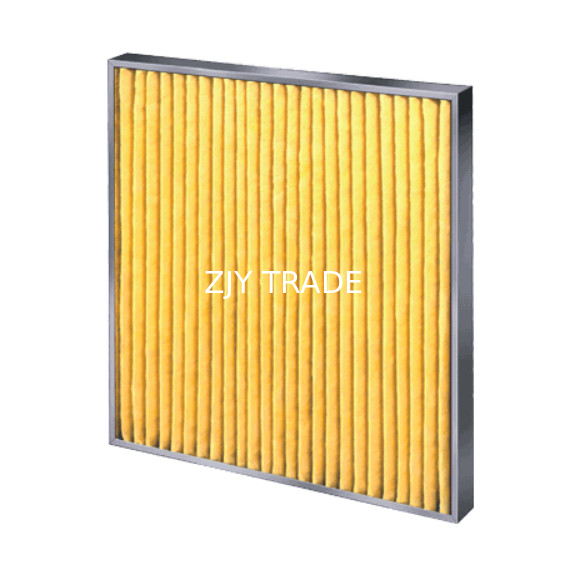

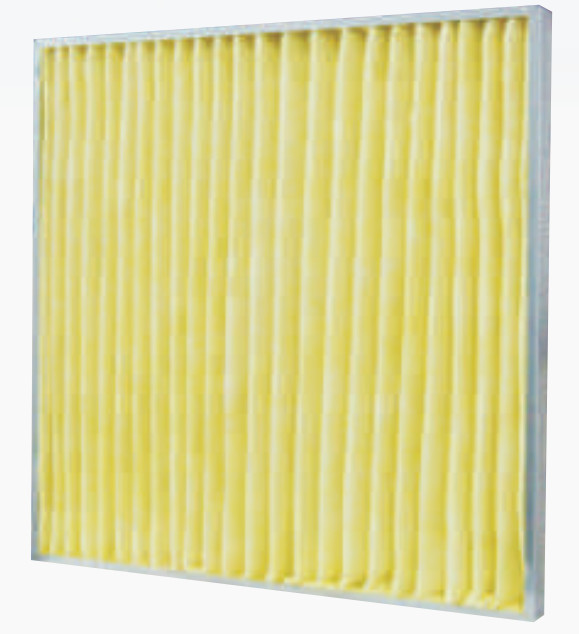

Glass Fiber Panel Filter G4 Ashrae AmAir® HT High Temperature 260℃
Glass Fiber Panel Filter G4 AmAir® HT High Temperature 260℃
AmAir® HT filters are designed for use in high temperature applications upto 260℃.
The media pack is made of a special high loft glass with a glass fiber backing, laminated with a wire mesh grid on the air leaving side.
The media pack is bonded to a sutrdy aluminized steel U-channel frame.
An expanded metal faceguard on the air leaving side retains the media pack at elevated temperatures.
The filter has a gasket on the clean air side. Other excutions are available on request.
| Frame | Aluminum alloy |
| Media | Glass fiber |
| General Operating Temperature | <250℃ |
| Max. Operating Temperature | 260℃ |
