| Place of Origin: | China |
|---|---|
| Brand Name: | Comfort |
| Model Number: | Separator Filter |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 100000pcs |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T |
| Structure Type: | Separator Box Filter | Filter Medium: | Fiberglass |
|---|---|---|---|
| Efficiency: | M6/M8 | Temperature Resistance: | 150℃、250℃、300℃、350℃ |
| Recommended Final Pressure: | 500 Pa | HS Code: | 8421999000 |
| High Light: | M6 Deep Pleated HEPA Filter,M8 Deep Pleated HEPA Filter,Fiberglass HEPA Filter Mini Pleat |
||

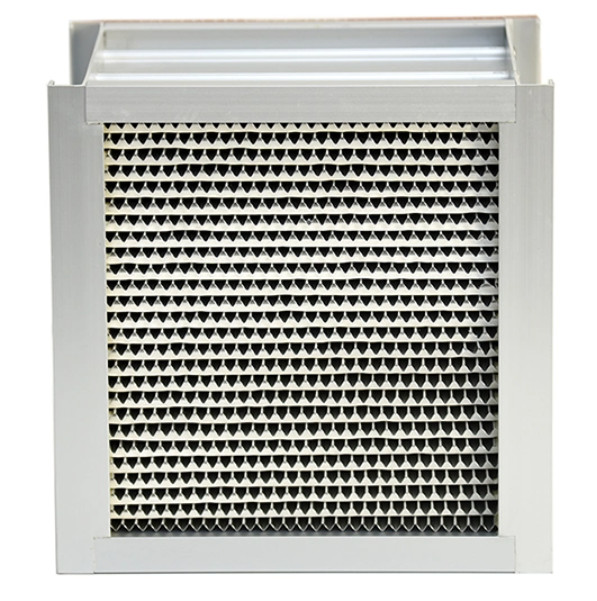

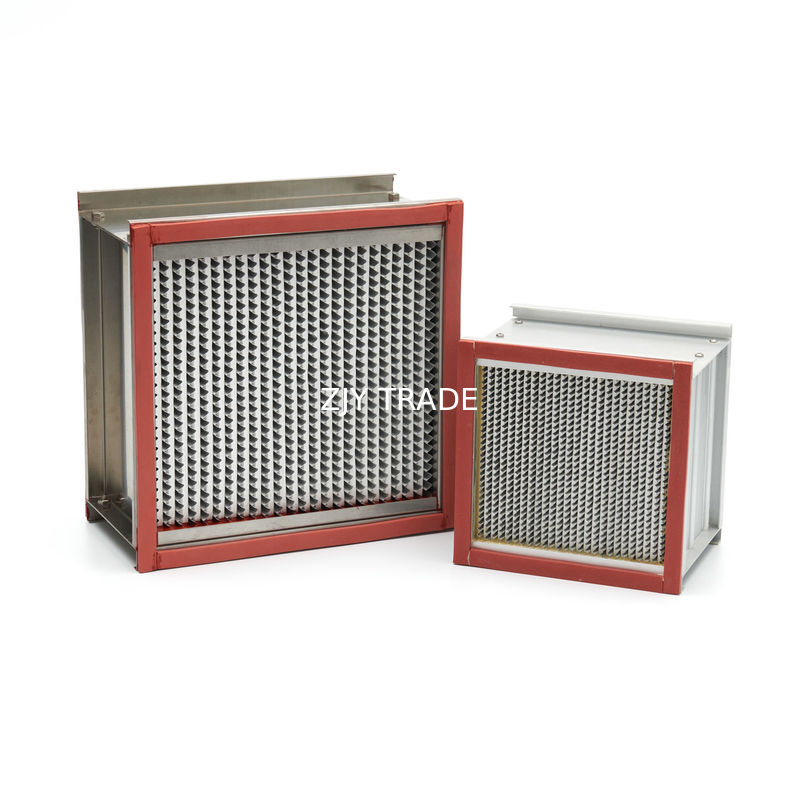

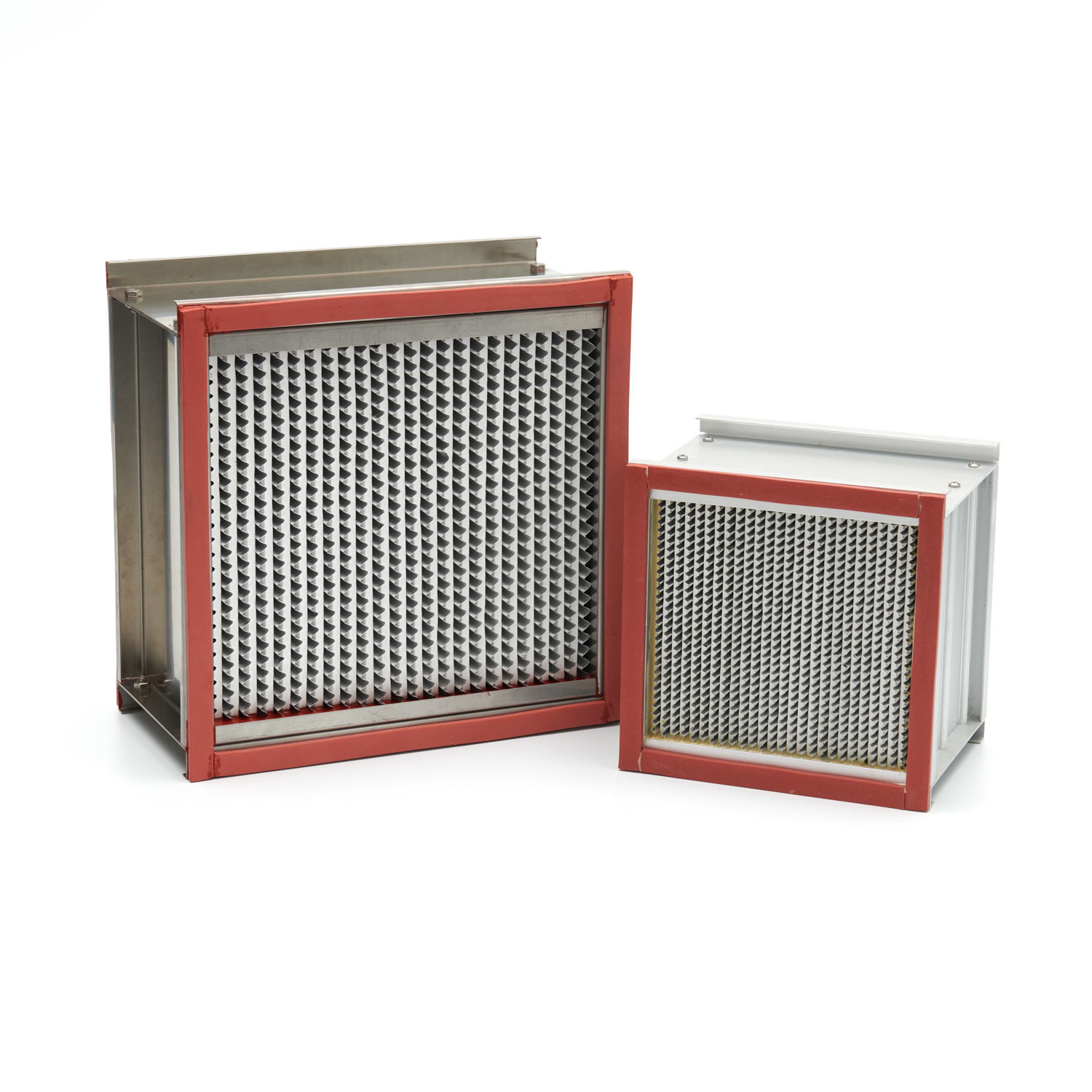

Stainless Steel High-Temperature Resistant M6/M8 Separator Filter Box
The high temperature purfication separator is widely used in process equipement, sterilization tunnels, pharmaceutical and other industries where high temperature air system is required.
We produce all kinds of different normal size High-temperature resistant Separator HEPA Filters.
We have also the ability to manufacture according to customized size and material specifications.
| Model Dimensions (W×H×D) mm |
Filter grade EN 779/EN1822 |
Airflow / pressure drop m³/h / Pa (± 15%) |
Area m2 |
Unit volume m³ |
|---|---|---|---|---|
| 305x610x292 |
M6 |
1700/100 | 6.69 | 0.054 |
| 610x610x292 | M6 | 3400/100 | 13.66 | 0.108 |
| 305x610x292 | F8 | 1700/135 | 6.69 | 0.054 |
| 610x610x292 | F8 | 3400/135 | 13.66 | 0.108 |
| Frame | Galvanized steel sheet, 304 Stainless steel sheet |
| Separator | Aluminum foil |
| Media | Glass Fiber |
| Gasket | High-temperature resistant silicone sponge |
| Sealant | Polyurethane |
| Face Guard | Stainless steel sheet |
